Tandem Glide Pucks

The tandem glide pucks are used on standard MagneMover LITE transport systems with
either aluminum or stainless steel integral rails. Each tandem glide puck can carry up to a 2 kg
[4.4 lb] load.
700-1561-00
1.575±.006
4X 40±0.15
SYMMETRICAL
ABOUT C L
.079
4X R2
[0.882±0.020]
22.40±0.50
(0.3MM TYPICAL WEAR
NOT INCLUDED)
[2.105]
53.46
Weight: 1 kg [2.2 lb]

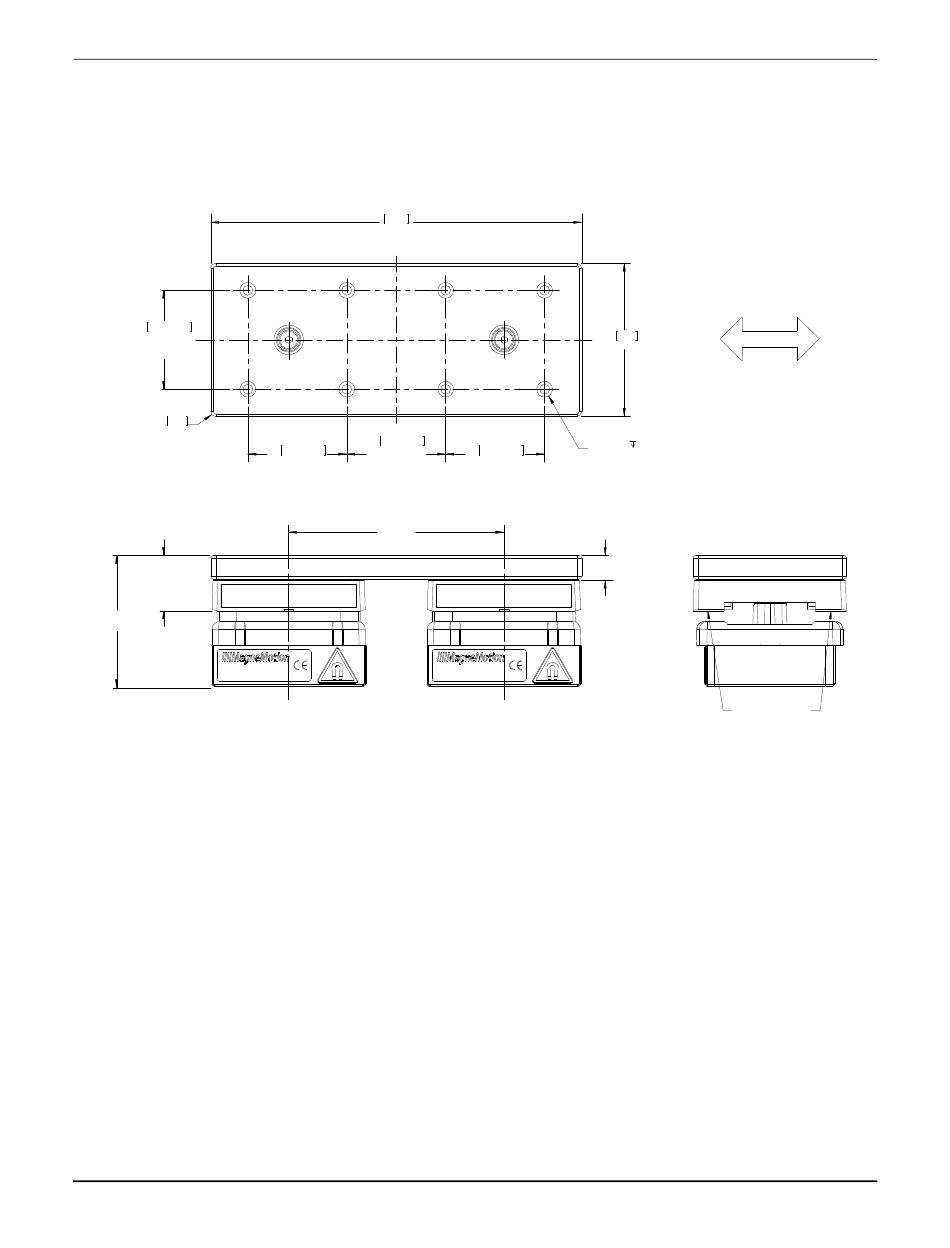

Figure 4-37: Tandem Glide Puck Mechanical Drawing (G5)
Exposed Materials
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
®
• Delrin
• Acetal.
MagneMover LITE User Manual
5.906
150.0
C L
1.575±.006
1.575±.006 2X 40±0.15
2X 40±0.15 SYMMETRICAL
ABOUT C L
C L
[3.425]
87.00
FG150.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
2.441
C L
62.0
8X M4X0.7 6.3 MAX
1.575±.006
(TORQUE SCREWS TO 8 IN-LBS MAX)
2X 40±0.15
C L
[0.394]
10.0
All Dimensions in Millimeters [Inches]
Mechanical Specifications
DIRECTION OF TRAVEL
RUNNING SURFACES
