Maintenance
Repair
Procedure
1. Remove the glide puck from the MagneMover LITE transport system (see
Pucks on page
2. Place the puck on a non-metallic work surface with the magnet array down. Keep the
magnet array at least three feet away from metal objects and tools.
3. Remove the two screws that secure the puck top and center plates to the magnet
assembly. Lift the top and center plates off the magnet assembly as shown in
Figure 7-18
4. If there are O-rings on the threaded standoffs on the magnet assembly, remove the
O-rings and dispose of properly.
OPTIONAL
A. Remove the protective strip from the magnet assembly.
B. Use Isopropyl alcohol to clean the magnet assembly and remove any residue.
404

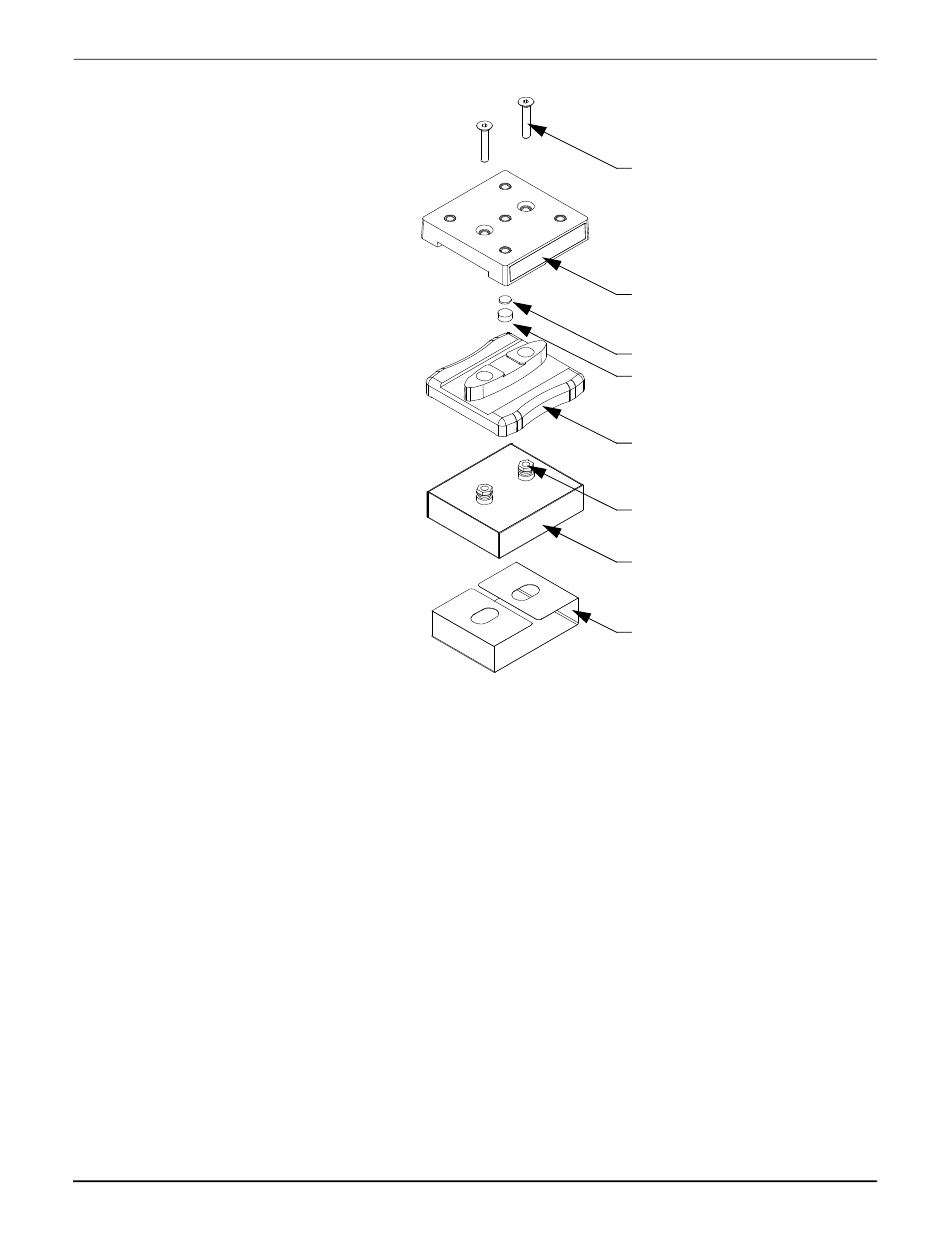

Figure 7-18: Remove Plates from Magnet Assembly
399).
and dispose of properly.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
M4 x 22 Screw
(2X)
Top Plate
Glue Dot
Compliant Spacer
Center Plate
Threaded Standoff
(Ref)
Magnet Assembly
Protective Strip
Replace
