Installation
Transport System Installation

Securing the Transport System

Secure the MagneMover LITE transport system to the floor to help prevent system movement.
Tie-downs for facilities that require earthquake protection are the responsibility of the user.
Two methods are available; secure the feet or using brackets to secure the legs. Additionally,
secure the beam on the MagneMover LITE frame to the equipment it is interfacing with to
help prevent movement at the interface location by securing it directly to the equipment.
NOTICE
Tie-down Using Brackets
Secure the legs of the MagneMover LITE frame to the facility floor to help prevent system
movement by installing tie-down brackets and installing an appropriate fastener.
Leg Stand Assembly
1. Insert two M8 T-nuts and rotate into position in the appropriate channel of the leg.
2. Apply Loctite 243 to two M8 x 16 mm screws and secure the bracket to the leg with
the screws and M8 washers. Tighten enough to secure the bracket while still allowing
it to move vertically.
3. Slide the bracket down until it makes positive contact with the floor and tighten the
M8 screws to 26 N•m [230 in•lb] with a 6 mm Hex bit.
The Loctite must cure for 2 hours at 22° C [72° F] before using the transport system.
4. Secure the bracket to the floor.
252
Make sure that the transport system is properly grounded to
safety ground (earth).

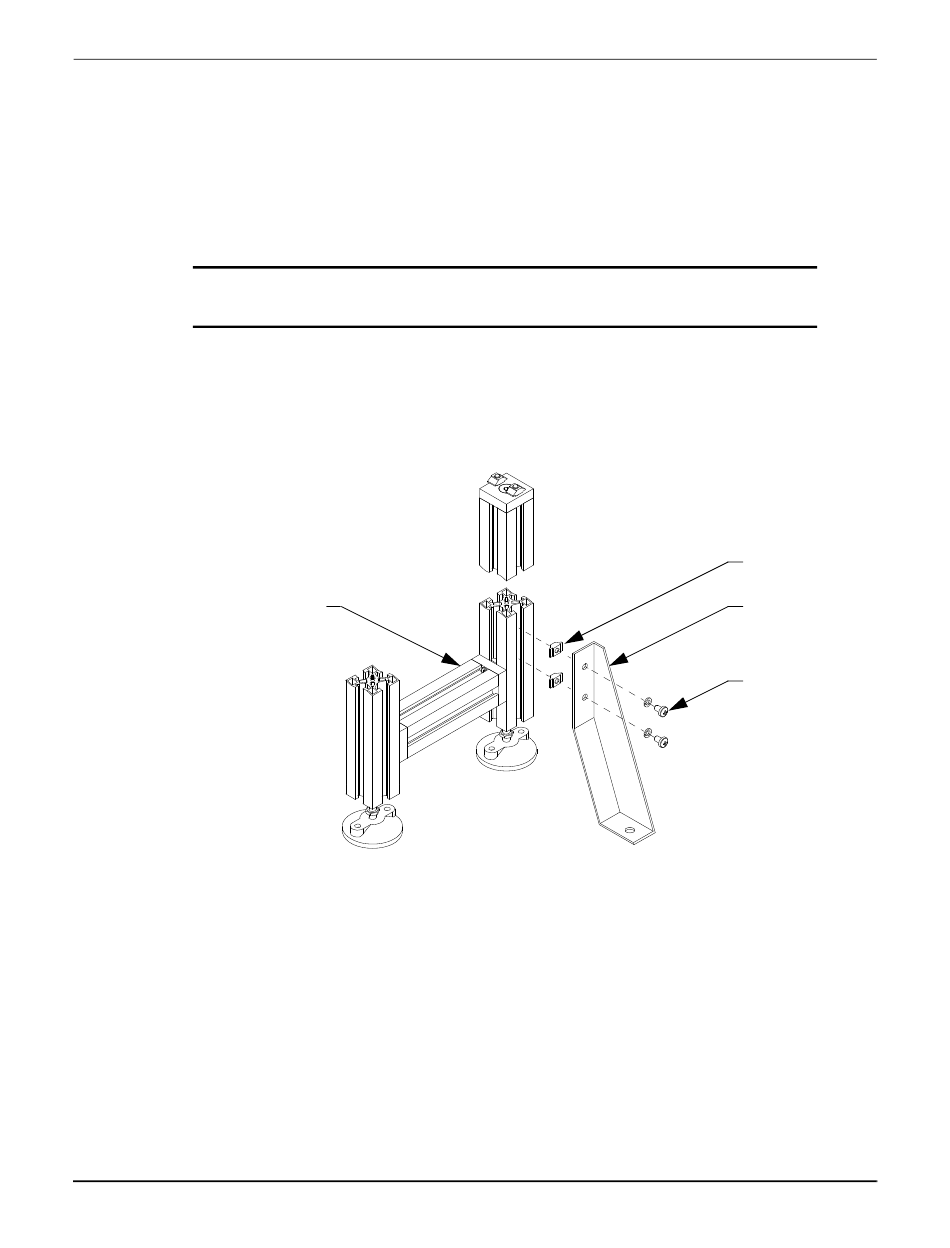

Figure 5-6: Bracket Tie-down
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
M8 T-Nut
(2X)
Bracket
M8 Screw
(2X)
