Additional Connections

The remaining components and connections must be defined on the MM LITE transport sys-
tem layout. The components include power supplies for the motors and network switches for
communication with the node controllers and host controller (see
If node controllers with digital I/O are being used, E-stop buttons, interlocks, and light stacks
can be configured and their locations identified.
Power Supplies – DC power supplies providing +36V DC are required for powering the
MagneMover LITE motors. See
Network Switches – Ethernet switches provide signal routing from the host controller to the
node controllers, between node controllers, and when using Ethernet motors to the motors. All
node controllers must be on the same local area network subnet.
Host Controller – User-supplied controller that runs the application for monitoring and con-
trol of the transport system.
Power Wiring – Identifies the power connections between motors that are connected to the
same power supply.
Qty Description
3 1000 mm motors
6 250 mm motors
5 90° curve motors
2 Right switches
3 Paths
2 Nodes
1 Diverge
1 Merge
2 Node Controller LITEs (NCn)
1 Power Supply (PS1)
1 Network Switch (SW1)
NOTE: Arrows indicate direction of forward motion.

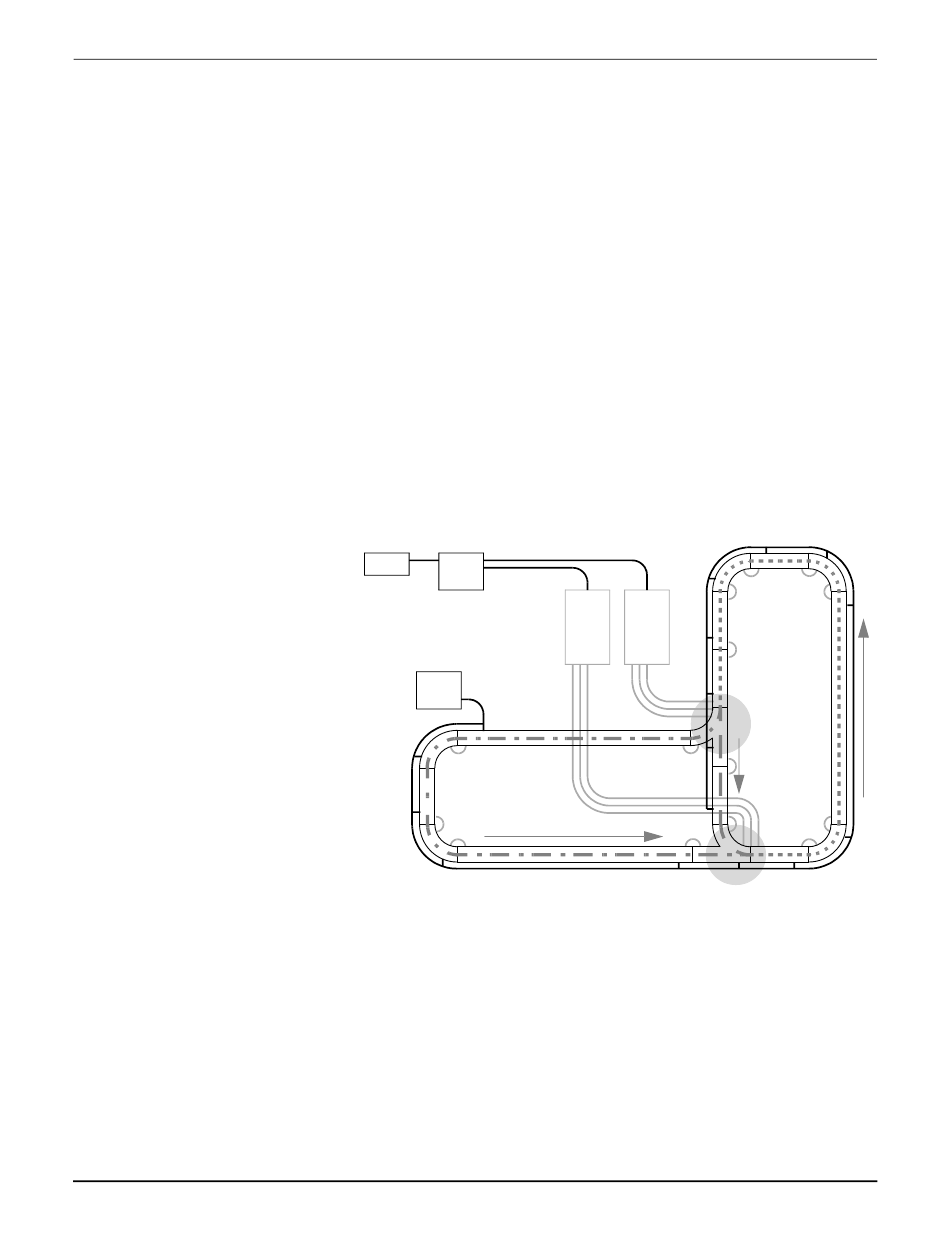

Figure 3-5: Sample MM LITE Transport System Layout Showing Additional Connections
MagneMover LITE User Manual
