Mm R 90° Curve Ethernet Air-Cooled Motor Mechanical Drawing - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

700-1708-43-AC, 700-1708-44-AC
CONNECTOR
(MARKED A1 & A2)
Weight: 1.8 kg [4 lb]

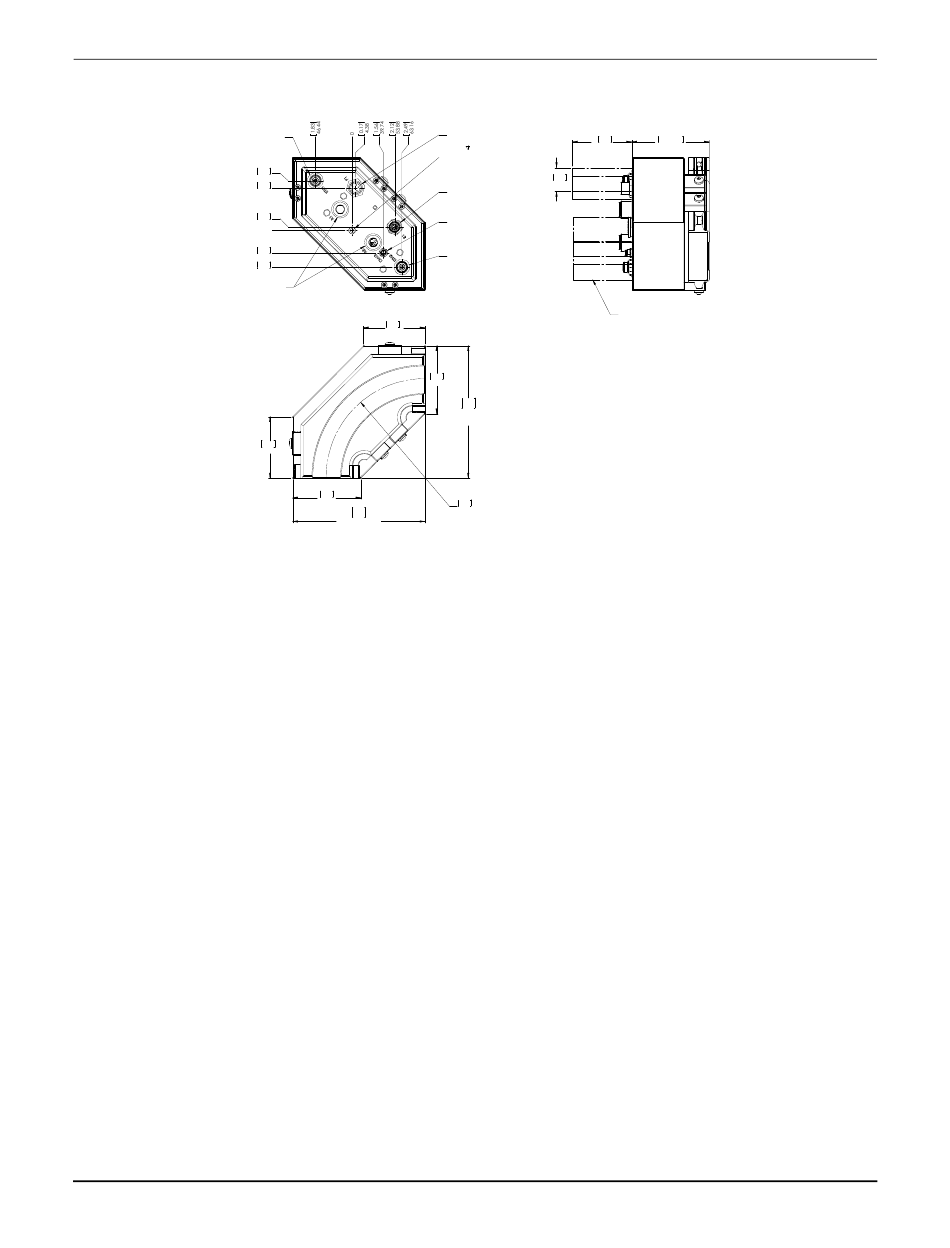

Figure 4-22: 125 mm R 90° Curve Ethernet Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206
See Air-cooled Motors on page 227
Only available with Aluminum rails.
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
®
• Dow Corning Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 316 SS.
MagneMover LITE User Manual
ETHERNET
UPSTREAM
END
2.49
63.16
2.12
53.88
0.17
4.38
0
1.11
28.15
1.83
46.44
AIR PORTS
3.06
77.7
3.40
86.3
3.06
77.7
3.40
86.3
6.61
6.56
168.0
166.5
ENCLOSURE - RAIL
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
POWER CONNECTOR
2.95
5X 75
M6X1.0 7mm
MOUNTING HOLE
MAX ALLOWABLE
TORQUE = 5.5Nm
1.18
5X 30
SYNC CABLE
CONNECTOR
(SYNC MOTOR ONLY)
DIAGNOSTIC
CABLE CONNECTOR
ETHERNET
CONNECTOR
CLEARANCE NEEDED FOR
CONNECTOR &WIRE BEND RADII
6.61
6.56
168.0
166.5
ENCLOSURE - RAIL
4.92
R125
All Dimensions in Millimeters [Inches]
for the electrical specifications.
for the pneumatic specifications.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 303 SS, Nickel plate (air ports).
• Steel, Zinc plate (air port plug).
Mechanical Specifications
3.87±0.03
98.3±0.75
169
