7. Store the removed puck wrapped in bubble-wrap to help protect the puck and to mini-
mize any safety risks. Do not move one puck over, or near, the other puck.
8. Remove the remaining puck from the fixture and store it wrapped in bubble-wrap to
help protect the puck and to minimize any safety risks. Do not move one puck over, or
near, the other puck.
9. Service the pucks as required, see
Pucks on page

Reassemble Tandem Puck Assembly

1. Place the tandem puck linkage plate installation fixture (shown in
flat surface.
2. Place one wheeled puck assembly in the left side of the fixture, see
3. Hold the left wheeled puck in place and place the right wheeled puck in the fixture
keeping it as far away from the left puck as possible as shown in
move one puck over, or near, the other puck.
422
416.
Puck

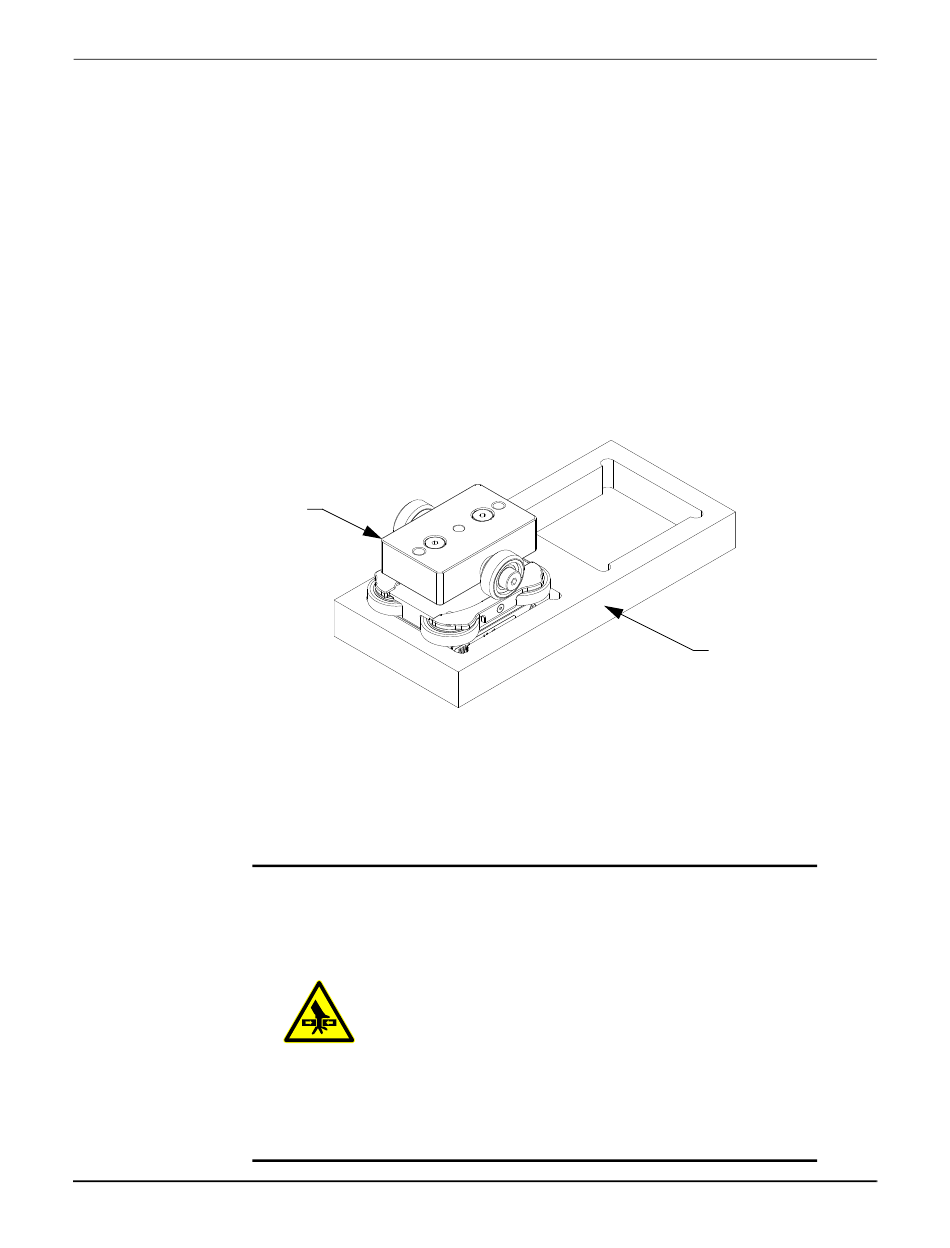

Figure 7-29: Place First Wheeled Puck in Fixture
PINCH/CRUSH HAZARD: Strong magnets in use.
To avoid injury from strong magnetic attractive
forces:
• Handle only one vehicle (puck) or magnet array at
a time.
• Do not place any body parts (for example, fingers)
between a magnet array and any ferrous material
or another magnet array.
• Vehicles (pucks) and magnet arrays not being used
must be secured individually in isolated packag-
ing.
