Installing Motor Mounts on Motors and Switches

Install the motor mounts on the motors before installing the motors in the transport system to
provide ease of installation. This procedure applies to both the standard motor mount bracket,
which is shown in
NOTE: Installation of the motor mounts is the same for motors with rails and for railless
motors.
Straight Motors (typical)
1. Place a motor or switch upside down on a clean work surface.
2. Locate the flat end of the motor mount against the motor at the mounting hole (for
adjustable motor mounts, this is the end with the two nylon tipped set screws). Make
sure that the orientation of the cable chase mounting brackets for curve motors and
switches is correct (see
NOTE: The 1 m motor requires two motor mounts.
3. Secure the motor mount to the motor with an M6 x 20 mm bolt and M6 split lock
washer as shown in
MagneMover LITE User Manual
Figure 5-9, and the adjustable motor mount bracket.
M6 Lock Washer
M6 x 20 mm Bolt
Curve Motors (typical)

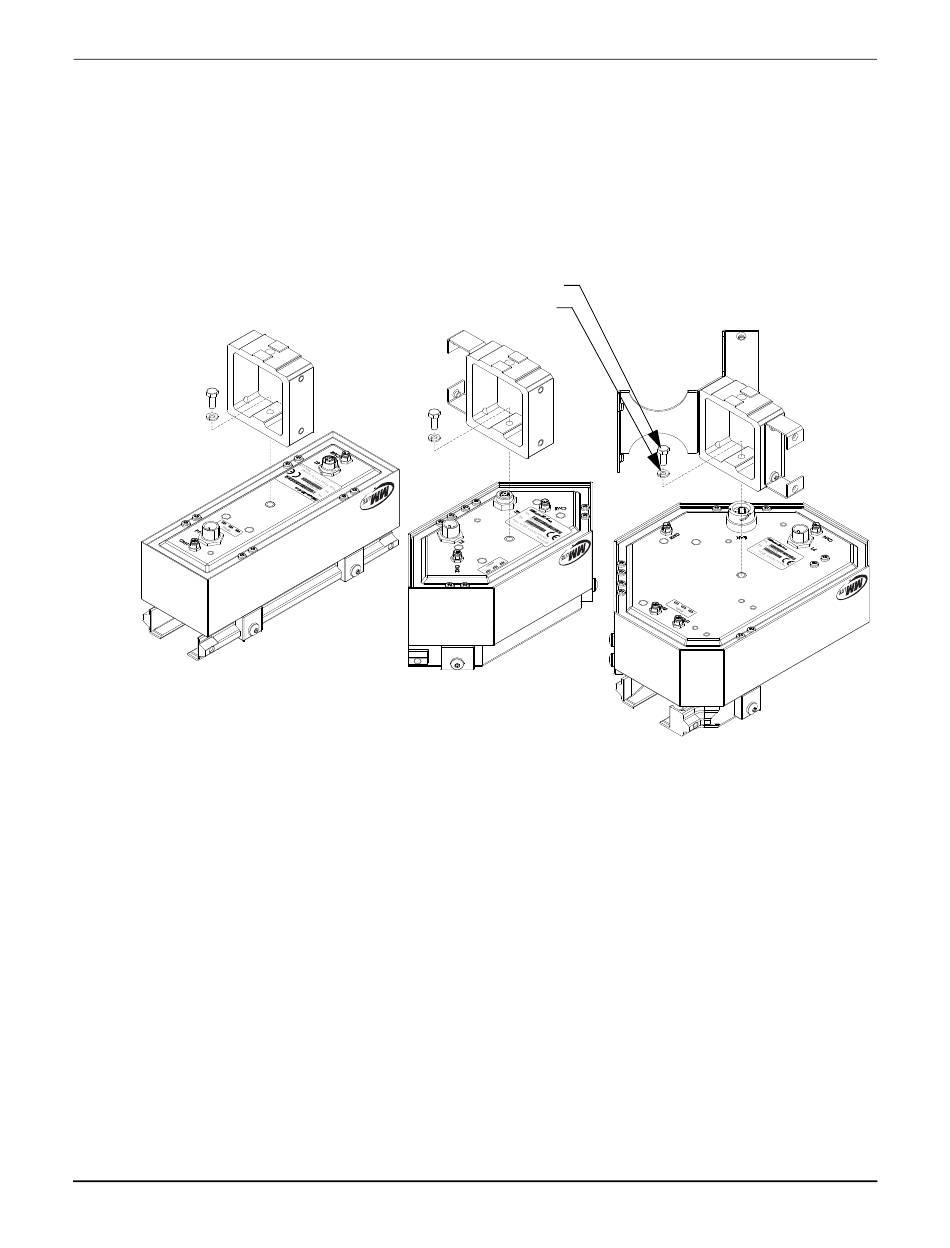

Figure 5-9: Installing Motor Mounts on Motors and Switches
Figure 5-9).
When using adjustable motor mounts, make sure that the locknut on the set
screws is loose.
Figure 5-9 and finger tighten.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Installation
Transport System Installation
Switches (typical)
