Maintenance
Repair
• Thrust Washer 8 mm x 15 mm x 1.5 mm (2X).
• Screw, Shoulder, SS, M6 x 1 x 11 L, 8 Dia x 10 L (2X).
• Washer, Elastomer Gasket, 8 mm X 15 mm (2X).
• Replace Wheeled Puck Wear Surfaces, 2-Wheel Pucks
• Linkage Plate, Thrust Bearing, Puck, ML.
• Fixture, Tandem Linkage Plate Installation.
• 10005809492 – ICD, Wheeled Puck, Assy, Linkage Plate Detail (Ref).
• Metric hex wrench set.
• Torque wrench.
• Loctite 243, Thread locker Anaerobic Adhesive, Blue.
• Isopropyl Alcohol.

Disassemble Tandem Puck Assembly

1. Remove the tandem wheeled puck from the MagneMover LITE transport system (see
Replace Pucks on page
2. Place the tandem puck linkage plate installation fixture (shown in
flat surface.
3. Place the tandem wheeled puck in the fixture as shown in
Tandem Puck
Installation
4. Remove the two M6 shoulder screws and the washers that secure the linkage plate to
the two pucks with a 4 mm hex wrench as shown in
erly.
420
399).
Fixture

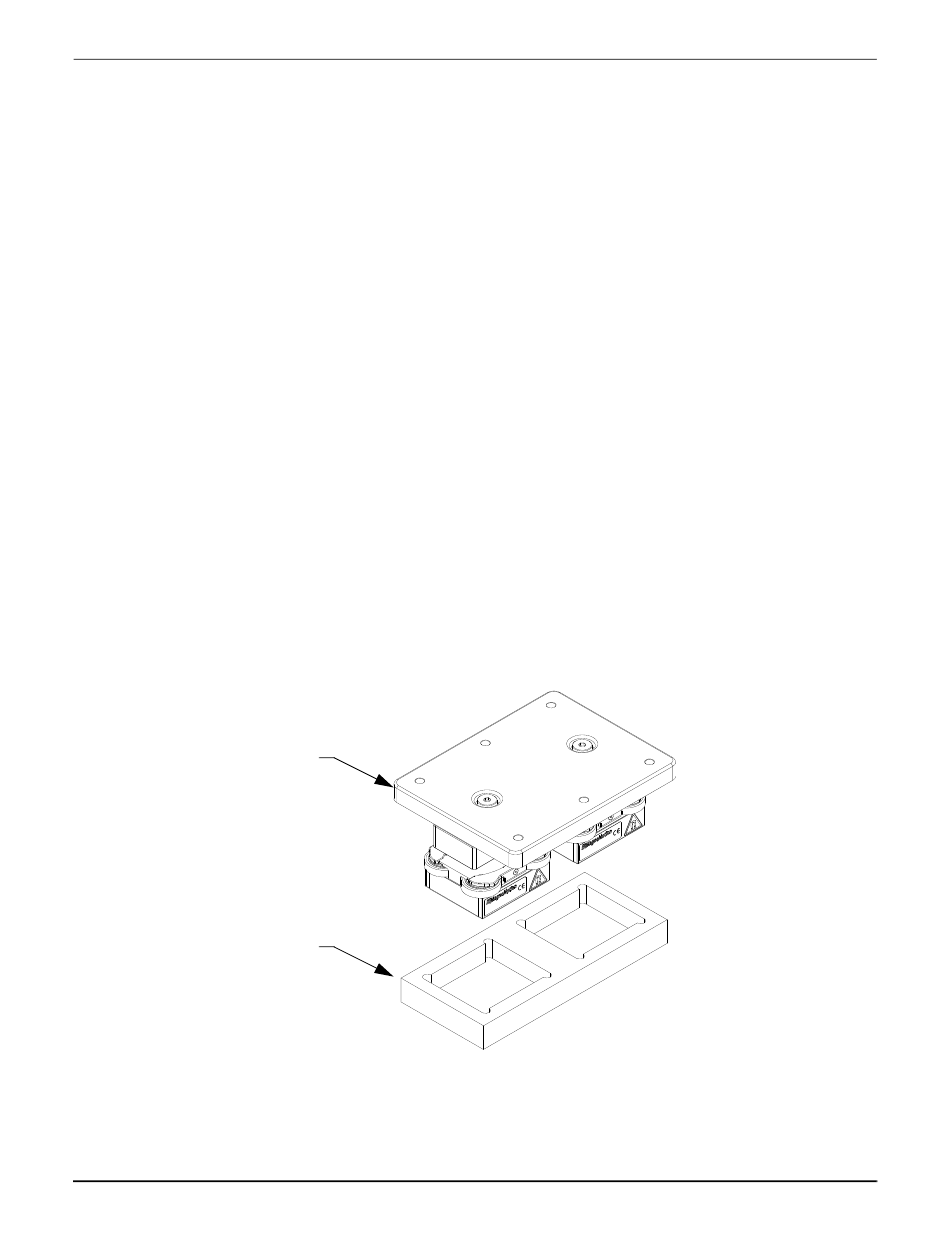

Figure 7-27: Place Tandem Wheeled Puck in Fixture
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
procedure on page 416.
Figure 7-27) on a
Figure 7-27.
Figure 7-28 and dispose of prop-
