Stand System; Stand System Mechanical Drawing - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Specifications and Site Requirements
Mechanical Specifications

Stand System

The stand system consists of extruded aluminum legs and beams for mounting the motors.
The legs are available in different lengths to provide different system heights. The legs are
also available in different configurations, which support different numbers of parallel motors.
200-1991-XX
See Table 4-4
Exposed Materials
• Galvanized Steel.
• Zinc, Electrophoretically coated.
• 6060 T66 Aluminum, Anodized.
• PA6 Nylon.
• Rubber.
180
See Table 4-5

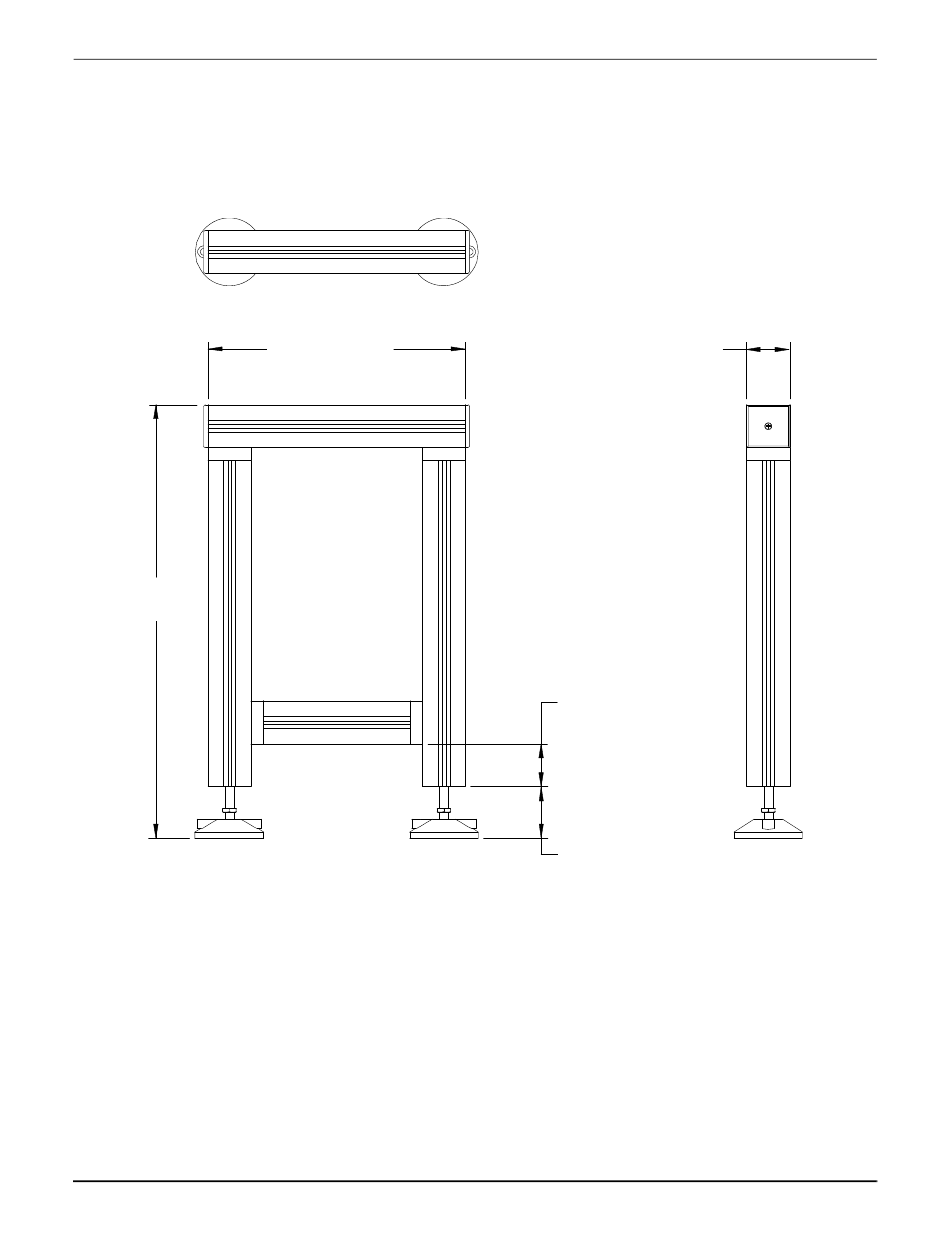

Figure 4-33: Stand System Mechanical Drawing
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
50
50
60 ±12
All Dimensions in Millimeters
MagneMotion
