Precision Locator Option
Actuator Assembly
Locator – 700-1670-XX
Cover – 700-1677-XX
128.6
Weight: 0.9 kg [2.0 lb]

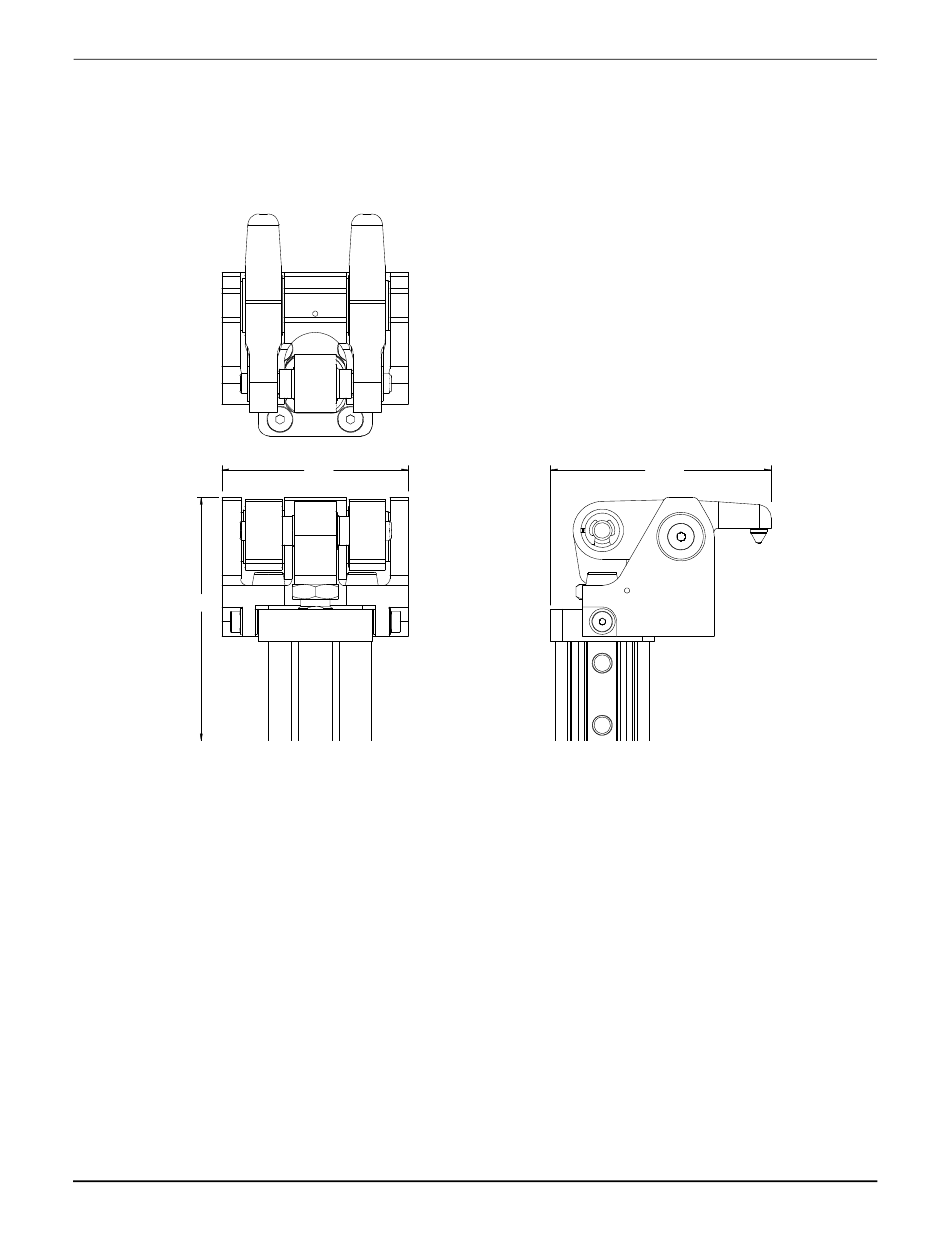

Figure 4-51: Precision Locator Actuator Mechanical Drawing
NOTE: See
Precision Locator on page 225
See
Precision Locator on page 228
Exposed Materials
•
6061-T6 AL, Anodized per MIL-A-8625F, Type II, Class 1, Clear.
•
6061-T6 AL, Anodized per MIL-A-8625F, Type II, Class 2, Blue.
•
18-8 (A2) Hardened Stainless Steel with Thin Dense Chrome plating.
•
UHMW, WHITE
•
SBR Rubber.
•
IGUS iglide® L280.
•
Music Wire.
MagneMover LITE User Manual
90.0
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
Mechanical Specifications
106.5
All Dimensions in Millimeters [inches]
for the electrical specifications.
for the pneumatic specifications.
199
