Installation
Transport System Installation

Installing Cable Chase Covers

The cable chase covers provide protection to all cables that are routed under the motors and
make sure that all cabling remains neatly organized.
Straight Motors
1. Locate a flat cover the same length as the motor against one side of the motor mounts.
2. Install two M5 x 8 mm screws per mount to secure the cover.
3. Locate another cover against the other side of the motor mounts.
4. Install two M5 x 8 mm screws per mount to secure the cover.
5. Tighten the M5 screws to 1.6 N•m [14 in•lb] with a Phillips bit.
• 4 screws per 250 mm motor.
• 8 screws per 1000 mm motor.
278

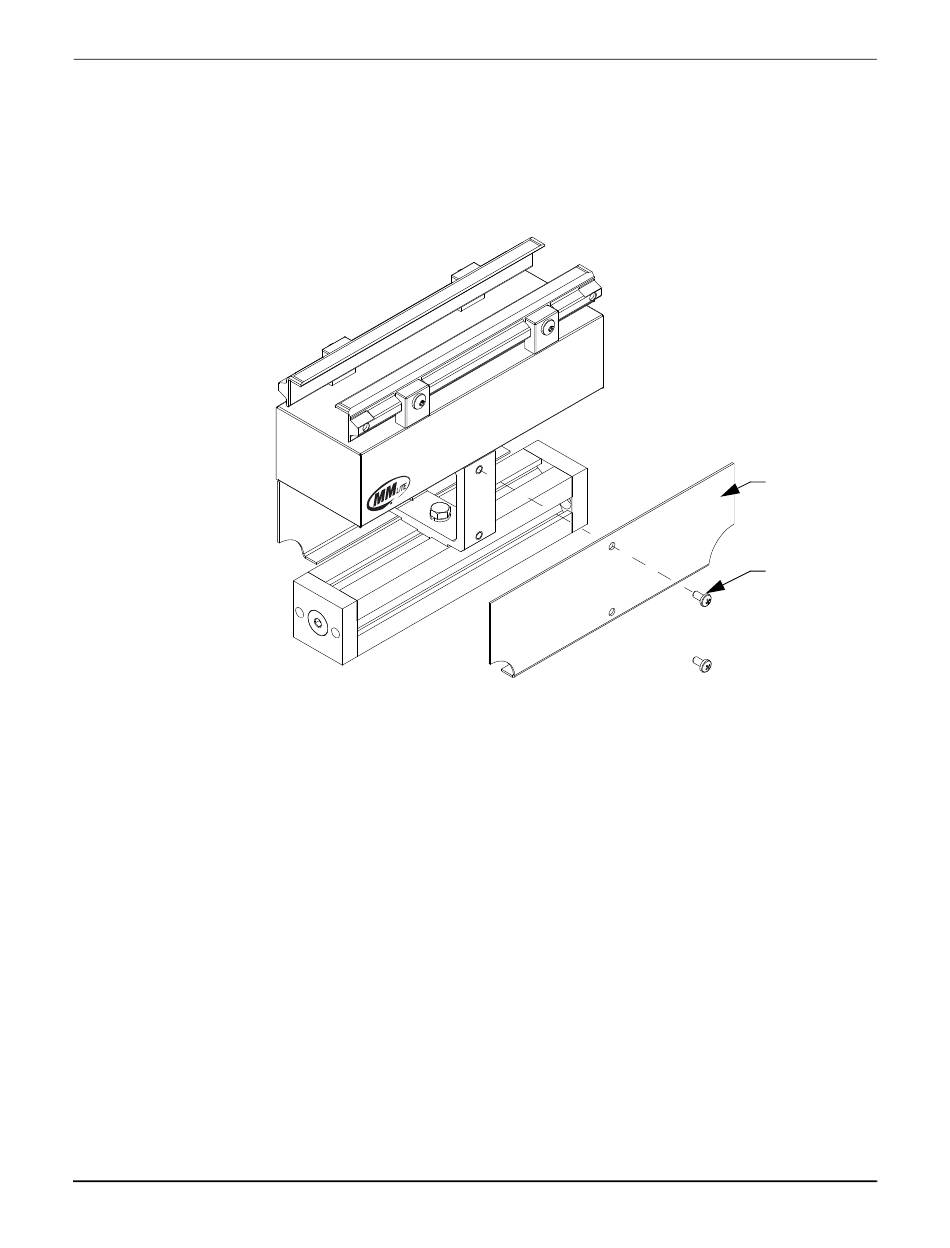

Figure 5-25: Installing Straight Motor Cable Chase Covers
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Cover
(2X)
M5 Screw
(4X)
