Specifications and Site Requirements
Mechanical Specifications
700-1308-22, 700-1308-25
2.95
4X 75
1.18
4X 30
Weight: 1.9 kg [4.2 lb]

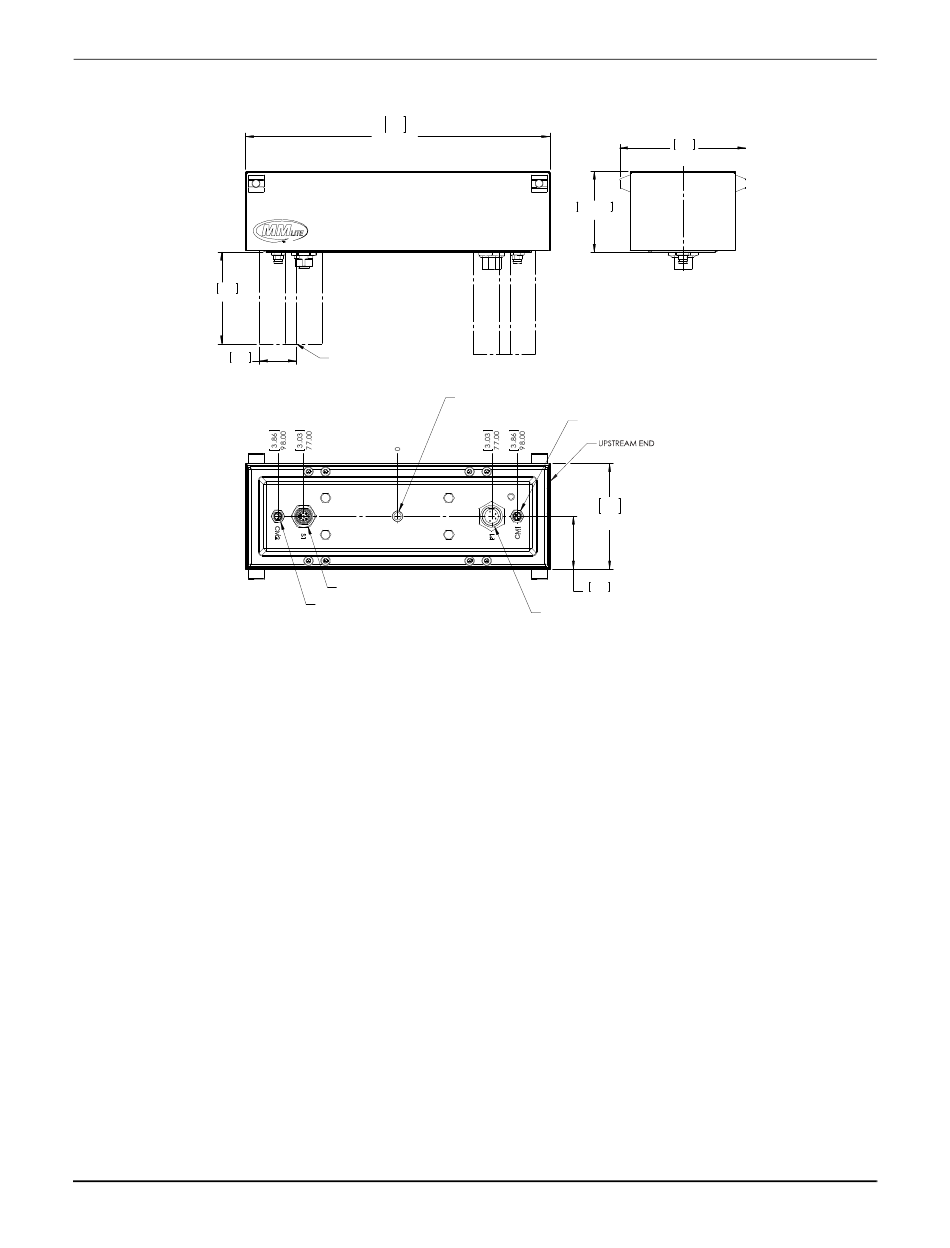

Figure 4-11: 250 mm Railless RS-422 Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206
The Sync cable connection is only present if the Synchronization option is installed.
If the Sync Option connector is not installed, a low-profile cap is installed to cover
the connector mounting hole.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• Copper alloy, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
• A4 SS.
158
9.84
9.78
250.0
248.5
ENCLSOURE
4X CLEARANCE NEEDED FOR
CONNECTOR & WIRE BEND RADIUS
M6X1.0 7mm
MOUNTING HOLE
MAX ALLOWABLE TORQUE = 5.5 Nm
SYNC CABLE CONNECTOR
(SYNC MOTOR ONLY)
COMMUNICATION CABLE
CONNECTOR
®
Silicone 737 and 734.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
4.07
103.3
2.61±.03
66.2±0.75
COMMUNICATION CABLE
CONNECTOR
3.48
3.39
88.5
86.0
1.70
43.2
POWER CONNECTOR
All Dimensions in Millimeters [Inches]
for the electrical specifications.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
