Installation
Option Installation

Precision Locator Installation

When installing the optional precision locator, make sure that all previous installation steps
except mounting the motors where the precision locators are installed has been completed. A
typical assembly is shown in
NOTE: The precision locator cannot be used with the precision rails option.
Precision
Locator

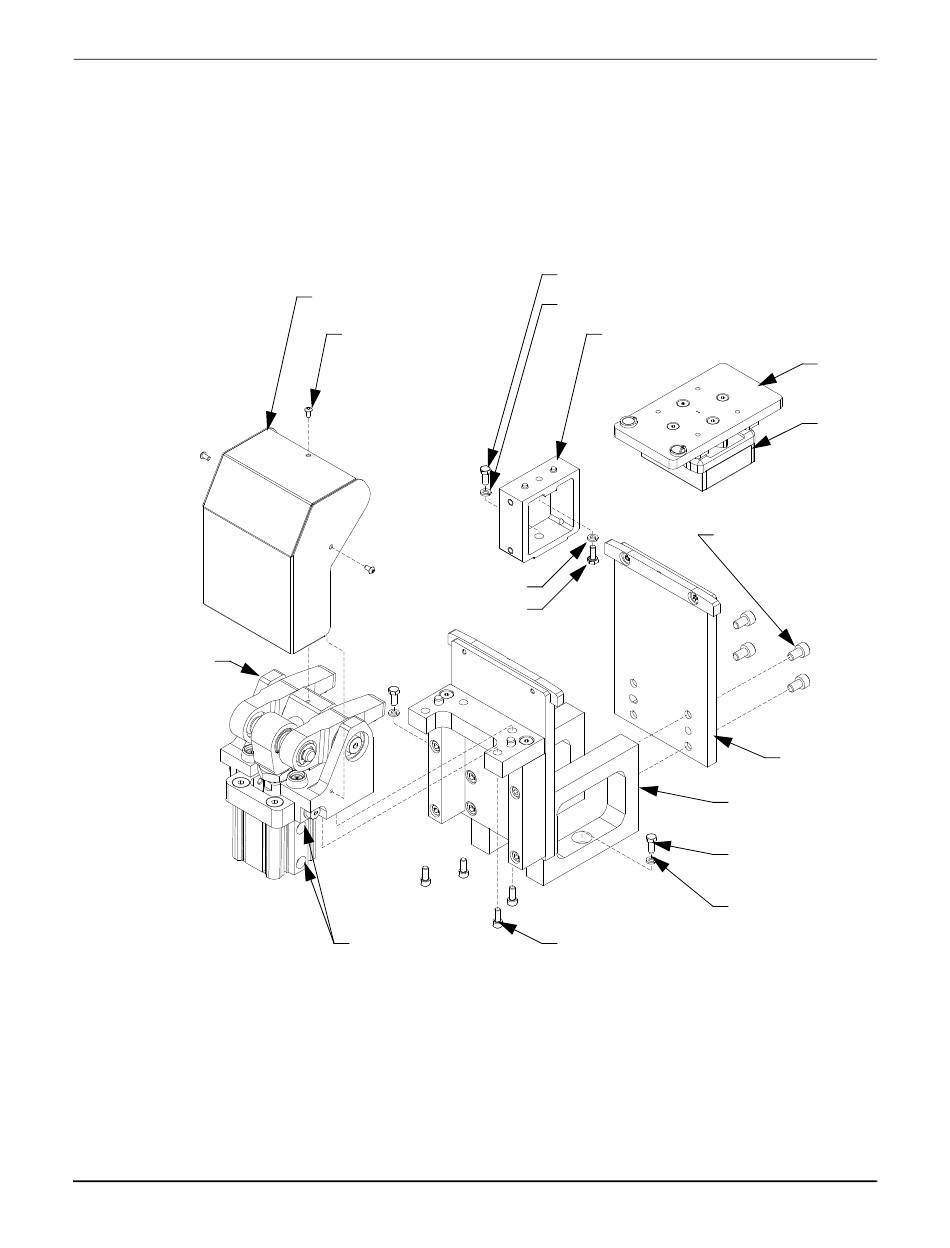

Figure 5-43: MagneMover LITE Precision Locator Option, Standard
296
Figure 5-43.
Cover
M3 x 6 mm Screw
(2 + 1X per Locator)
M6 Lock Washer
M6 x 20 mm Bolt
Pneumatic
Connections
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
M8 x 20 mm Bolt
M8 Lock Washer
Adjustable Motor Mount
M6 x 12 mm Screw
(2X per Rib)
Stand Rib
M8 x 30 mm Bolt
(1X per Rib)
M8 Lock Washer
(1X per Rib)
M6 x 25 mm Screw
(4X)
Pallet
Puck
Back Plate
