700-1708-25-AC
SYNC CABLE CONNECTOR
(SYNC MOTOR ONLY)
ETHERNET CONNECTOR
DIAGNOSTIC CABLE CONNECTOR
Weight: 1.9 kg [4.2 lb]

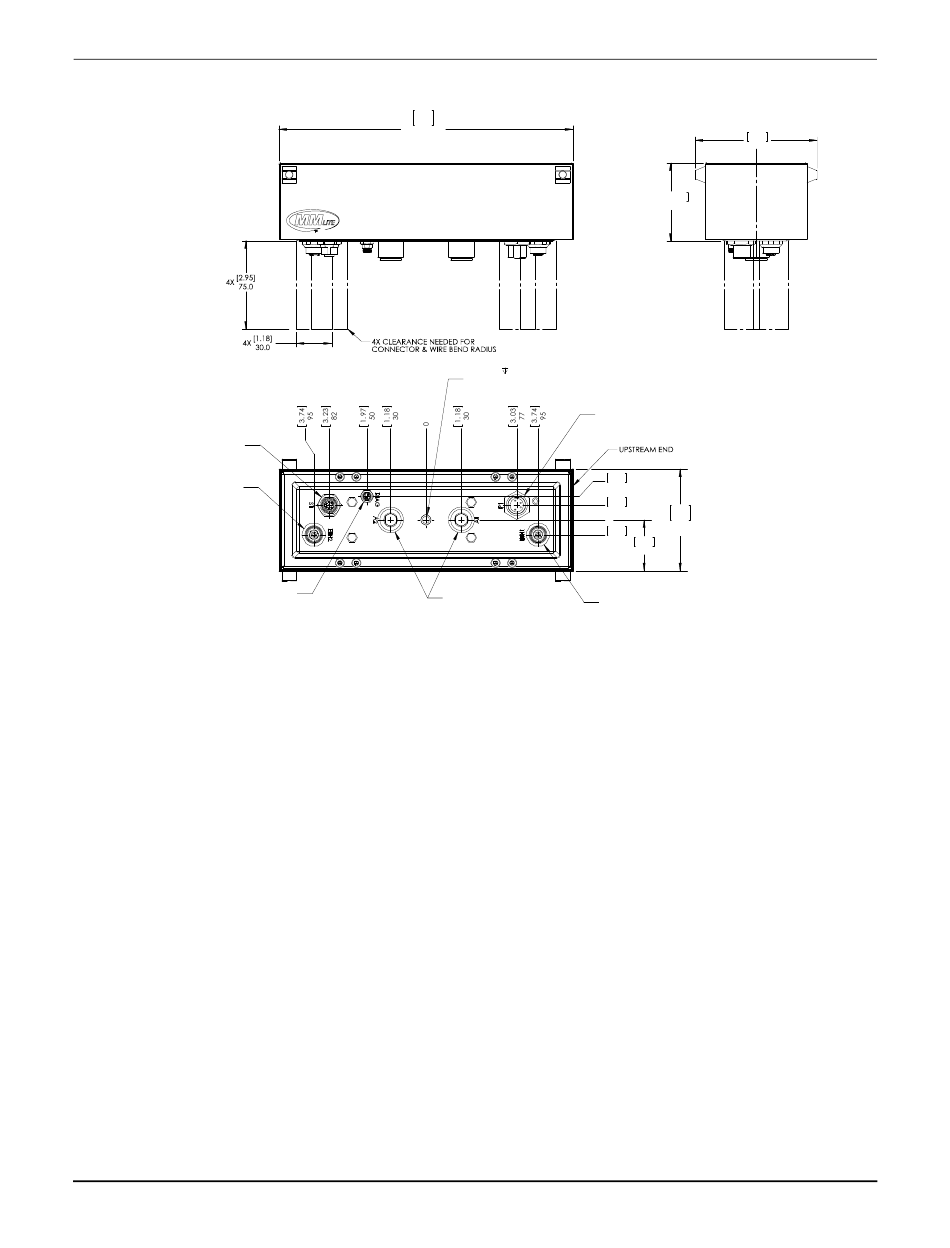

Figure 4-16: 250 mm Railless Ethernet Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206
See Air-cooled Motors on page 227
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
• A4 SS.
• 316L SS, Passivated.
MagneMover LITE User Manual
9.84
9.78
250.0
248.5
ENCLSOURE
AIR PORTS (MARKED A1 & A2)
®
Silicone 737 and 734.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
2X M6X1.0 7mm
MOUNTING HOLE
MAX. ALLOWABLE TORQUE=5.5Nm
POWER CONNECTOR
0.79
20.00
0.49
12.50
0
0.49
12.50
1.70
43.2
ETHERNET CONNECTOR
All Dimensions in Millimeters [Inches]
for the electrical specifications.
for the pneumatic specifications.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• 303 SS, Nickel plate (air ports).
• Steel, Zinc plate (air port plug).
Mechanical Specifications
4.07
103.3
2.61±.03
66.2±0.75
3.48
3.39
88.5
86.0
