Mm Lite Power Supply Electrical Connections And Indicators; Mm Lite Power Supply Electrical Connections; Mm Lite Power Supply Indicators - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Specifications and Site Requirements
Electrical Specifications
AC Power
J3
LOGIC
PROPULSION

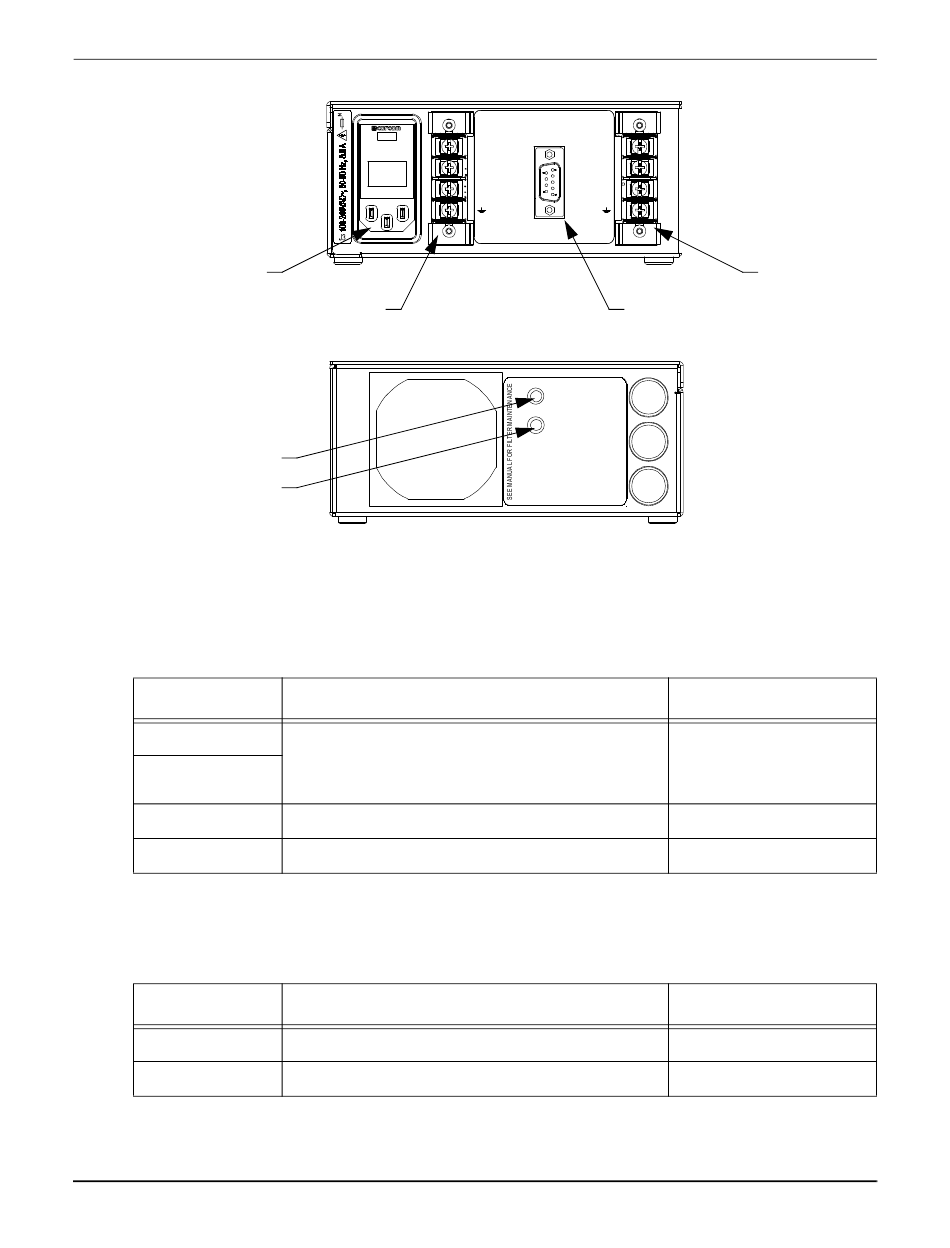

Figure 4-60: MM LITE Power Supply Electrical Connections and Indicators
Label
J1
J2
J3
J4
Label
LOGIC
PROPULSION
218
Motor Power
J1
Table 4-25: MM LITE Power Supply Electrical Connections
Description
Motor power
• V+ Propulsion – +36V DC ±1%, 300 W
• V+ Logic – +36V DC ±1%
100...240V AC~, 50...60 Hz, 8.5 A
DC Enable
Table 4-26: MM LITE Power Supply Indicators
Description
ON – Indicates that motor logic power is on.
ON – Indicates that motor propulsion power is on.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
J1 J2
36 VDC 36 VDC
300W / 8A MAX 300W / 8A MAX
V+ V+
PROPULSION PROPULSION
V+ V+
LOGIC LOGIC
V- V-
RETURN RETURN
GND GND
J4 DC ENABLE
(SEE MANUAL FOR PINOUT)
Front View
DC Enable
J4
F1
LOGIC
PROPULSION 1
T, 250V, 10A
PROPULSION
F2
PROPULSION 2
T, 250V, 10A
F3
LOGIC
T, 250V, 10A
Rear View
Motor Power
J2
Connector Type
Screw terminals
IEC 320, Plug
DE-9, Socket
Indicator Type
Green Light
Green Light
MagneMotion
