Specifications and Site Requirements
Mechanical Specifications
700-1708-82
Weight: 4.3 kg [9.4 lb]

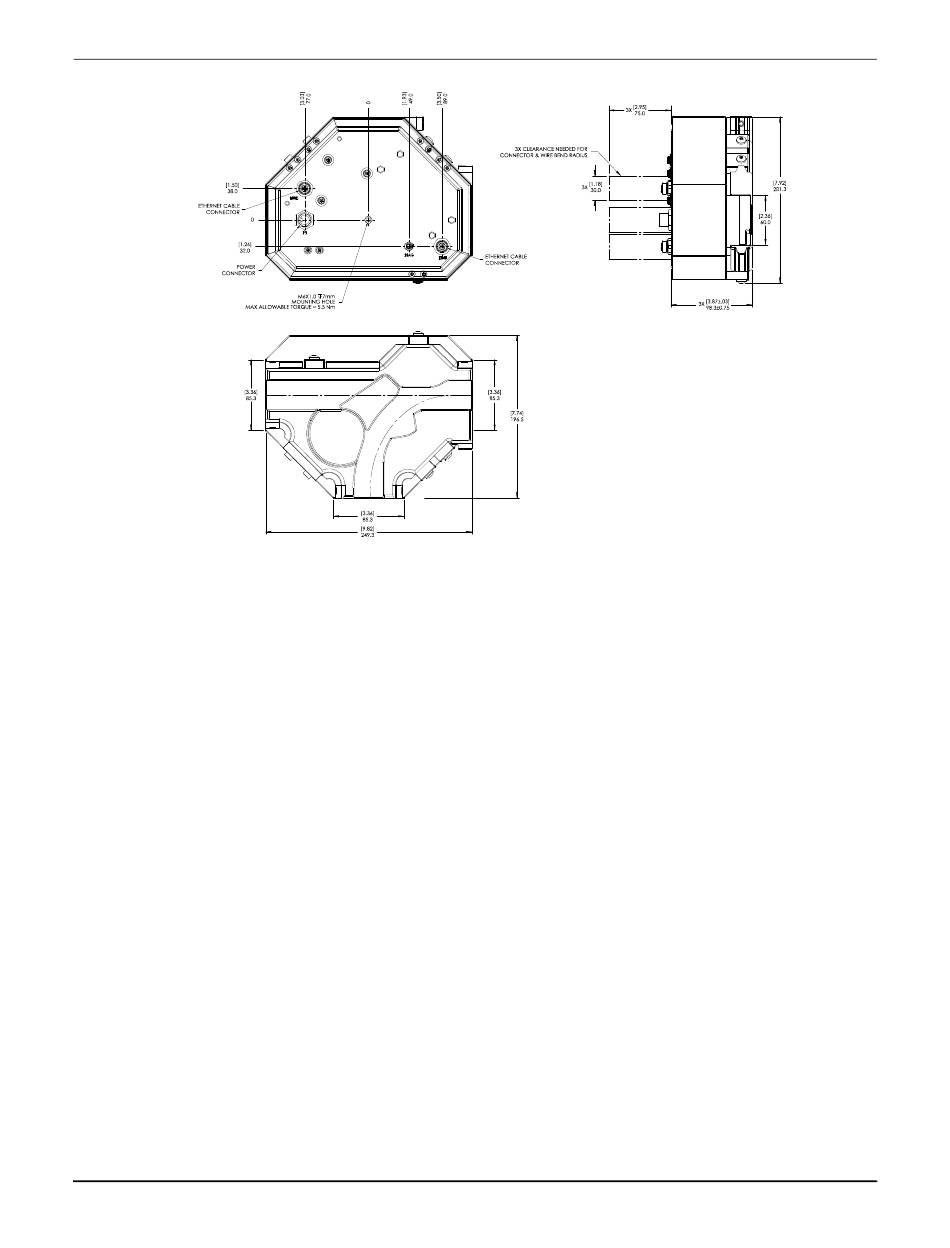

Figure 4-27: Left Ethernet High Payload Switch Mechanical Drawing
NOTE: See Motors and Switches on page 206
Only available with Aluminum rails.
The exclusion zones that are shown are for the MM LITE switch only. Additional
exclusion zones may be required based on the material being transported.
The noise of the switching mechanism is minimal and varies from switch to switch.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• 7075-T651 AL (flipper), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• IGUS iglide® L280.
• Silicon.
®
• Dow Corning Silicone 737 and 734.
• EPDM (synthetic rubber).
• White Vinyl Nitrile Rubber.
• A4 SS.
• 316 SS.
174
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
All Dimensions in Millimeters [Inches]
for the electrical specifications.
• 316L SS, Passivated.
• 300 Series SS, Passivated.
• 303 SS.
• 304 SS.
• 18-8 SS.
• A286 SS.
• Black Oxide Finish Alloy Steel.
®
• Tivar 1000.
• Nitrile Rubber.
MagneMotion
