Precision Rail Installation

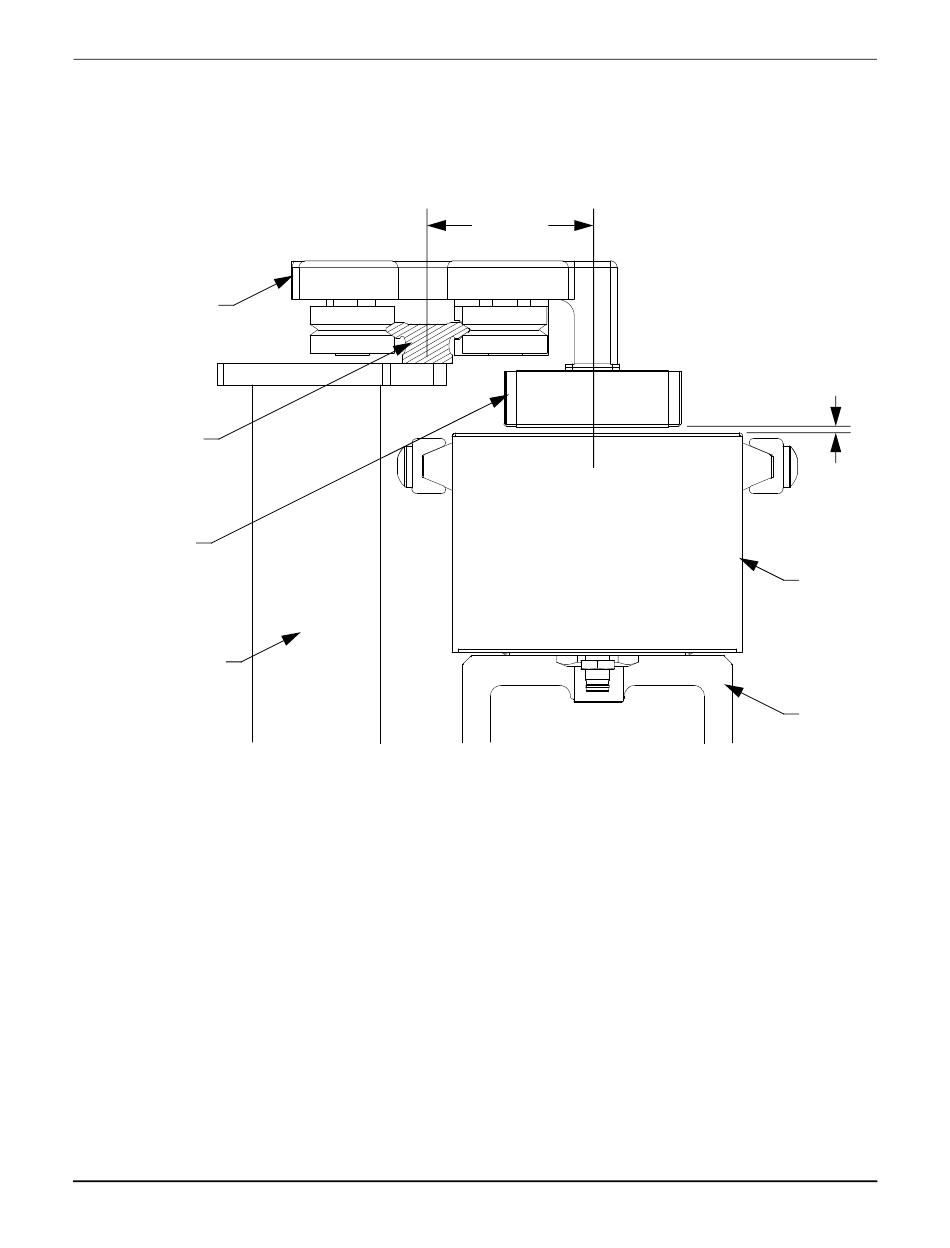

Figure 3-57 shows the standard dimensions for the precision rail option. These dimensions
include the distance between the center of the precision rail to the center of the motor and the
nominal gap between the bottom of the magnetic array and the top of the motor.
Single
Array
Vehicle
Rail
Array
Support
Post
Assembly
MagneMover LITE User Manual
Figure 3-57: Precision Rail to Motor Reference Diagram
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
49.00
[1.929]
All Dimensions in Millimeters [Inches]
Design Guidelines
Transport System Options
1.50
[0.059]
Motor
Motor
Mount
