Transport System Configuration

All examples that are provided are for horizontal track layouts unless otherwise specified. The
motor with puck is shown in

Straight Track Configuration

Motor Gap
Node types at the beginning of a path: Simple, Relay, Terminus, Gateway.
Node types at the end of a path: Relay, Terminus, Gateway.
MagneMover LITE User Manual
Figure
3-6.
Rails
Top View

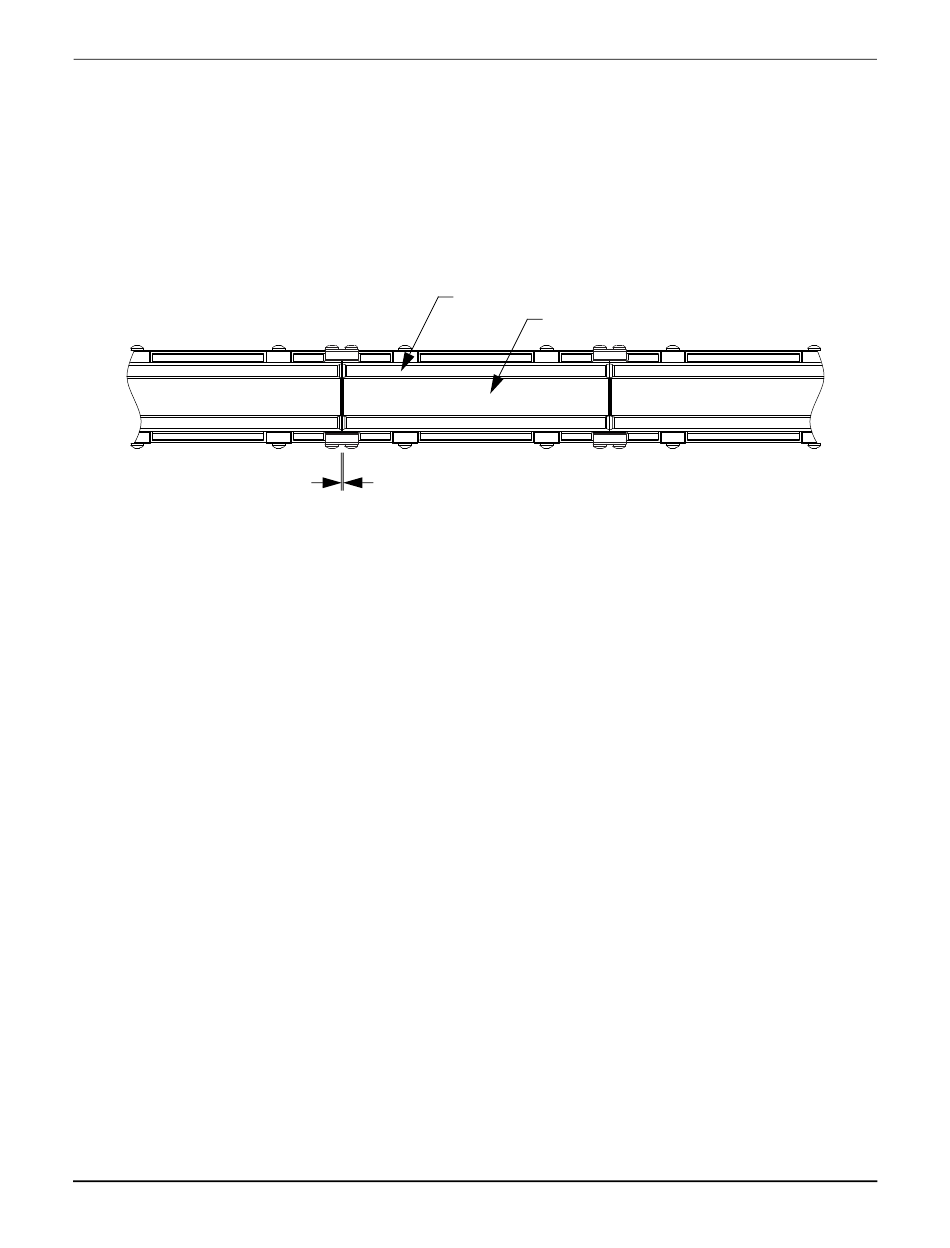

Figure 3-64: Straight Track Configuration
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Transport System Configuration
MM LITE Straight Motor
Design Guidelines
139
