Mm R 90° Curve Ethernet Motor Mechanical Drawing - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Specifications and Site Requirements
Mechanical Specifications
700-1708-40, 700-1708-41, 700-1708-43, 700-1708-44
Weight: 1.8 kg [4 lb]

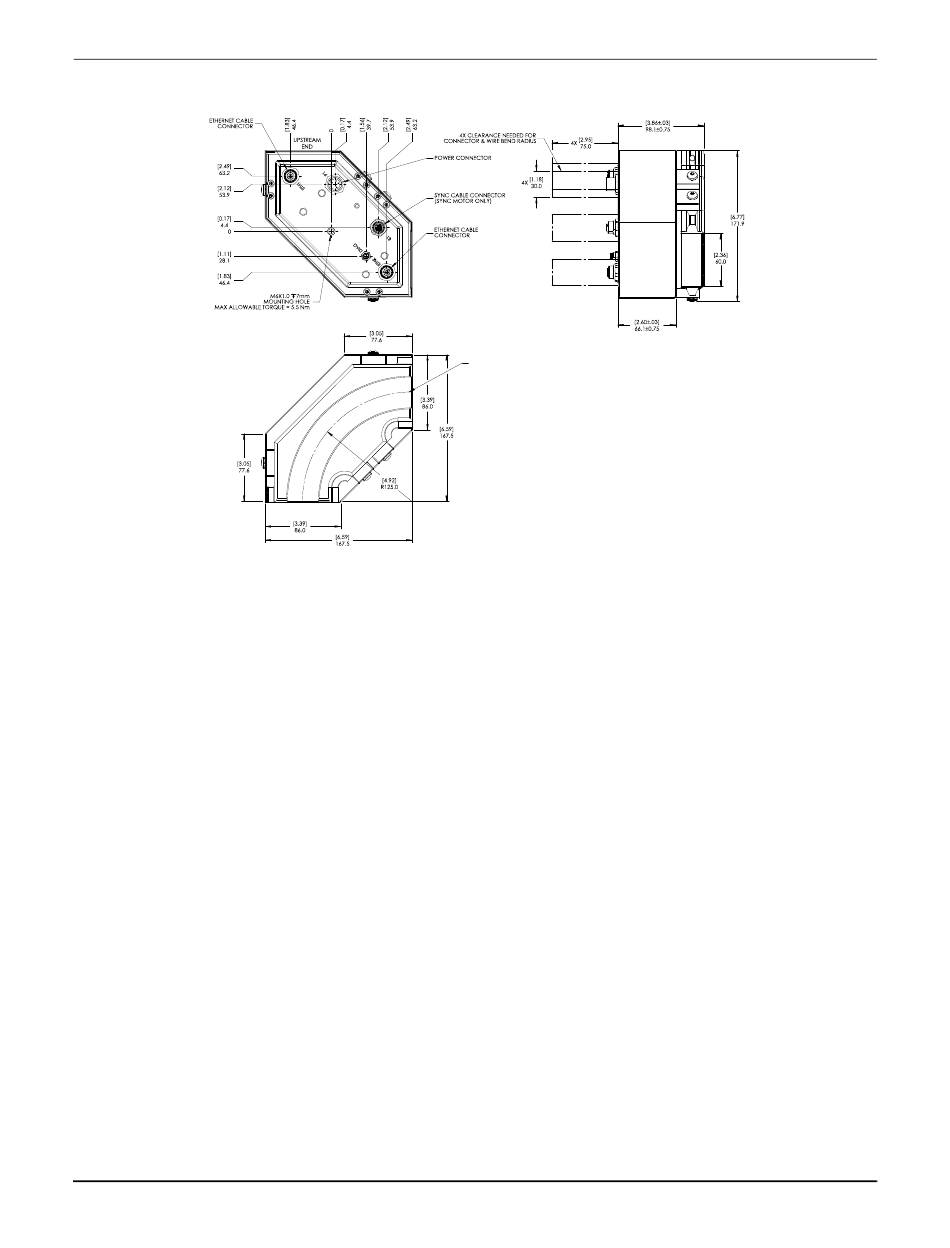

Figure 4-21: 125 mm R 90° Curve Ethernet Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206
Aluminum rails shown. Dimensions are the same for stainless steel rail version.
The Sync cable connection is only present if the Synchronization option is installed.
If the Sync Option connector is not installed, a low-profile cap is installed to cover
the connector mounting hole.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• 6061-T6 AL (AL rail posts), Anodized per MIL-A8625-F, Type II, Class 1, Non-dyed.
• 6061-T6 AL (AL rails), Hardcoat Anodized per MIL-A-8625-F, Type III, Class 1, Non-dyed.
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
®
• Dow Corning Silicone 737 and 734.
• EPDM (synthetic rubber).
• A4 SS.
• 304L SS, Nickel plate (SS rails).
