MMI-MML-250M-NR-SER-SYNCAC
Weight: 1.9 kg [4.2 lb]

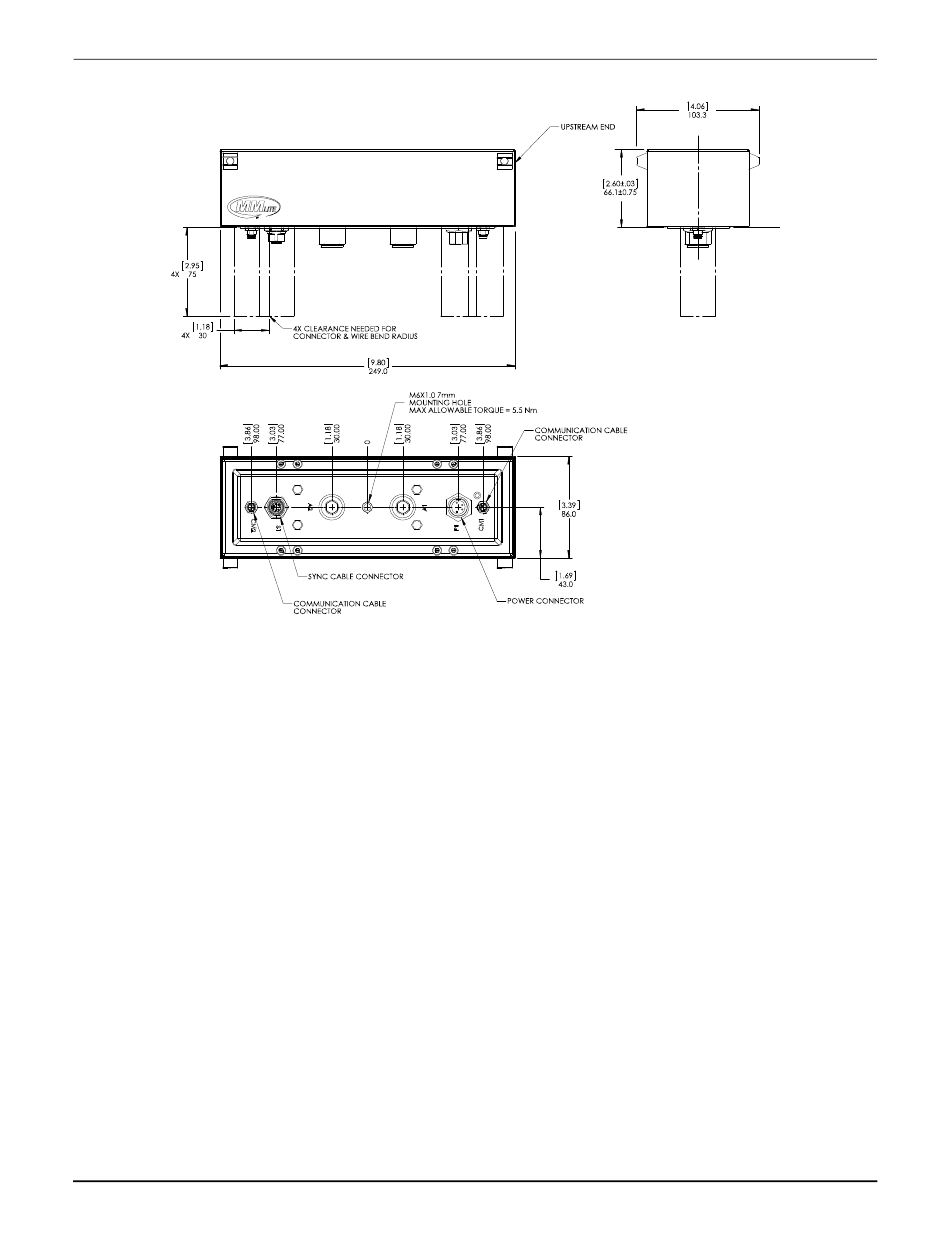

Figure 4-12: 250 mm Railless RS-422 Air-cooled Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206
See Air-cooled Motors on page 227
Only available with the Synchronization option installed.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5...500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• Copper alloy, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
• A4 SS.
• 303 SS, Nickel plate (air ports).
MagneMover LITE User Manual
®
Silicone 737 and 734.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
Mechanical Specifications
All Dimensions in Millimeters [Inches]
for the electrical specifications.
for the pneumatic specifications.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
• Steel, Zinc plate (air port plug).
