Specifications and Site Requirements
Mechanical Specifications

Glide Pucks

Glide pucks are used on standard MagneMover LITE transport systems with either aluminum
or stainless steel integral rails. Each glide puck can carry up to a 1 kg [2.2 lb] load.
700-1560-00
[0.787±0.010]
20±0.25
[2.44]
62
[0.787±0.010]
20±0.25
[1.69]
43
Weight: 0.43 kg [0.9 lb]
Exposed Materials
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
182
[2.44]
62
[0.787±0.010] [0.787±0.010]
20±0.25 20±0.25
C L

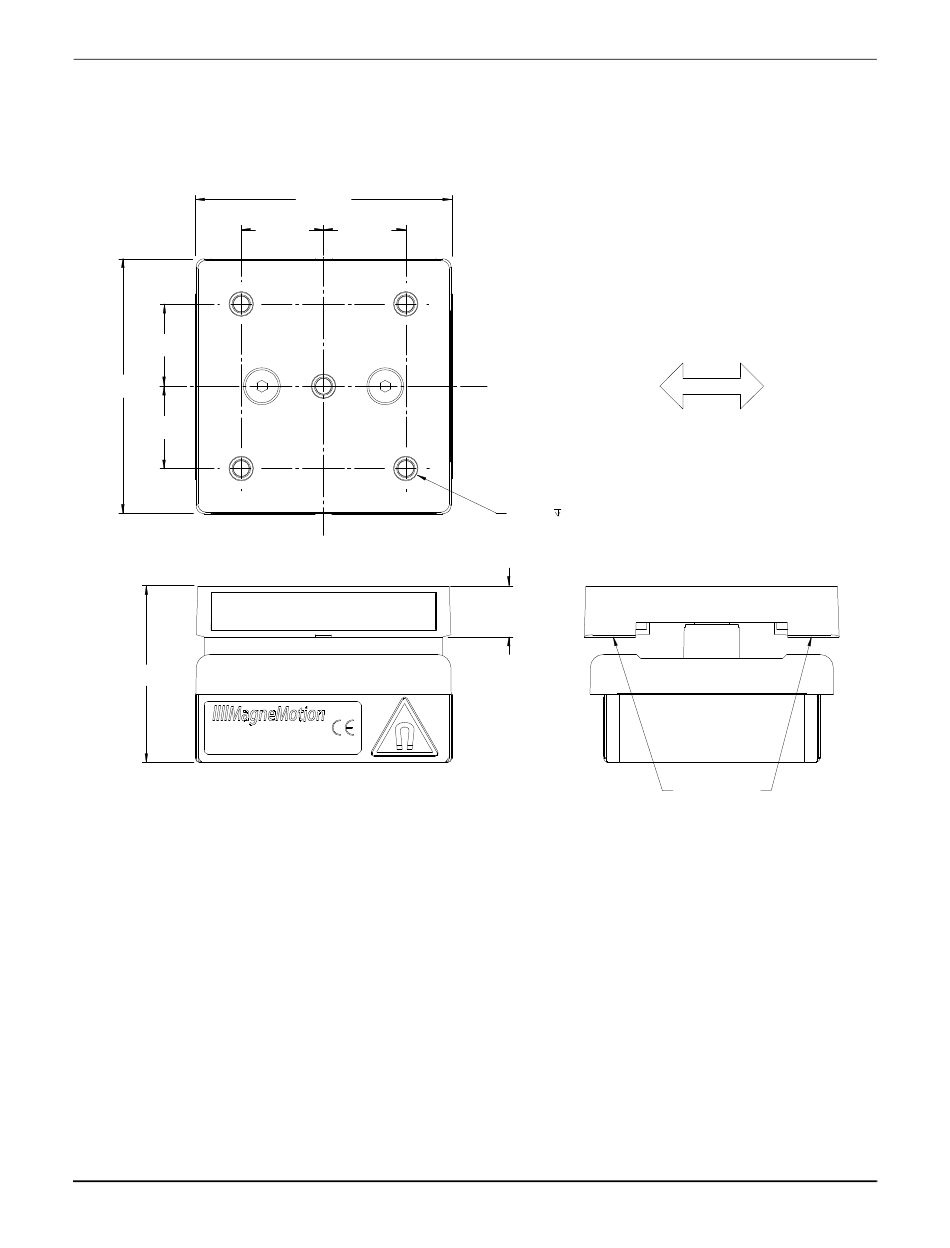

Figure 4-34: Glide Puck Mechanical Drawing (G5)
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
C L
5X M4 X0.7 6.3 MAX THD DEPTH
(TORQUE SCREWS TO 8 IN-LBS MAX)
[0.488±0.010]
12.40±0.25
(0.3MM TYPICAL WEAR
NOT INCLUDED)
All Dimensions in Millimeters [Inches]
DIRECTION OF TRAVEL
RUNNING SURFACES
