Precision Rail Option

Precision Rails

THEORETICAL
APEX
5.4±0.1
NOTICE
Exposed Materials
• 420 Series Stainless Steel or High Carbon Steel.
MagneMover LITE User Manual
25.74±0.025
10.0±0.1

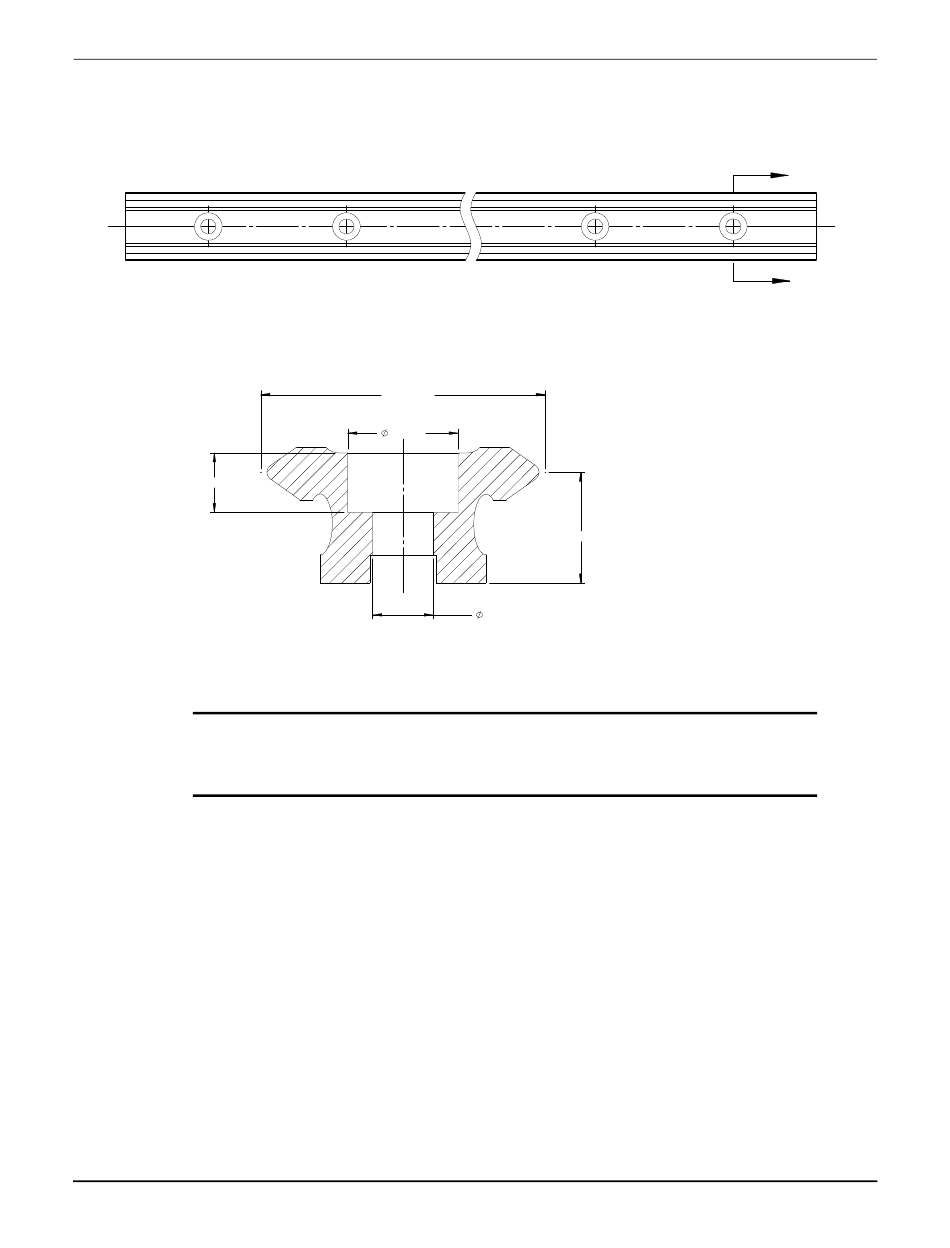

Figure 4-41: Precision Rail Mechanical Drawing
The precision rails must always be lubricated with a thin
coating of oil to provide proper operation and environmental
protection.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Specifications and Site Requirements
THEORETICAL
APEX
10.0±0.025
5.5±0.1
All Dimensions in Millimeters
Mechanical Specifications
A
C L
A
189
