Secure Spine Plates to Support Posts

Once all rails have been properly aligned and secured to the spine plates, the spine plates must
be firmly secured to the top of each support post as shown in

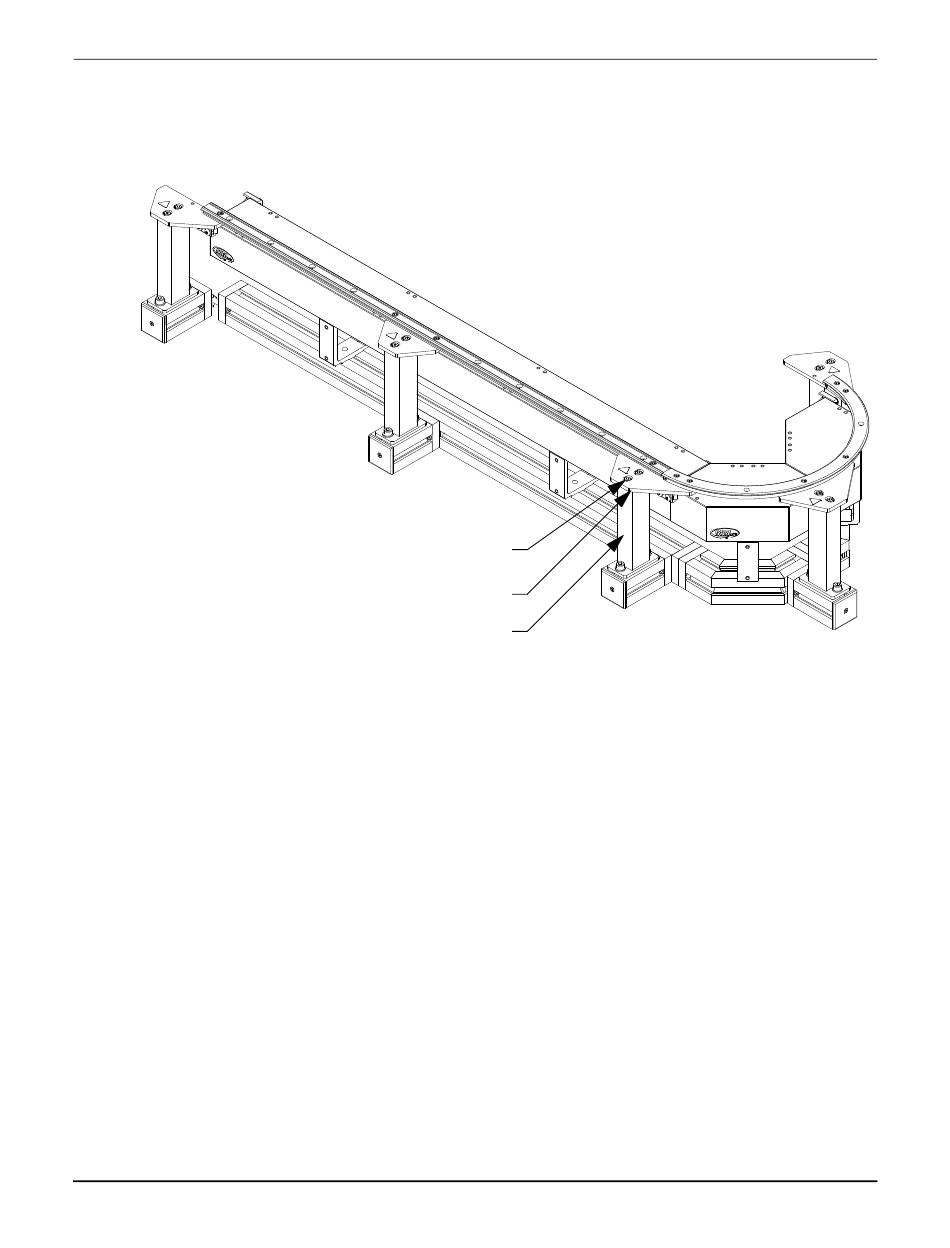

Figure 5-40: Securing Precision Rail Spine Plates to Support Posts
1. Starting with the M6 x 10 mm low head socket cap screw closest to the rail, tighten it
to 3.2 N•m [28 in•lb] with a 5 mm Hex wrench.
2. Check the rail to make sure it is still properly aligned.
3. Tighten the second M6 screw on the spine plate to 3.2 N•m [28 in•lb] with a 5 mm
Hex wrench.
4. Select to the next closest spine plate and repeat
ing each spine plate to its support post until all spine plates are secure.

Install the Precision Rail Vehicles

Install vehicles on closed loop systems before closing the loop to eliminate the need to remove
a precision rail or change the factory settings on the vehicles (see
Rails Removed on page
Without Removing Rails on page
MagneMover LITE User Manual
M6 Low Head SCS
(2X)
Spine Plate
Support Post
430. If all rail segments have been installed, see
431.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Option Installation
Figure 5-40.
Step 1 through Step 3. Continue secur-
Installing Vehicles with
Installing Vehicles
Installation
