Replace 4-Wheel Puck Wear Points - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

• Bumper, Puck, Wheeled, ML (2X).
• Screw, Mach, Che, 6 Lobe, SS, M4 x 0.7 x 7.5, Dri-Loc (4X).
• Screw, Shoulder, SS, 1/4" Ø x 9/16" L,10-32, Dri-Loc (4X).
• Washer, Shim, SST, 1/4" ID x 3/8" OD x 0.115" L (4X).
• Screw, Mach, Flat, Hex, SS, M2 x 0.4 x 5, Dri-Loc (2X).
• Torx T7 wrench.
• 1/8 in hex wrench.
• Metric hex wrench set.
• Torque wrench.
• Isopropyl Alcohol.
• Loctite 243.
Procedure
M2 Screw
(2X)
Bumper
(2X)
Septum Wheel
(2X)
Lateral Guide
Wheels (4X)
Magnet Array
MagneMover LITE User Manual
10-32 Ultra-Low-Profile Shoulder Screw
(4X)
Suspension (Payload) Wheels
(4X)

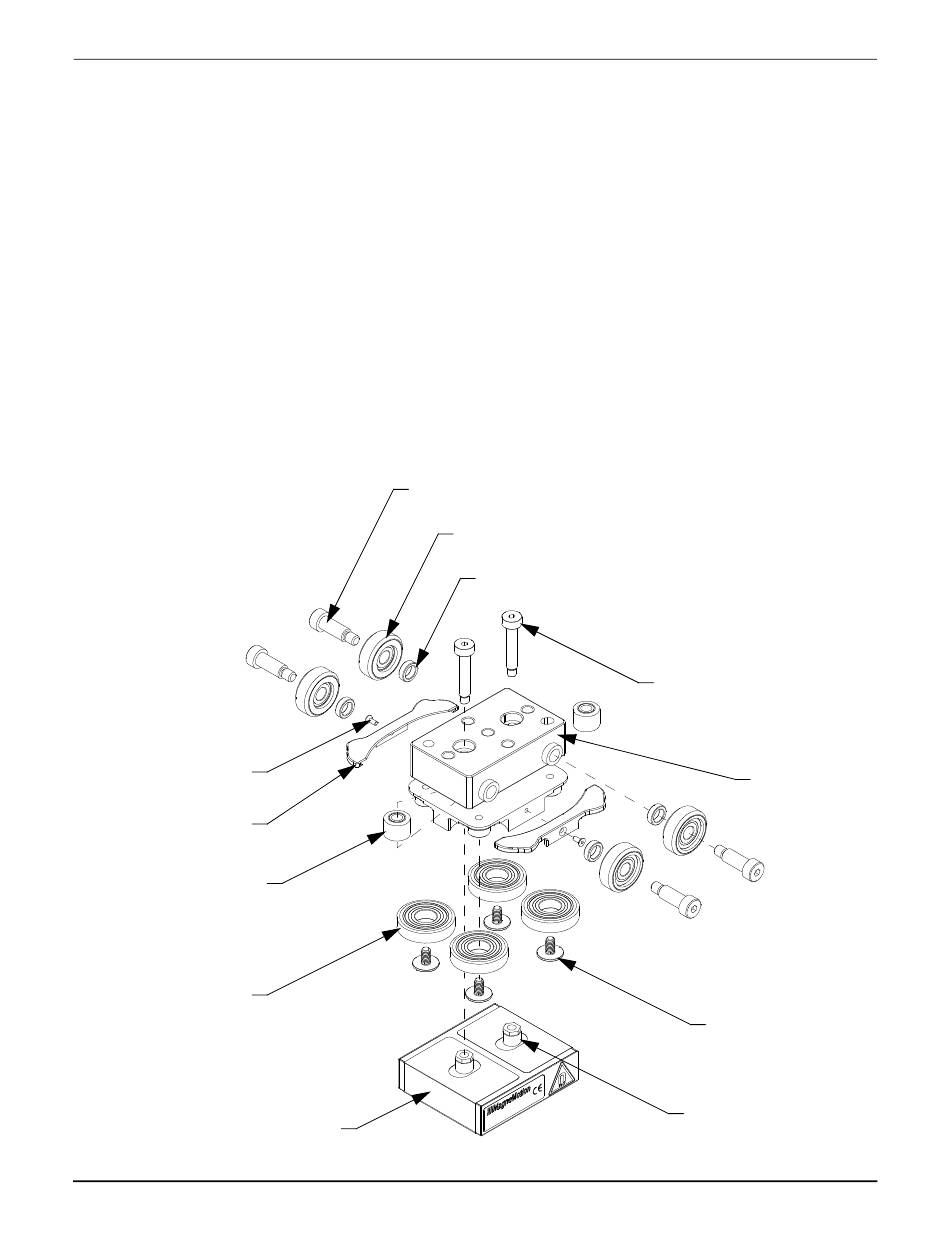

Figure 7-25: Replace 4-Wheel Puck Wear Points
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Shim Washer
(4X)
M4 x 23.5 Shoulder Screw
(2X)
Maintenance
Repair
Puck Body
M4 x 0.7 x 7.5
Screws (4X)
Threaded Standoff
(ref)
