Installing Switch Cable Chase Covers - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Installation
Transport System Installation
Switches
1. Locate an outer switch cover against the bracket on the outside of the switch.
2. Install two M5 x 8 mm screws to secure the cover.
3. Locate two inner covers against the bracket on the inside of the switch.
4. Install two M5 x 8 mm screws each to secure each cover.
5. Tighten the six M5 screws to 1.6 N•m [14 in•lb] with a Phillips bit.
280
Outer Cover
Inner Cover
M5 Screw
(6X)

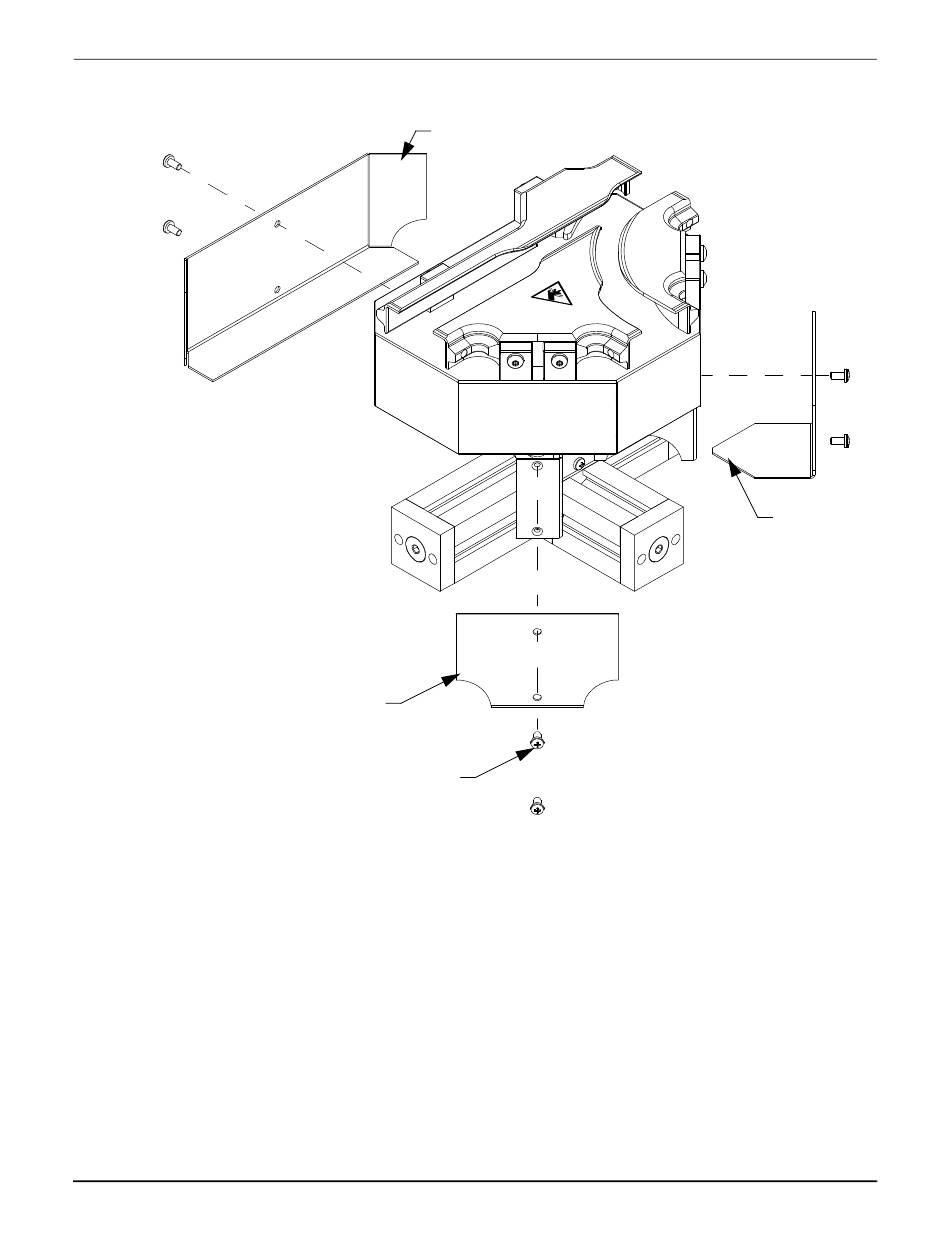

Figure 5-27: Installing Switch Cable Chase Covers
