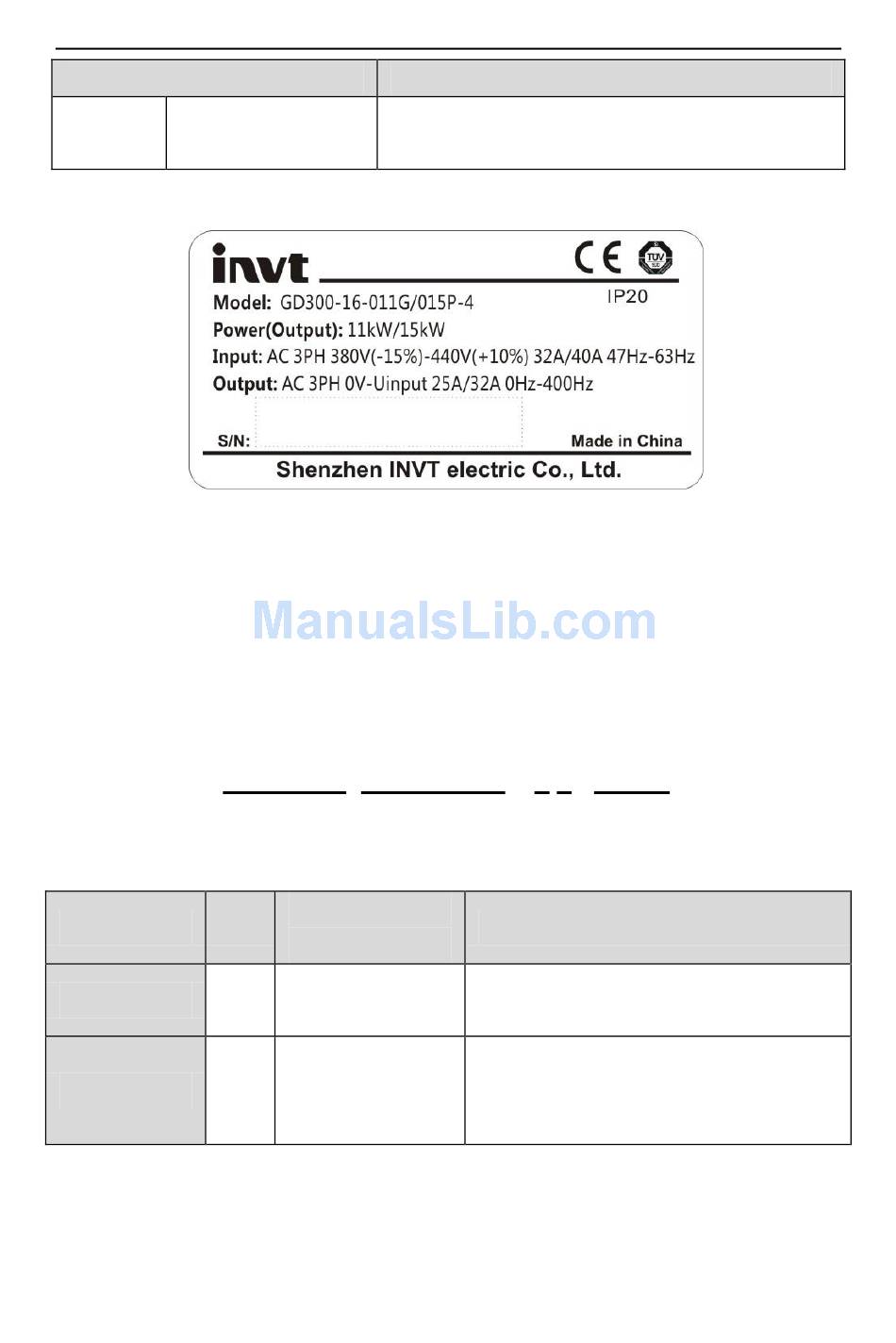

2.2 Name plate

Note: The name plate above is an example of Goodrive300-16 standard products.
CE/TUV/IP20 will be identified on basis of actual certification.
2.3 Type designation key
The type designation contains information on the inverter. The user can find the type
designation on the type designation label attached to the inverter or the simple name plate.
GD300-16–5R5G/7R5P – 4 1– HVAC
Key No.
Abbreviation
Rated power
Selectable C2 filters: meet the degree requirement
of IEC61800-3 C2
Fig 2-1 Name plate
①
Fig 2-2 Product type
Detailed
description
Product
①
abbreviation
Power range +
②
Load type
Specification
② ③ ④
Detailed content
GD300-16 is short for Goodrive300-16:
special for HVAC
5R5-5.5kW
G—Constant torque load
P—Variable torque load
9
Product overview
