Direct Station Selector: MLX

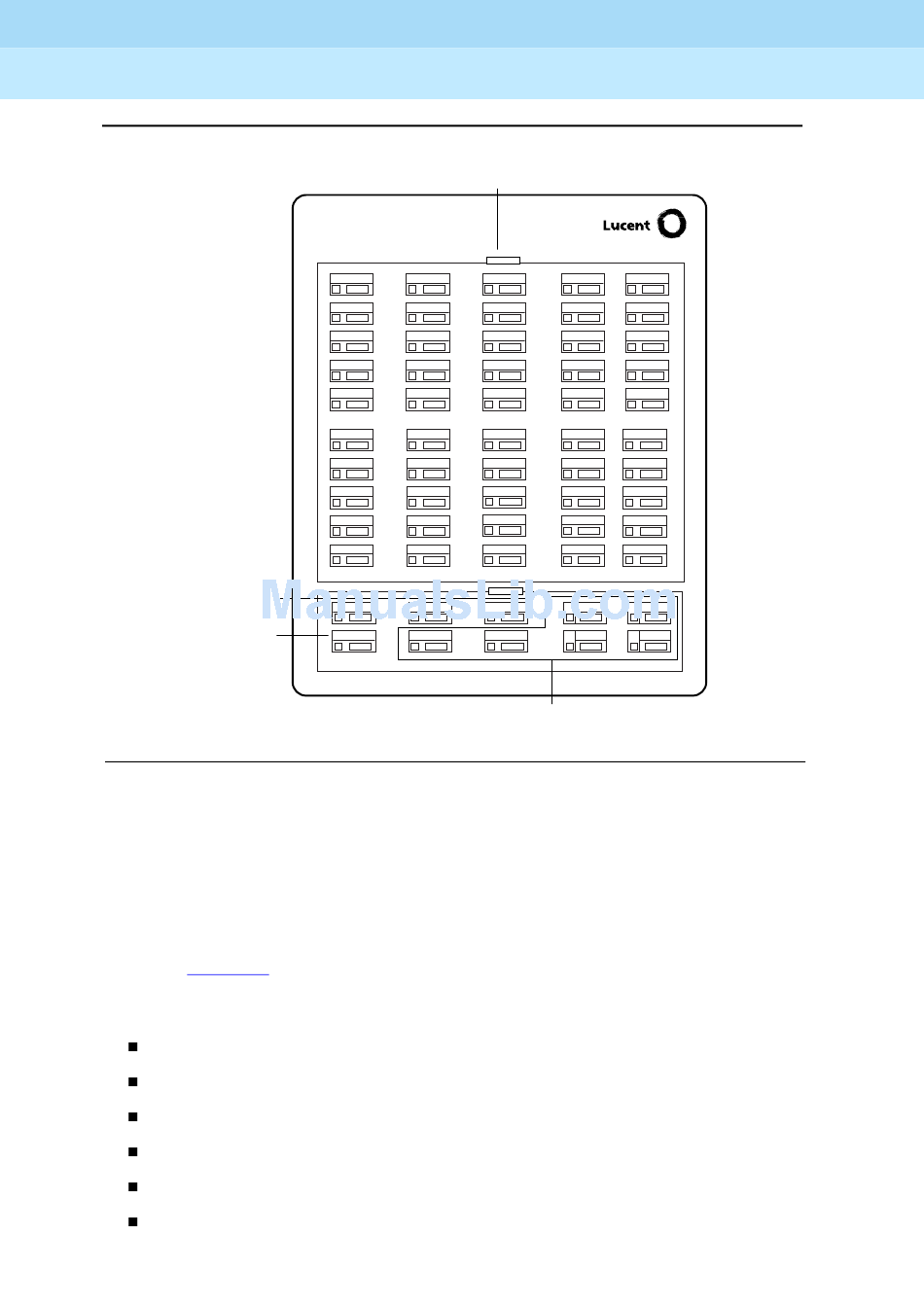

Figure 15.
Each of the 50 DSS buttons corresponds to one of three extension numbers. The
specific extension number is determined by the Page button that an operator
presses. For example, if the first extension number for the Page 1 button is
programmed to be Extension 100, the DSS buttons and associated LEDs on a
single DSS correspond to Extensions 100 to 149. The specific extensions
represented by each DSS button are assigned from top to bottom, left to right, as
shown in
A DSS button can represent one of the following:
User extension number
Line/trunk number (801–880)
Pool dial-out code (Hybrid/PBX only)
Calling group extension number
Paging group extension number
Operator park zone extension number
