Canon iR C3200 Series Service Manual page 547

F-10-478

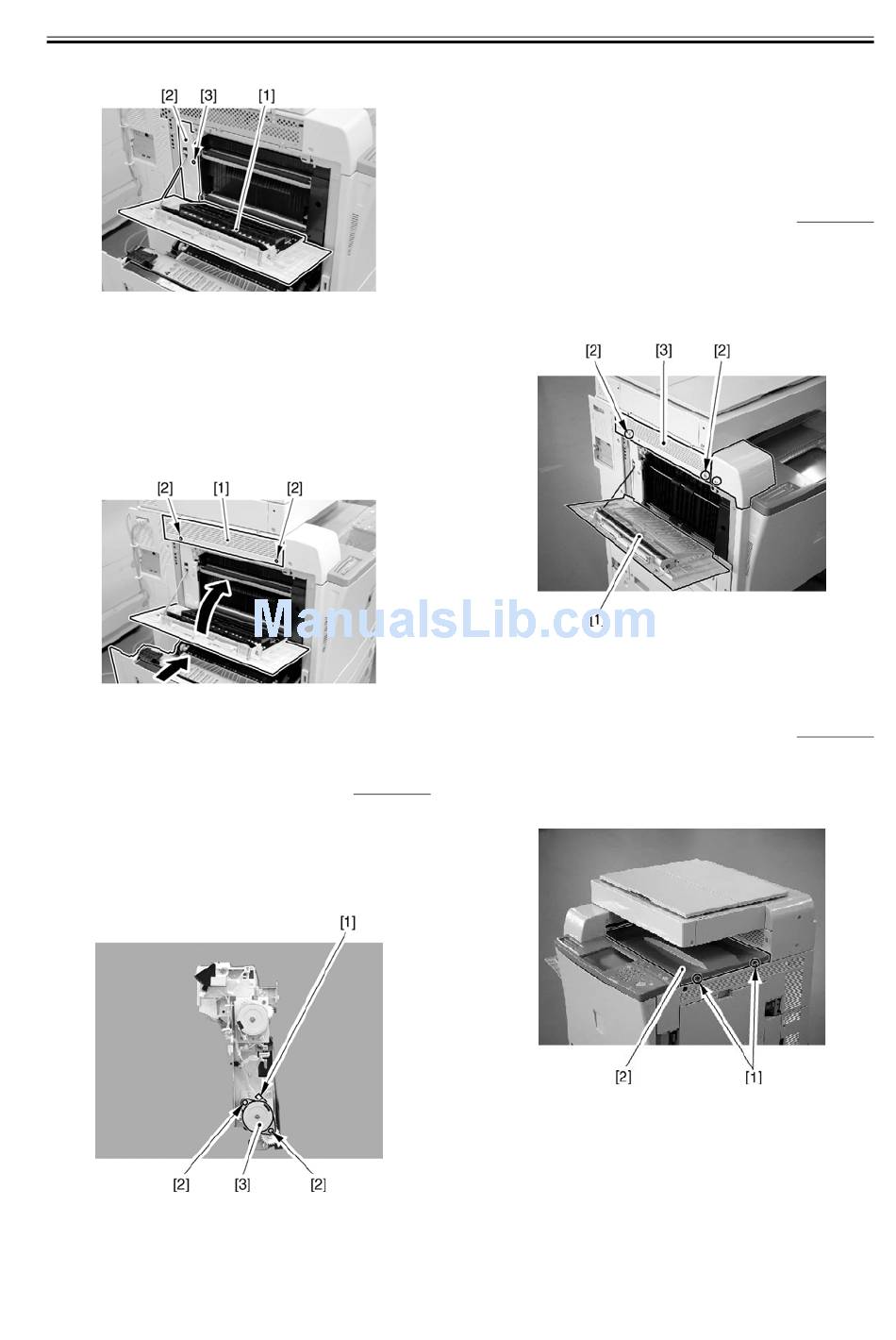

11) Fix the upper left cover [1] using 2 screws [2];
then, close the delivery vertical path cover [3], and
put the fixing/feeding unit back in its initial
position.
F-10-479
10.10.45.5
Removing
Delivery Vertical Path Motor
1) Disconnect the connector [1], and remove the 2
screws [2]; then, detach the delivery vertical path
motor [3].
F-10-480
the
0000-4860
10.10.46 Face-Down
Sensor 1
10.10.46.1 Removing
Upper Left Cover
1) Open the delivery vertical path cover [1], and
remove the 2 screws [2]; then, detach the upper left
cover [3].
F-10-481
10.10.46.2 Removing
Center Delivery Tray
1) Remove the 2 screws [1], and detach the center
delivery tray [2].
F-10-482
Chapter 10
Delivery
the
0000-4810
the
0000-4811
10-141
