F-9-154
3) Check to make sure that the edge [A] of the belt
does not ride over the rib [B] of the tension roller.
[1]
F-9-155

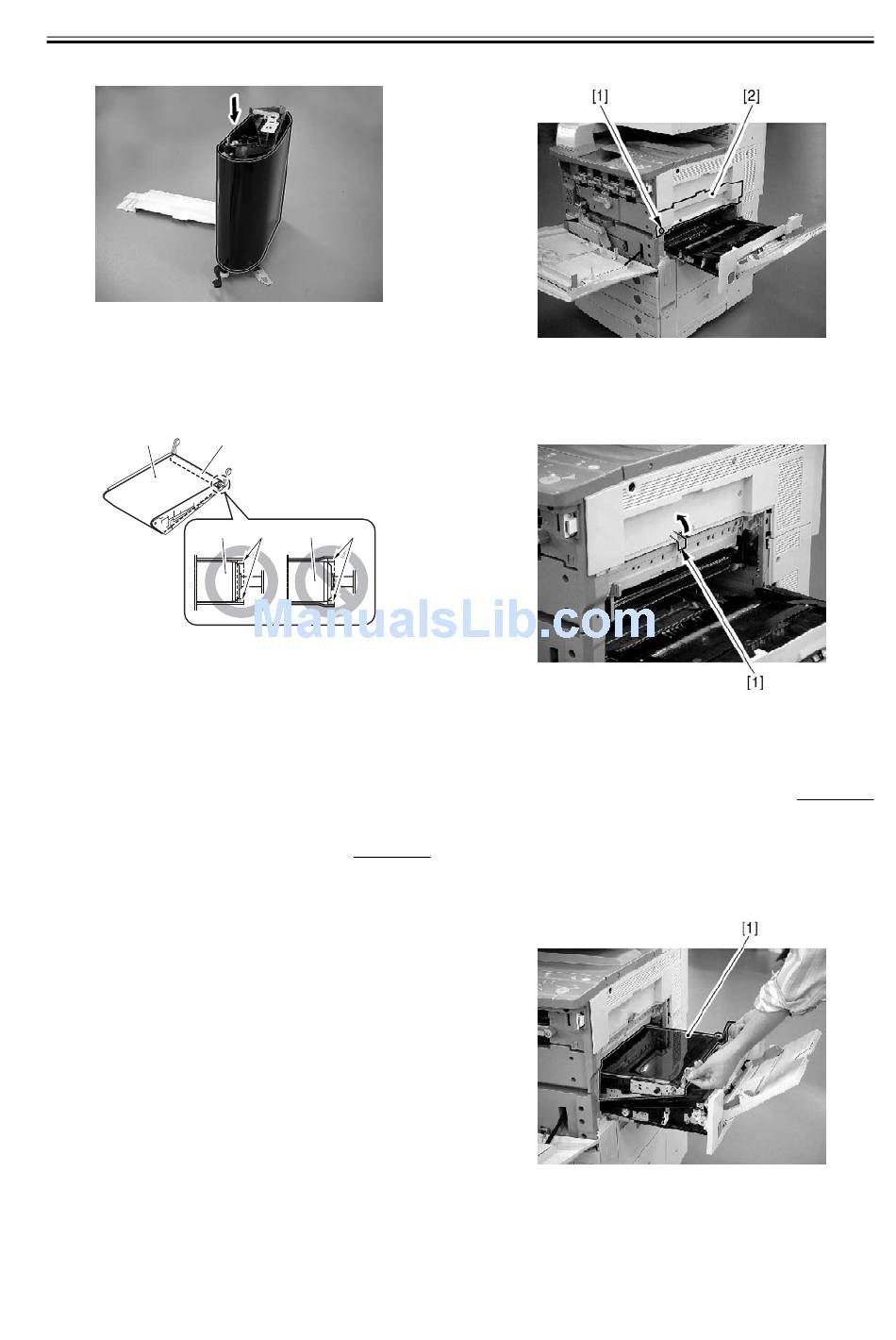

9.8.10 Primary Transfer Roller

9.8.10.1 Pressure Release of the
Intermediate Transfer Unit
1) Open the front cover, and turn the intermediate
transfer unit releasing lever to unlock it.
2) Slide out the manual feed unit.
3) Remove the screw [1], and detach the middle right
cover [2].
[2]
[2] [A] [2] [A]
0000-4648
F-9-156
4) Release the escape lever [1].
F-9-157
9.8.10.2
Removing
Intermediate Transfer Unit
1) While picking the tabs at the front and the rear,
slide out the intermediate transfer unit [1]; then,
detach it by holding it by the indicated area [2].
F-9-158
Chapter 9
the
0000-4651
9-73
