8.1.3 Construction of the Control System

The laser exposure system is controlled mainly by the DC controller PCB.
Laser scanner motor control
PWM
signal
PWM
control
Manual feed unit
ON/OFF
control
APC
control
J114(Y)/J116(M)/
J118(C)/J120(Bk)
IC for
PWMIC
control
DC controller PCB
J129
Laser shutter control
Fixing feeder unit
Front cover
BD detection PCB

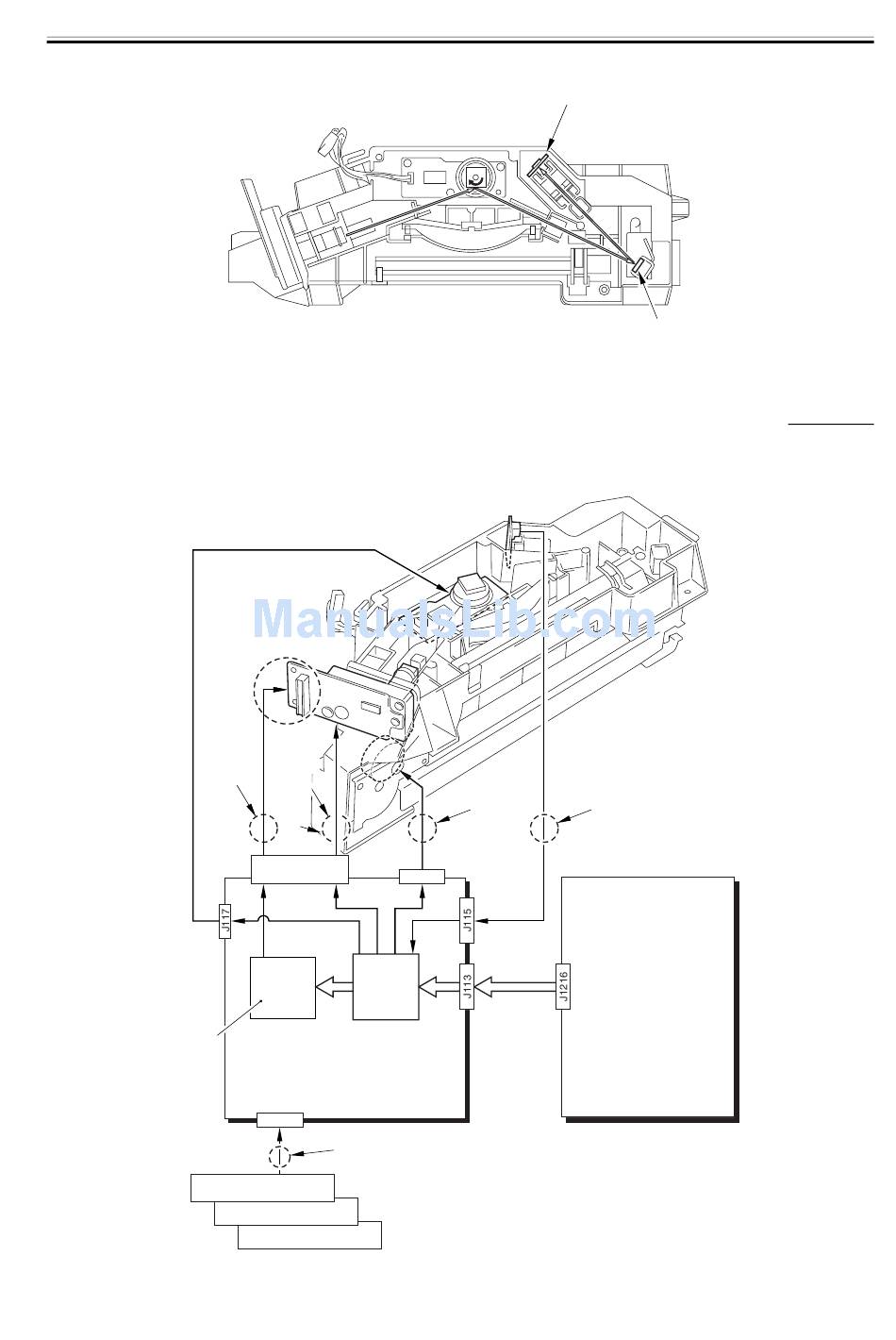

F-8-2
Main
scanning
direction
correction
control
J117
Image data
F-8-3
BD mirror
Main scanning direction
sync control
Main controller PCB
Chapter 8
0000-4454
