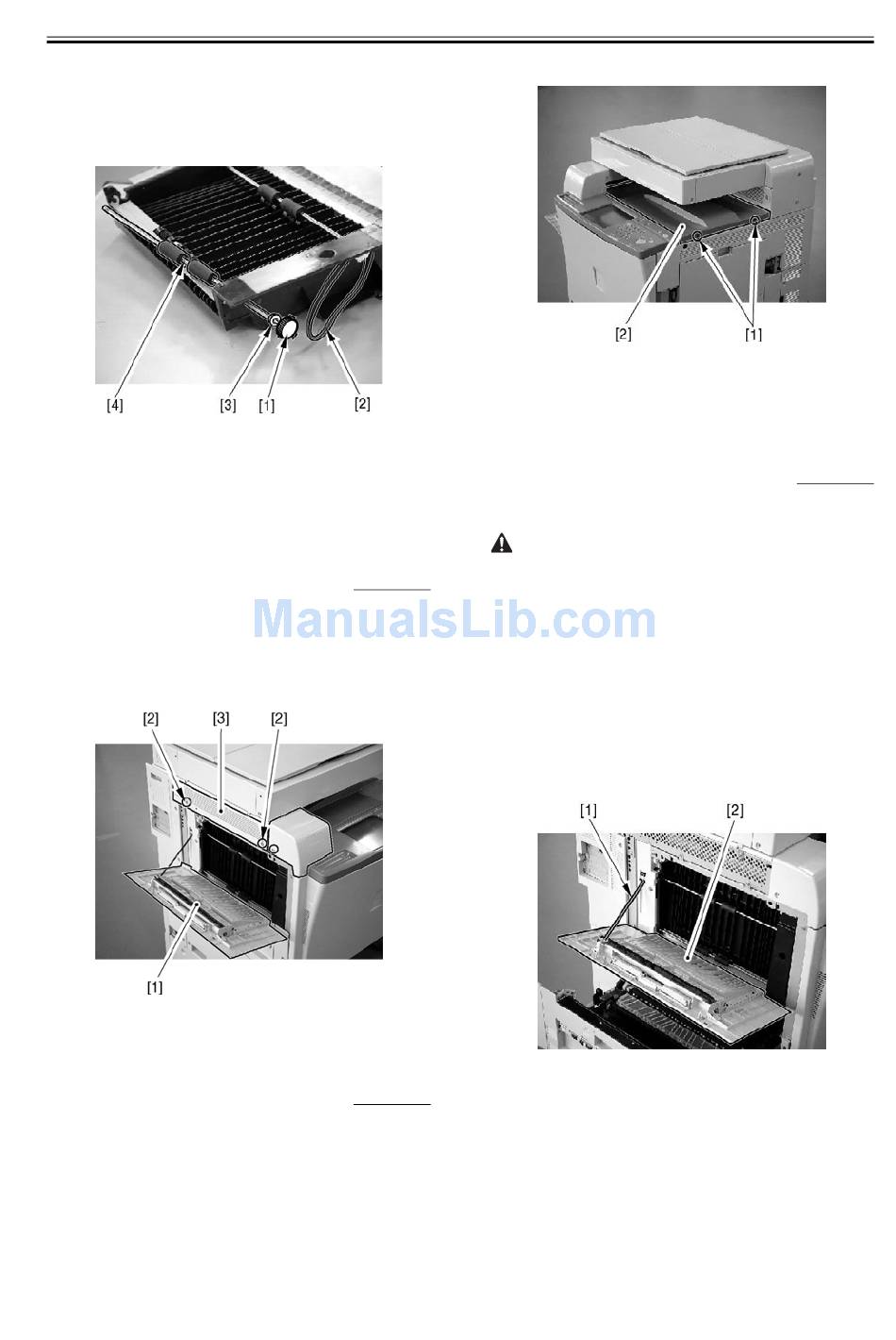

3) Remove the gear [1] and detach the belt [2] at the
rear; then, remove the bushing [3], and detach the
delivery vertical roller 2 [4].
F-10-446
10.10.44 Face-Down Delivery Motor
10.10.44.1 Removing
Upper Left Cover
1) Open the delivery vertical path cover [1], and
remove the 2 screws [2]; then, detach the upper left
cover [3].
F-10-447
10.10.44.2
Removing
Center Delivery Tray
1) Remove the 2 screws [1], and detach the center
delivery tray [2].
the
0000-4833
the
0000-4834
F-10-448
10.10.44.3
Removing
Delivery Vertical Path Unit
(Old)
In case following models, refer to "Removing the
Delivery Vertical Path Unit (New)".
- flom MLW01838
- flom MLX02392
1) Detach the strap [1] from the delivery vertical
cover; then, detach the delivery vertical path cover
[2].
F-10-449
2) Remove the screw [1], and detach the delivery
internal cover [2].
Chapter 10
the
0000-4835
10-133
