Chapter 12
12.5.25.7 Removing the Fixing
Heat Discharge Fan

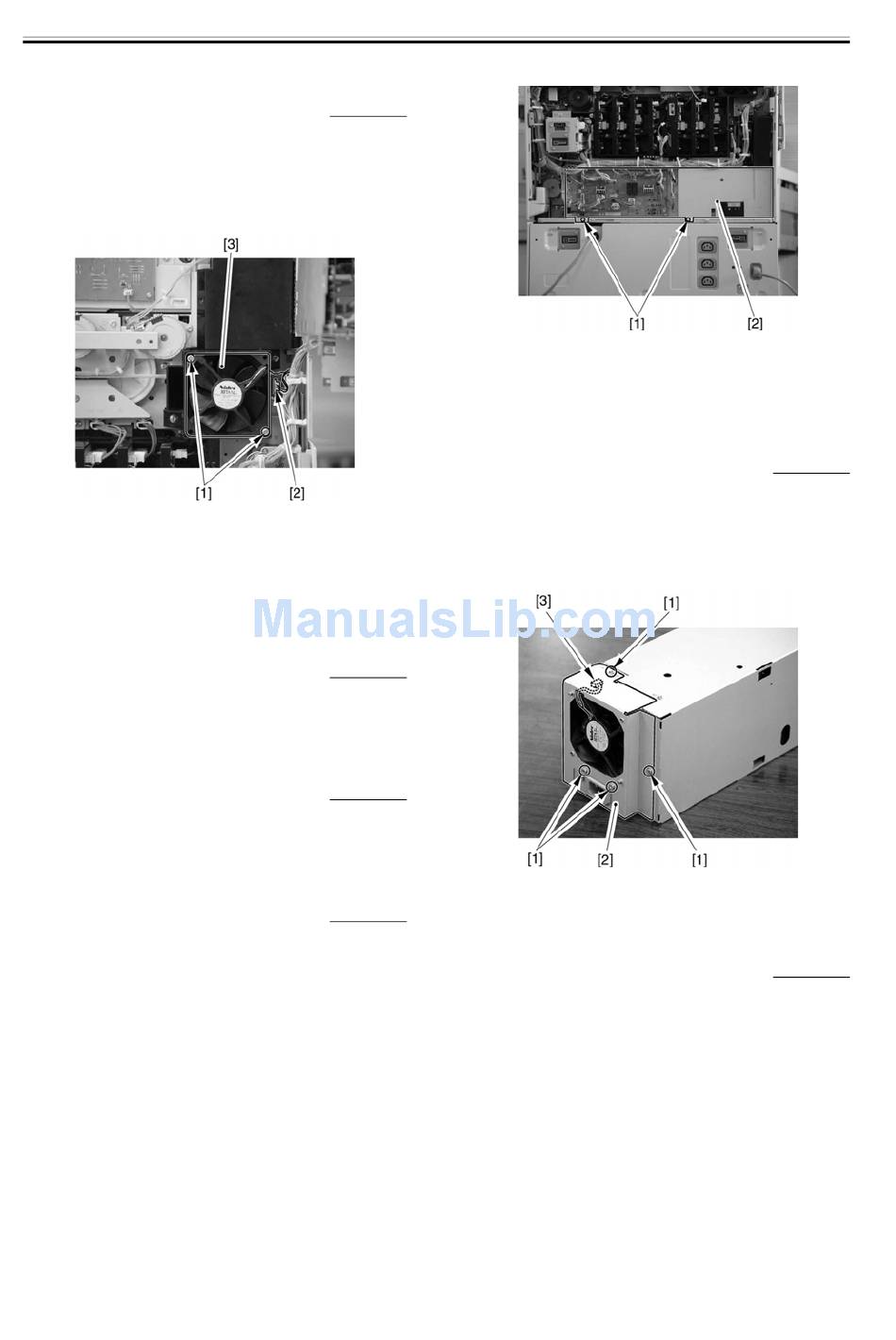

1) Remove the 2 screws [1], and disconnect the
connector [2]; then, detach the fixing heat discharge
fan [3].
F-12-192
12.5.26 Power Supply Cooing Fan
12.5.26.1 Removing the Upper
Rear Cover
1) Remove the upper rear cover.
12.5.26.2 Removing the Lower
Rear Cover
1) Remove the lower rear cover.
12.5.26.3 Removing the DC
Power Supply Unit
1) Remove the 2 screws [1], and disconnect all
connectors of the fuse PCB; then, detach the DC
power supply unit [2].
12-60
0000-5264
12.5.26.4 Removing the Power
Supply
Mounting
1) Remove the 5 screws [1], and remove the power
supply cooling fan mointing plate[2]; then, detach
the connector [3].
0000-5293
0000-5294
0000-5295
12.5.26.5 Removing the Power
Supply Cooing Fan
1) Remove the 2 screws [1], and detach the power
supply cooling fan [2].
F-12-193
Cooling Fan
F-12-194
0000-5296
0000-5297
