Chapter 10

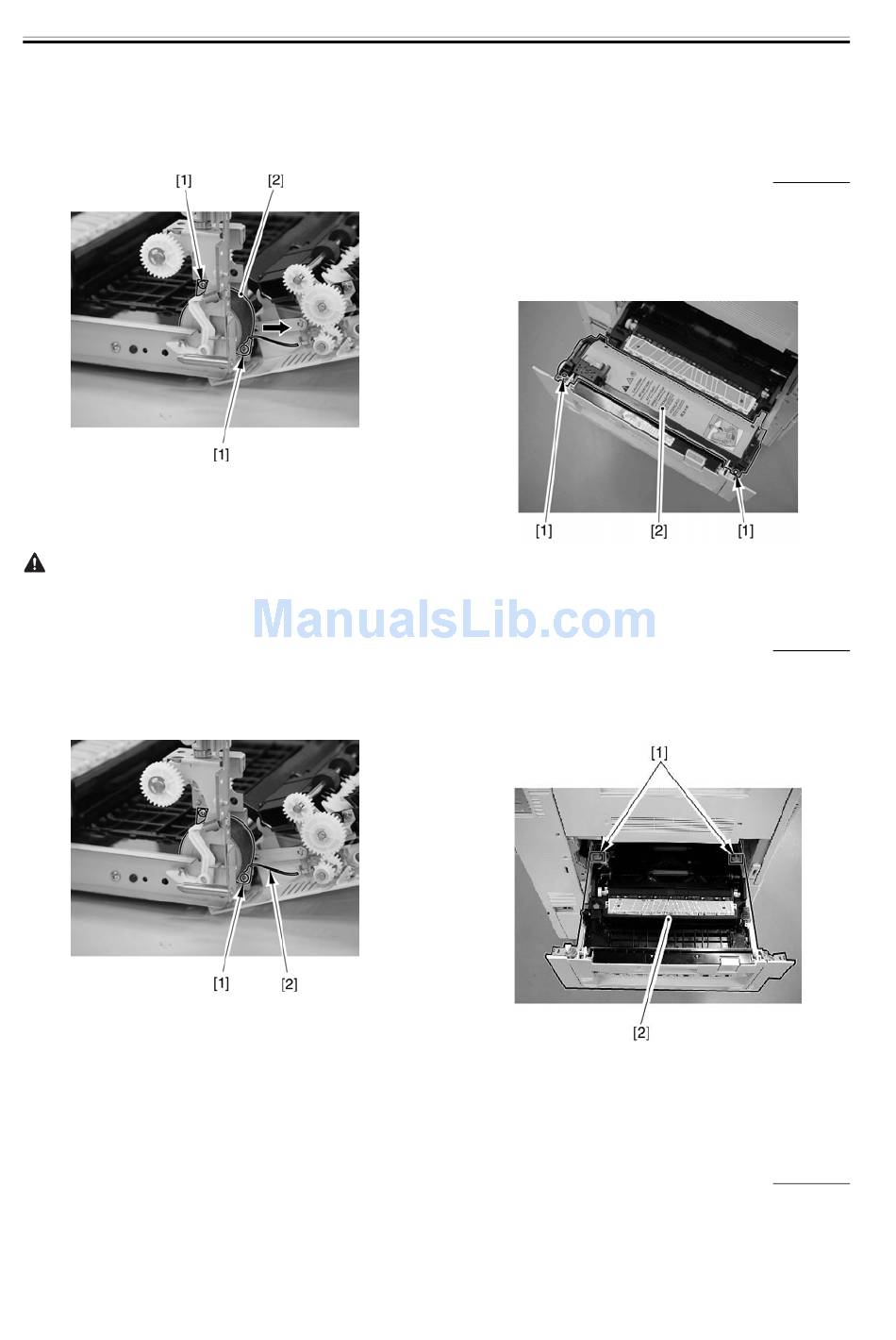

4) Remove the 2 screws [1], and shift the duplex
feeder motor [2] in the direction indicated to detach.
F-10-286
Points to Note When Attaching the Duplex Feed
Motor
1) Be sure that the connector area is at the bottom.
2) Be sure to tighten the lower right screw [1] together
with the grounding wire [2].
F-10-287
10-96
10.10.34 Duplex Registration Sensor
10.10.34.1
Removing
Fixing Unit
1) Slide out the fixing/feeding unit.
2) Remove the 2 screws [1], and detach the fixing unit
[2].
F-10-288
10.10.34.2
Removing
Fixing/Feeder Unit
1) Remove the 2 stoppers [1], and detach the fixing/
feeder unit [2].
F-10-289
10.10.34.3 Removing
Fixing/Feeder
Back Sheet
the
0000-8478
the
0000-8480
the
Assembly
0000-8481
