Canon iR C3200 Series Service Manual page 363

F-9-144

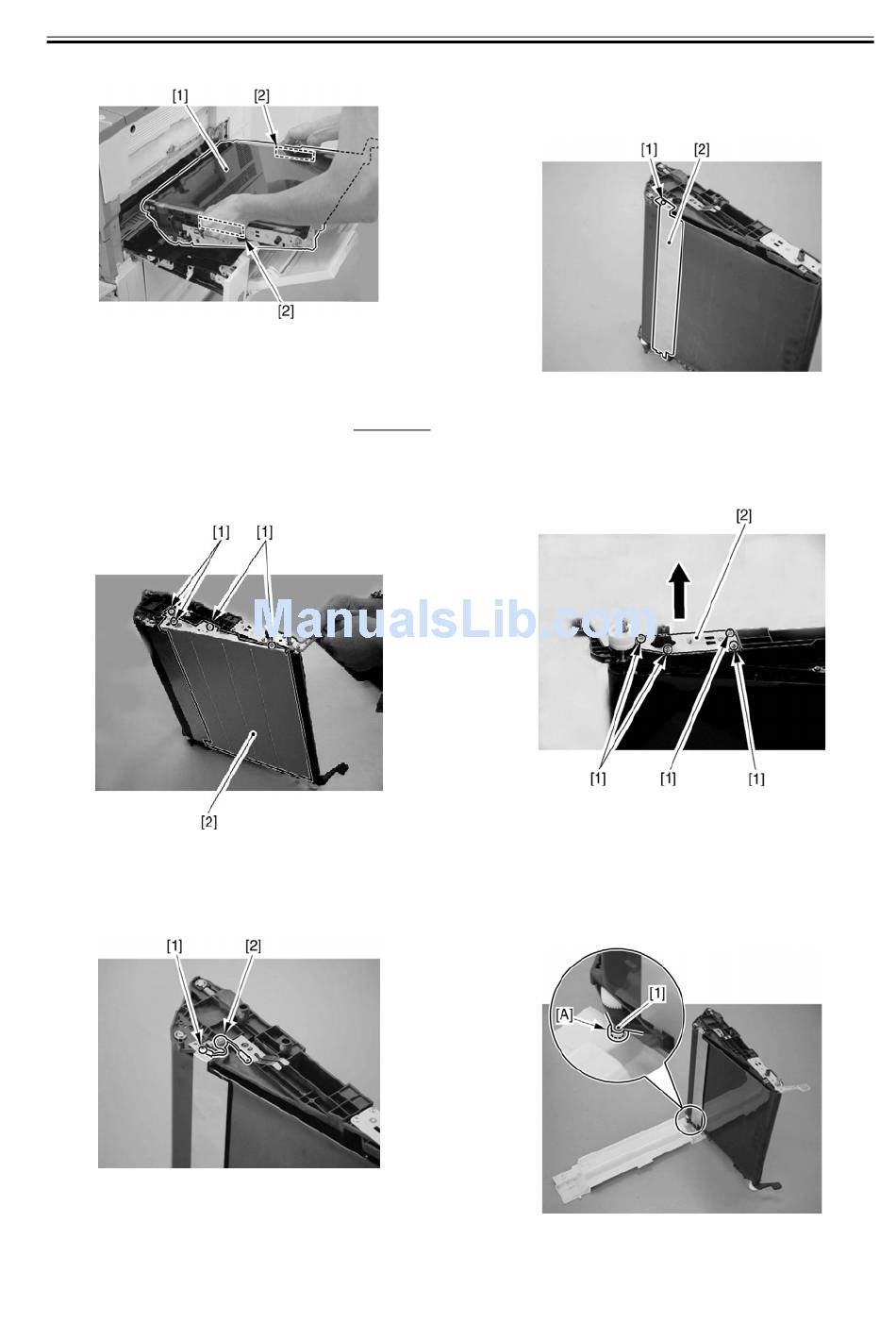

9.8.9.3 Removing
Intermediate Transfer Belt
1) Remove the 4 screws [1], and detach the belt cover
[2].
F-9-145
2) Remove the screw [1], and detach the varistor [2].
F-9-146
the
0000-4522
3) Remove the screw [1], and detach the transfer guide
plate [2].
F-9-147
4) Remove the 4 screws [1] at the rear, and pull out the
link plate (rear) [2].
F-9-148
5) Fit the boss [1] on the frame at the rear into the
recess [A] in the middle right cover so that the unit
is upright.
F-9-149
Chapter 9
9-71
