10.3 Detecting Jams

10.3.1 Delay Jams

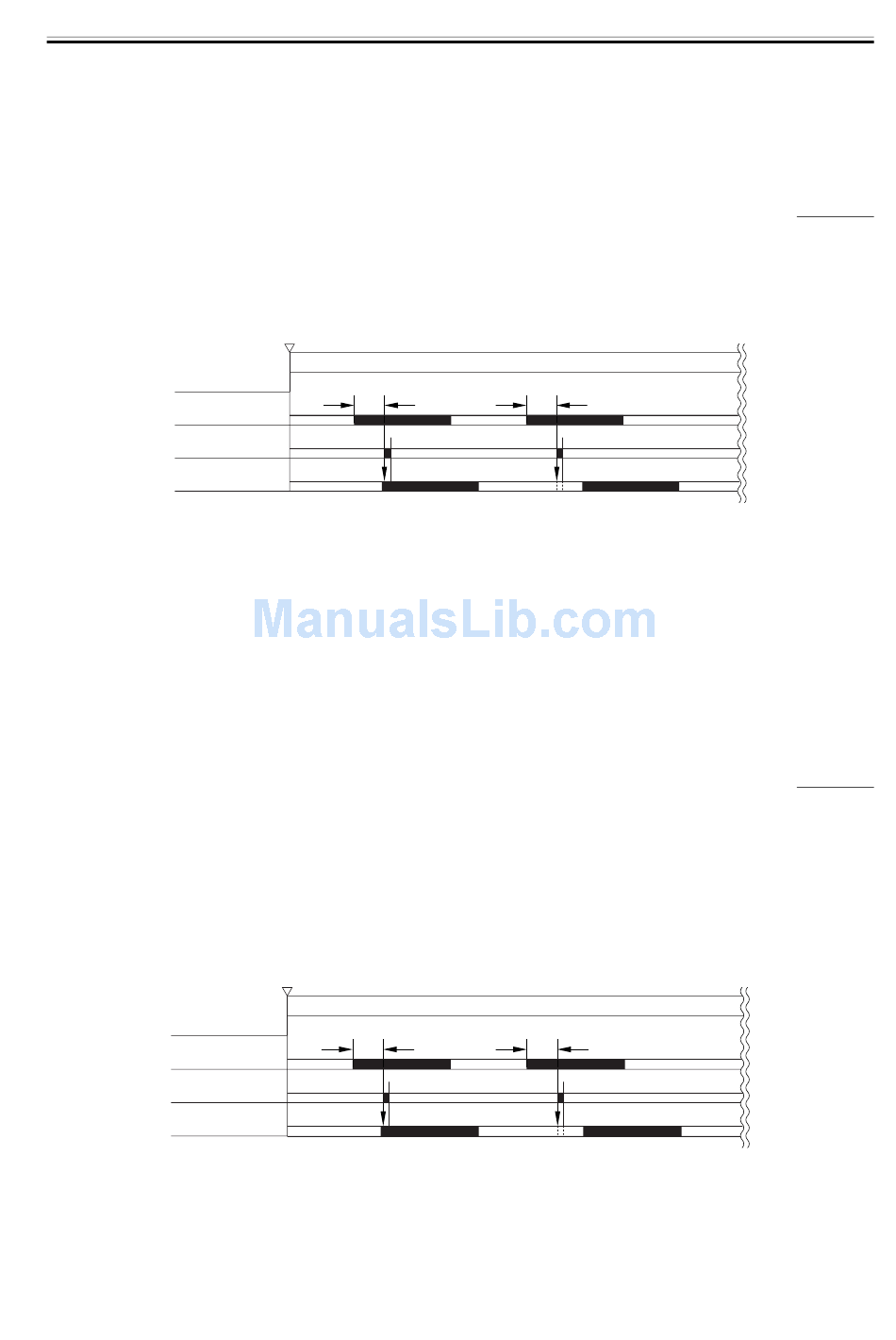

10.3.1.1 Delay Jam in the Cassette Pickup Assembly

The leading edge of paper is not at the sensor within a specific period of time (for feeding) after the motor has gone
ON.
Pickup motor
Jam check
Sensor N
Source
Cassette 1
Cassette 2

10.3.1.2 Delay Jam Outside the Cassette Pickup Assembly

A delay jam occurring outside the cassette pickup assembly is identified at the following timing:
The period of time during which paper is moved form the sensor N-1 to the delay jam sensor N in question is
controlled, and a delay jam will be identified if the delay jam sensor N in question does not go ON within a specific
period of time after the sensor N-1 has gone ON.
Sensor N-1
Jam check
Sensor N
Start key ON
or print start
[1]
Normal
Motor
Pickup motor (M6)
Pickup motor (M7)
Start key ON
or PRINT setting
accepted
[1]
Normal
INTR / PRINT
[1]
F-10-9
T-10-7
Sensor
Cassette 1 retry paper sensor (PS16)
Cassette 2 retry paper sensor (PS17)
INTR / PRINT
[1]
[1]: specific period of feed.
F-10-10
Error
[1]: specific feed time.
Error
Chapter 10
0000-4680
0000-4681
10-9
