Removing The Primary Transfer Roller - Canon iR C3200 Series Service Manual

Chapter 9
F-9-169
3) Check to make sure that the edge [A] of the belt
does not ride over the rib [B] of the tension roller.
[1]
F-9-170

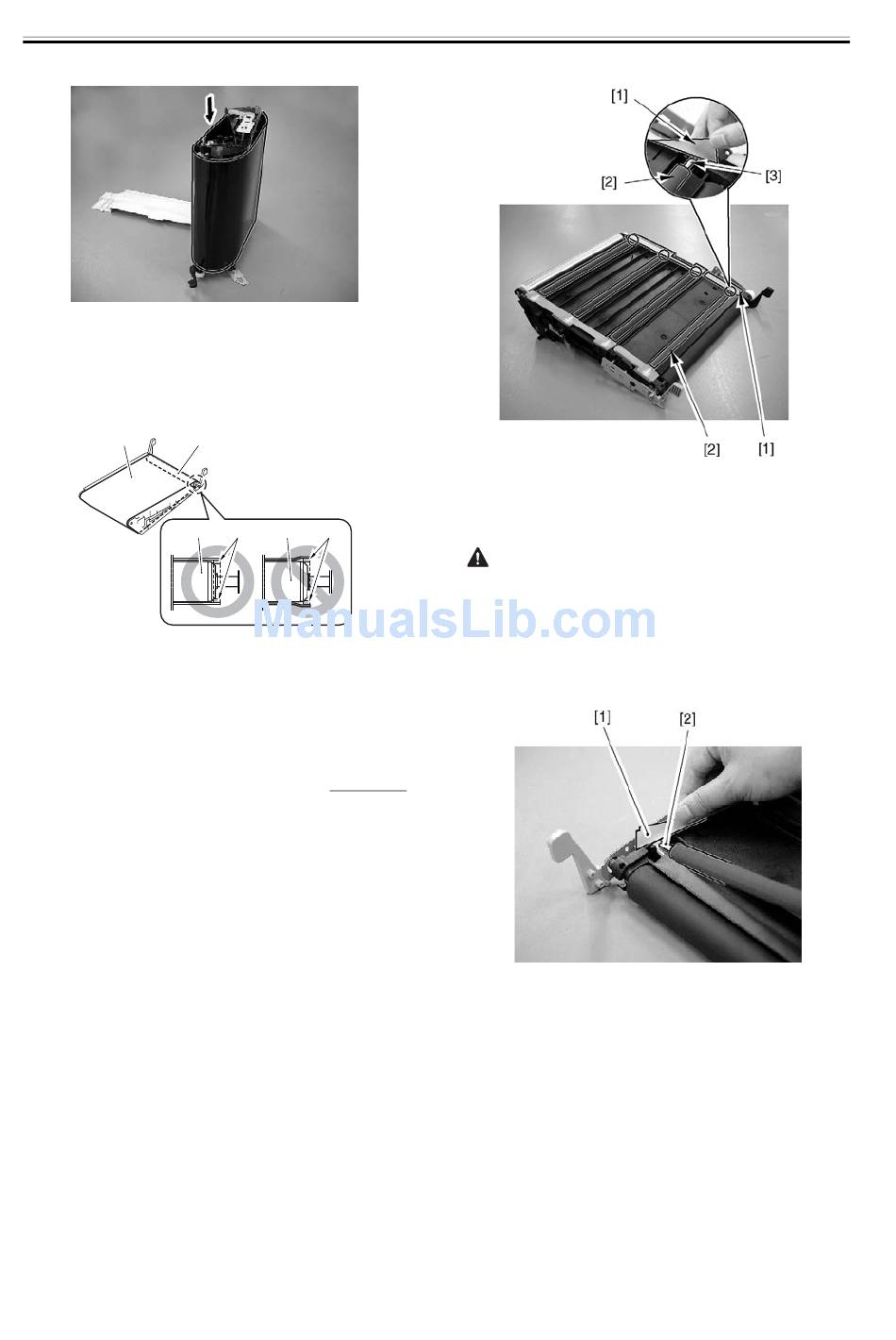

9.8.10.4 Removing the Primary
Transfer Roller
1) Bend over the edge of the sheet [1] at the rear; while
picking the edge [3] of the primary transfer
roller[2], detach it upward.
9-76
[2]
[2] [A] [2] [A]
0000-4653
F-9-171
Points to Note When Mounting the Primary
Transfer Roller
1) Bend over the edge of the sheet [1] at the front, and
fit the edge [2] of the roller and then fit its rear side.
F-9-172
2) Check to make sure that the edge of the sheet [1] is
on the inner side of the rib [2].
