xStack DES-3800 Series Layer 3 Stackable Fast Ethernet Managed Switch CLI Manual
The Switch's MAC address can also be found in the Web management program on the Switch Information (Basic Settings) window
on the Configuration menu.
The IP address for the Switch must be set before it can be managed with the Web-based manager. The Switch IP address can be
automatically set using BOOTP or DHCP protocols, in which case the actual address assigned to the Switch must be known.
The IP address may be set using the Command Line Interface (CLI) over the console serial port as follows:
1. Starting at the command line prompt, enter the commands config ipif System ipaddress xxx.xxx.xxx.xxx/yyy.yyy.yyy.yyy.
Where the x's represent the IP address to be assigned to the IP interface named System and the y's represent the
corresponding subnet mask.
2. Alternatively, you can enter config ipif System ipaddress xxx.xxx.xxx.xxx/z. Where the x's represent the IP address to be
assigned to the IP interface named System and the z represents the corresponding number of subnets in CIDR notation.
The IP interface named System on the Switch can be assigned an IP address and subnet mask which can then be used to connect a
management station to the Switch's Telnet or Web-based management agent.
In the above example, the Switch was assigned an IP address of 10.53.13.83 with a subnet mask of 255.0.0.0. The system message
Success indicates that the command was executed successfully. The Switch can now be configured and managed via Telnet, SNMP
MIB browser and the CLI or via the Web-based management agent using the above IP address to connect to the Switch.

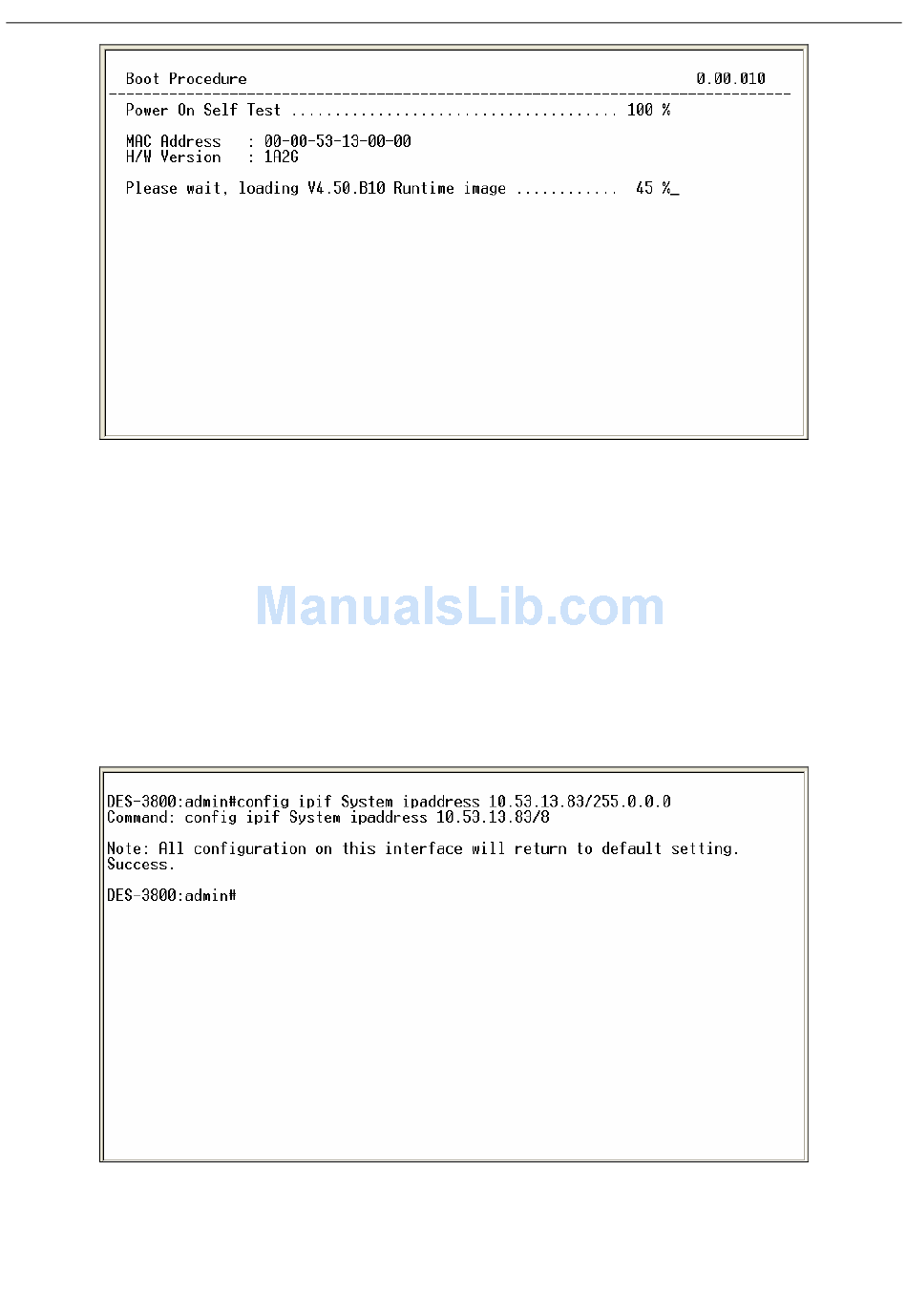

Figure 1-2. Boot Screen
Figure 1-3. Assigning an IP Address
2
