How To Remove / Re-Install The Top Access Door Right Latch - Magtek ExpressCard 2000 Hardware Service Manual

5 - Removal and Re-installation
5.6

How to Remove / Re-install the Top Access Door Right Latch

Approximate time to remove: 2 minutes plus any sub-procedures
Approximate time to re-install: 5 minutes plus any sub-procedures
The top access door's right latch assembly is attached to the top cover just above the hopper windows. It
serves two purposes:

It holds the top access door closed when the device is locked.

Its solenoid is connected to the electronics in the device and allows the user to open the top access
door using the touchscreen.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

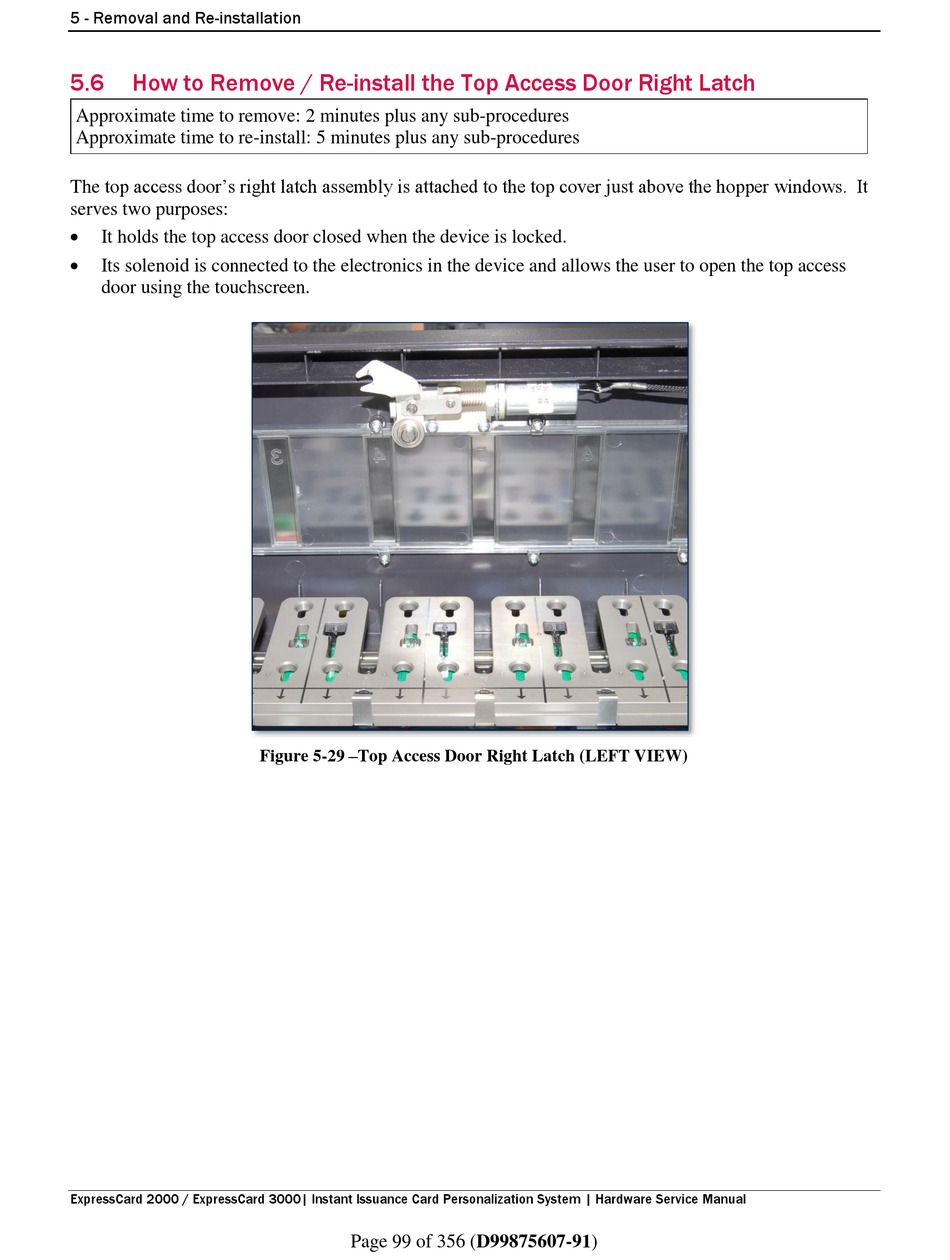

Figure 5-29 –Top Access Door Right Latch (LEFT VIEW)
Page 99 of 356 (D99875607-91)
