5 - Removal and Re-installation

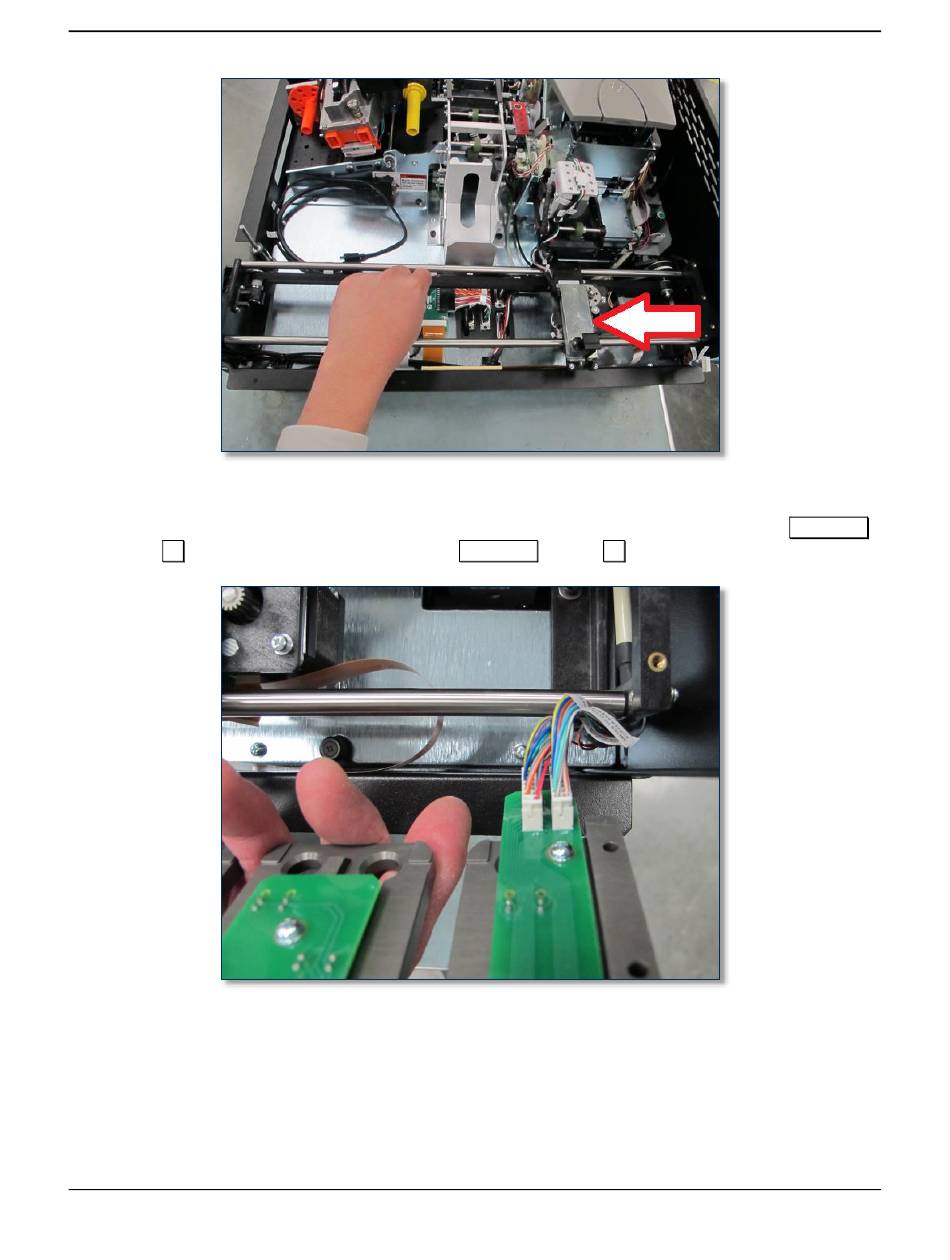

39) Hold the hopper deck plate next to the hopper transport module. Re-connect the two sensor cables
near the rear of the hopper transport module into the two plugs on the circuit board. Make sure they
are re-connected the same way as when you disconnected them earlier. The cable labeled
goes to on the board, and the cable labeled
J2
40) Flip the hopper deck plate over toward the device and lay it in place, lining up the five screw holes in
the deck plate with the five screw holes in the hopper module end plates.
41) Use the 5/64" hex wrench to re-install 5 ea. screw 46500187 that hold the hopper deck plate to the
hopper module.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
...to J1...
Page 141 of 356 (D99875607-91)
goes to on the board.
J1
...to J2...
