5.11 How to Remove / Re-install the Image Printer Card Cleaning Roller
(EC2000 with ECP1)
Approximate time to remove: 2 minutes plus any sub-procedures
Approximate time to re-install: 4 minutes plus any sub-procedures
EC2000's card cleaning roller, located below the image printer's ribbon, removes lint and other particles
from the surfaces of card stock before printing. If a cleaning roller is damaged or worn, it should be
replaced.
To replace the card cleaning roller, follow these steps:
1) Obtain a replacement card cleaning roller.
2) Open EC2000's top access door (see D99875600 ExpressCard 2000 Installation and Operation
Manual).
3) Open the image printer and remove the ribbon (see D99875600 ExpressCard 2000 Installation
and Operation Manual).
4) Remove the card cleaning roller and discard it (see Figure 5-55).
5) Install the new card cleaning roller in the image printer.
6) Re-install the ribbon and close the image printer (see D99875600 ExpressCard 2000 Installation
and Operation Manual).
7) Close EC2000's top access door.
8) On the touchscreen, navigate to
functions properly and the sample looks correct. If the sample does not look correct (e.g., images do
not print correctly), contact MagTek Support Services for assistance.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

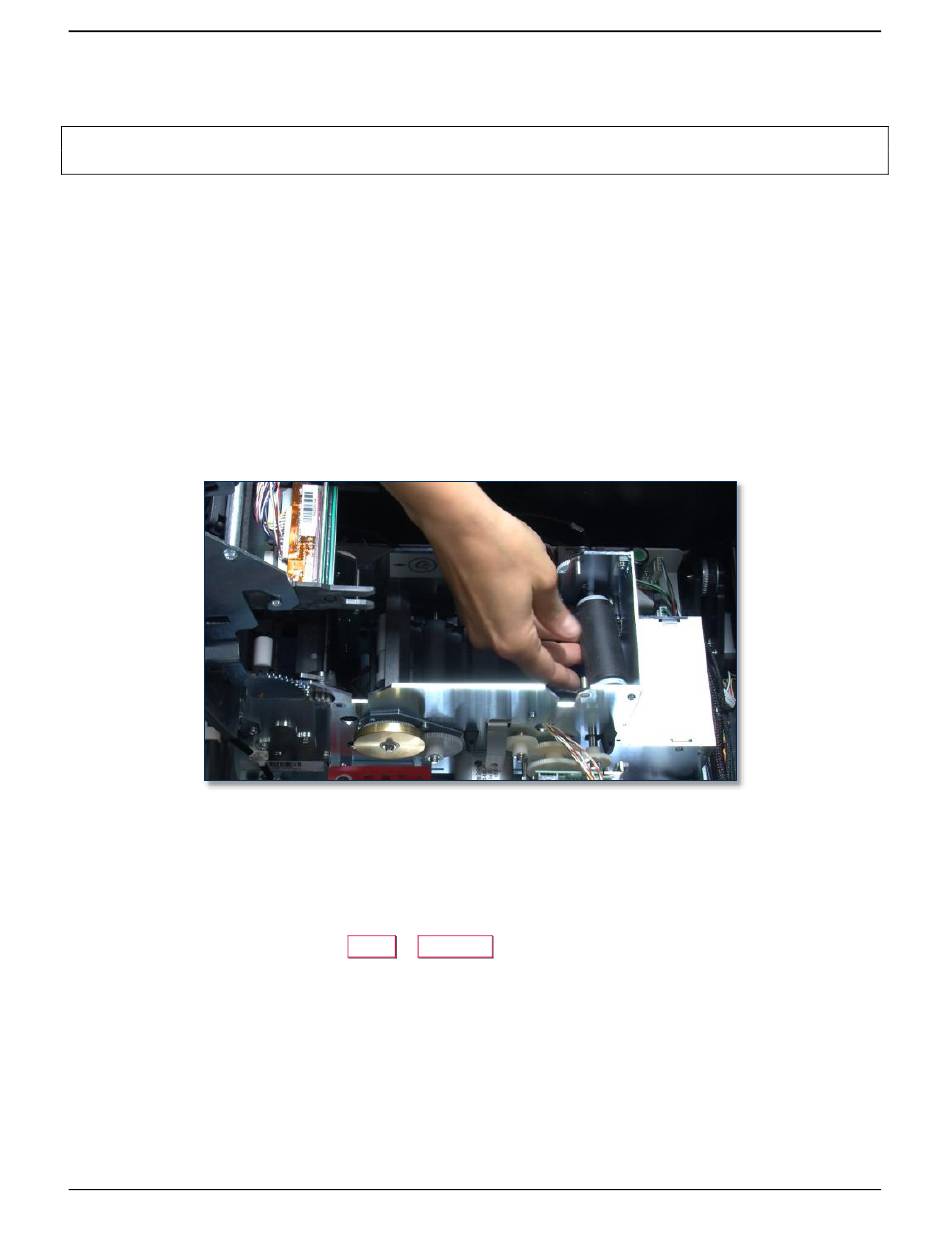

Figure 5-55 - Removing the Card Cleaning Roller
>
