5 - Removal and Re-installation

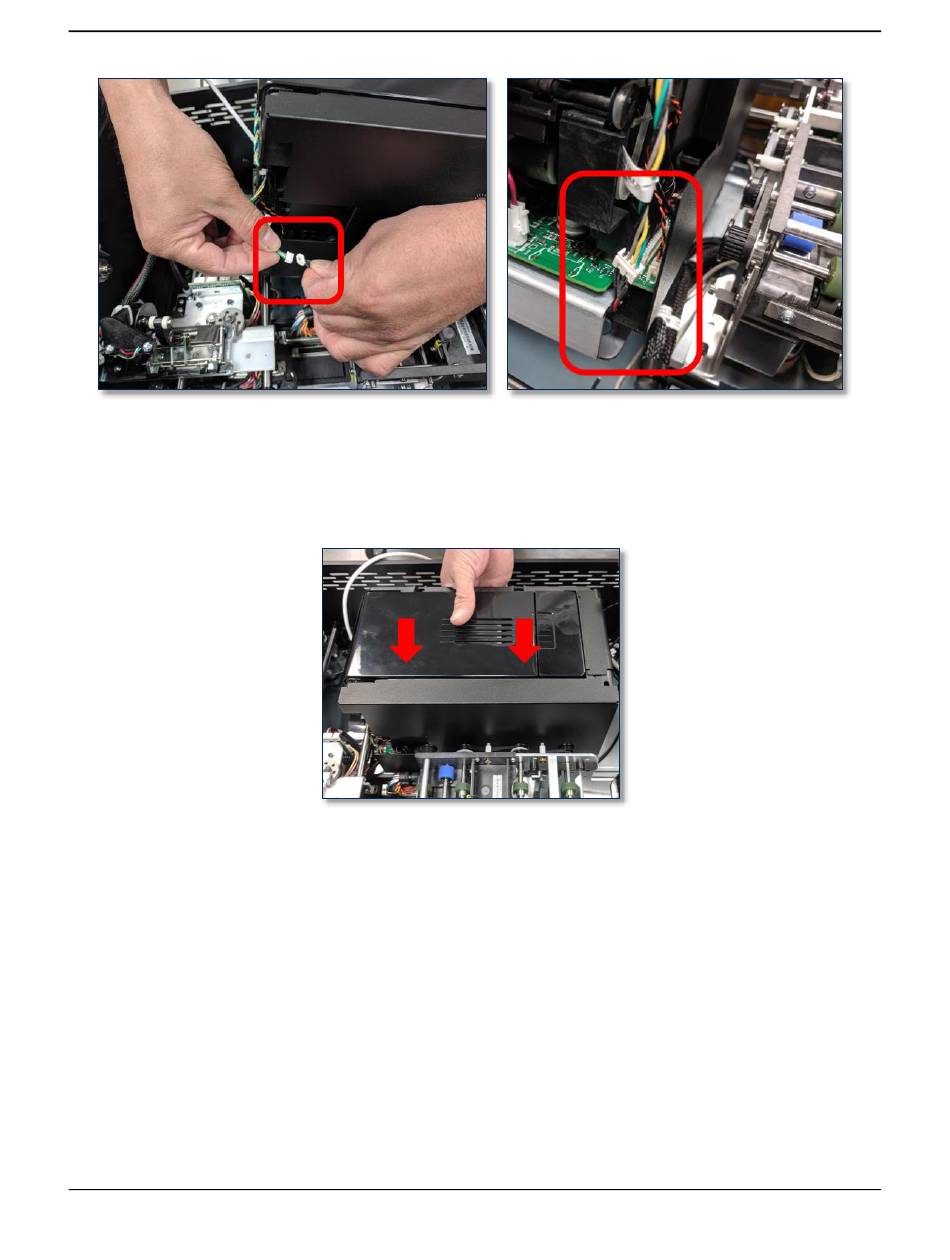

9) Line up the keyed holes on the bottom of the image printer with the screws in the top deck. The
image printer drops down onto them when it is placed correctly, and its base plate drops completely
flat against the top deck plate.
10) Push the image printer all the way toward the front of the device to lock it in place. It is very
important to push both sides as far forward as possible for proper alignment.
11) Continue to hold the image printer as far forward as possible, and use the 1/8" hex wrench to re-
install the screw and washer that hold the rear of the image printer to the top deck plate to lock it in
position, then stop holding it toward the front.
