Magtek ExpressCard 2000 Hardware Service Manual page 151

5 - Removal and Re-installation

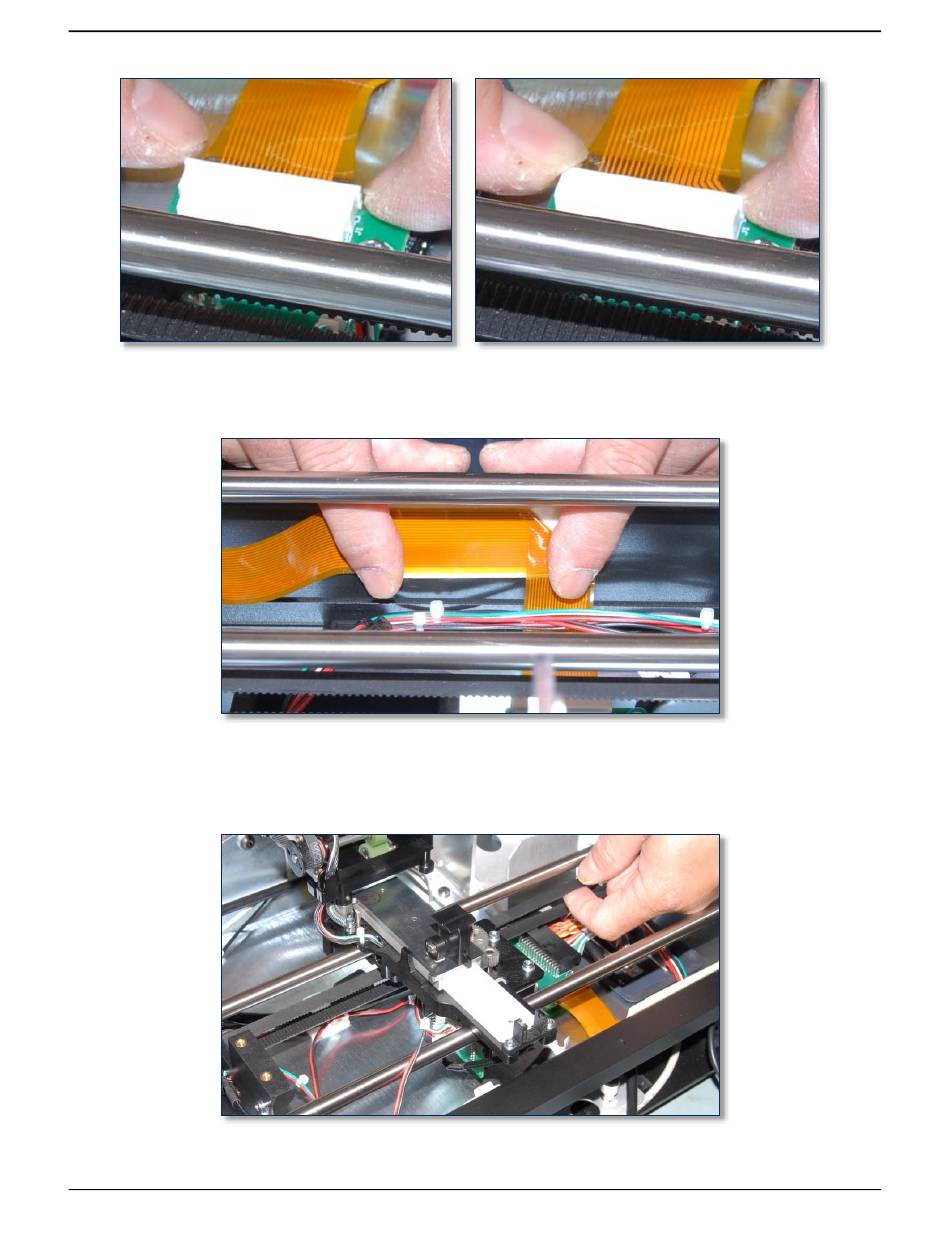

Figure 5-46 - Lock the Flex Cable Connector (LEFT TOP VIEW)
5) Use the foam tape to mount the long leg of the flex cable to the right side of the case as shown.
6) Pull on the drive belt to move the hopper shuttle toward the front of the device. Do not pull directly
on the hopper shuttle or you may cause irreparable damage.
7) Stick 3/8" of double-stick tape to the hopper motor, vertically centered on the flex cable connector, as
shown.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Figure 5-47 - Mount Flex Cable to Case (LEFT VIEW)
Page 151 of 356 (D99875607-91)
