5 - Removal and Re-installation

5.17.3 Re-install

To re-install the image print head, follow these steps:

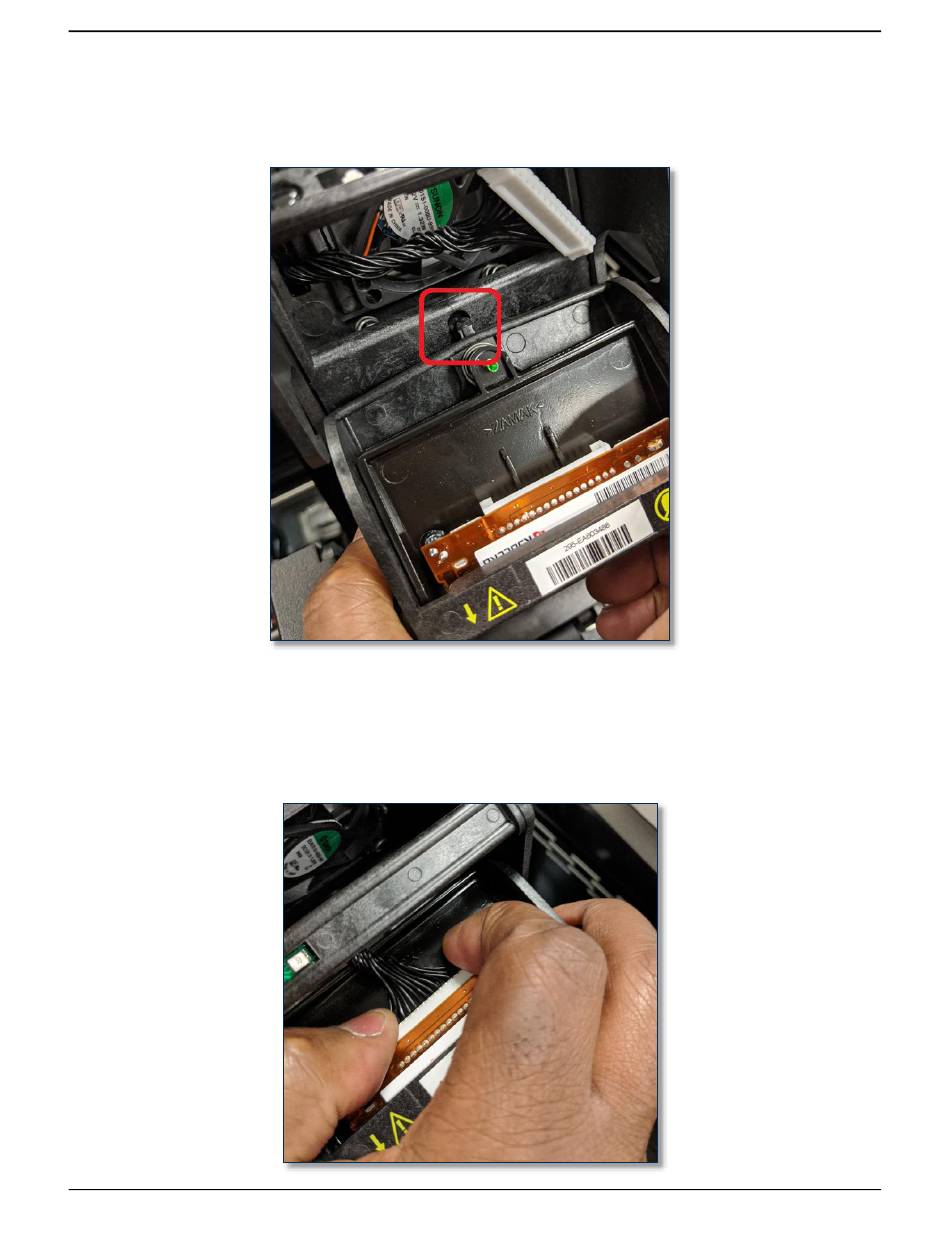

1) Line up the tongue of the new print head with the groove in its installation location.
2) Reverse the process you used to remove the original head to install the new one by re-engaging the
print head with the two hooks. You should feel it click into place.
3) Connect the new print head cable the way the original print head was connected (see Figure 5-61),
making sure it is facing the right way.
4) Press gently on each side of the connector to make sure it is firmly connected.
