5 - Removal and Re-installation

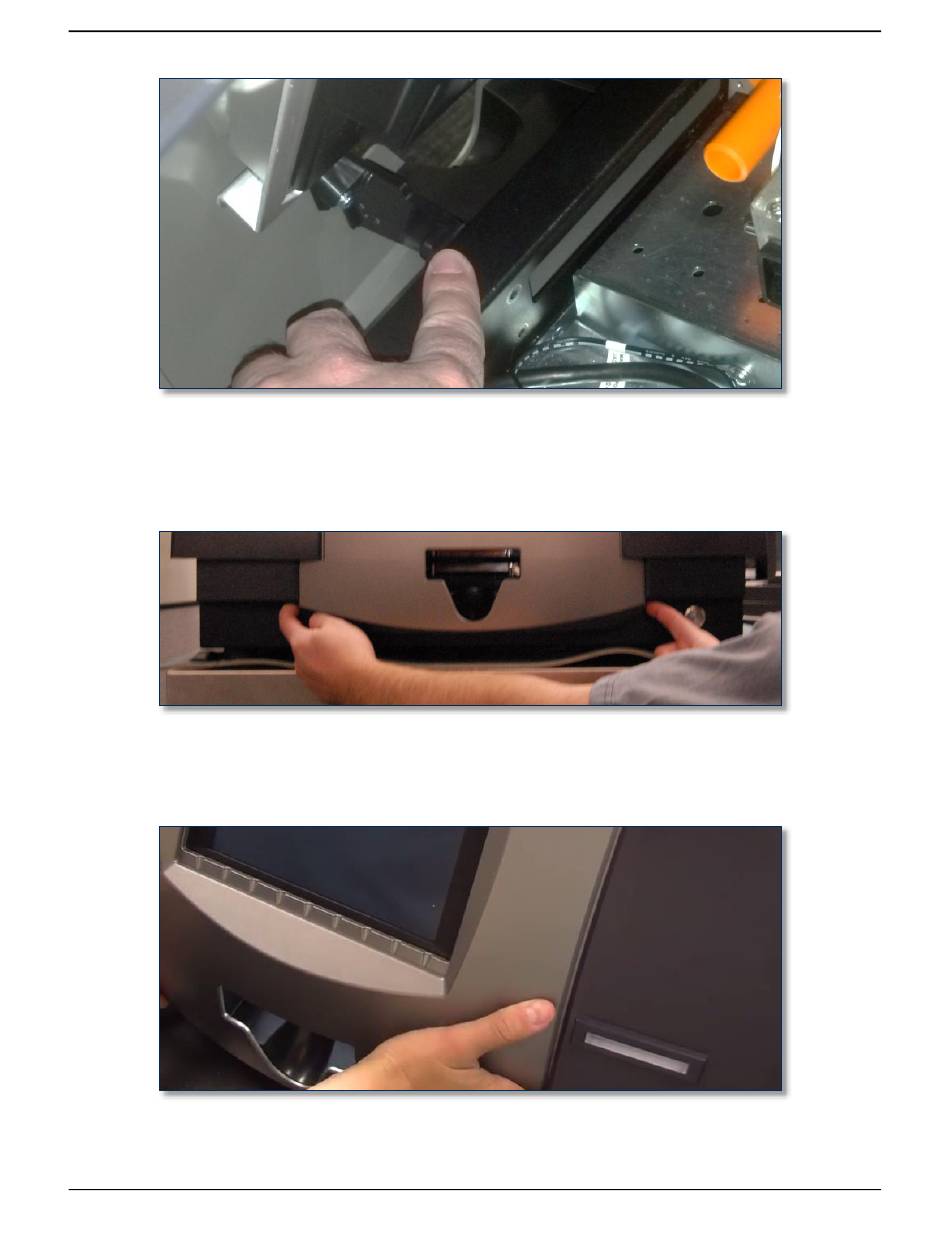

Figure 5-18 - Card Output Bin Touching Device's Base (REAR RIGHT VIEW)
9) Crouch in front of the device. Put a finger on each side of the lowest straight sides of the silver
portion of the cover (see Figure 5-19). Squeeze each side inward carefully, and press toward the rear
of the device until the base of the device "captures" them.
Figure 5-19 - Fitting the Silver Portion of the Cover (FRONT VIEW)
10) "Bump" the front of the silver portion of the cover (just to the right of the card output bin) with the
palm of your hand to firmly seat the cover in place.
11) Looking from the inside of the device, make sure the silver portion of the cover is solidly seated in
the slot in the base, and that the darker portion of the cover is properly seated above it. See Figure
5-20 for reference.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
