5 - Removal and Re-installation

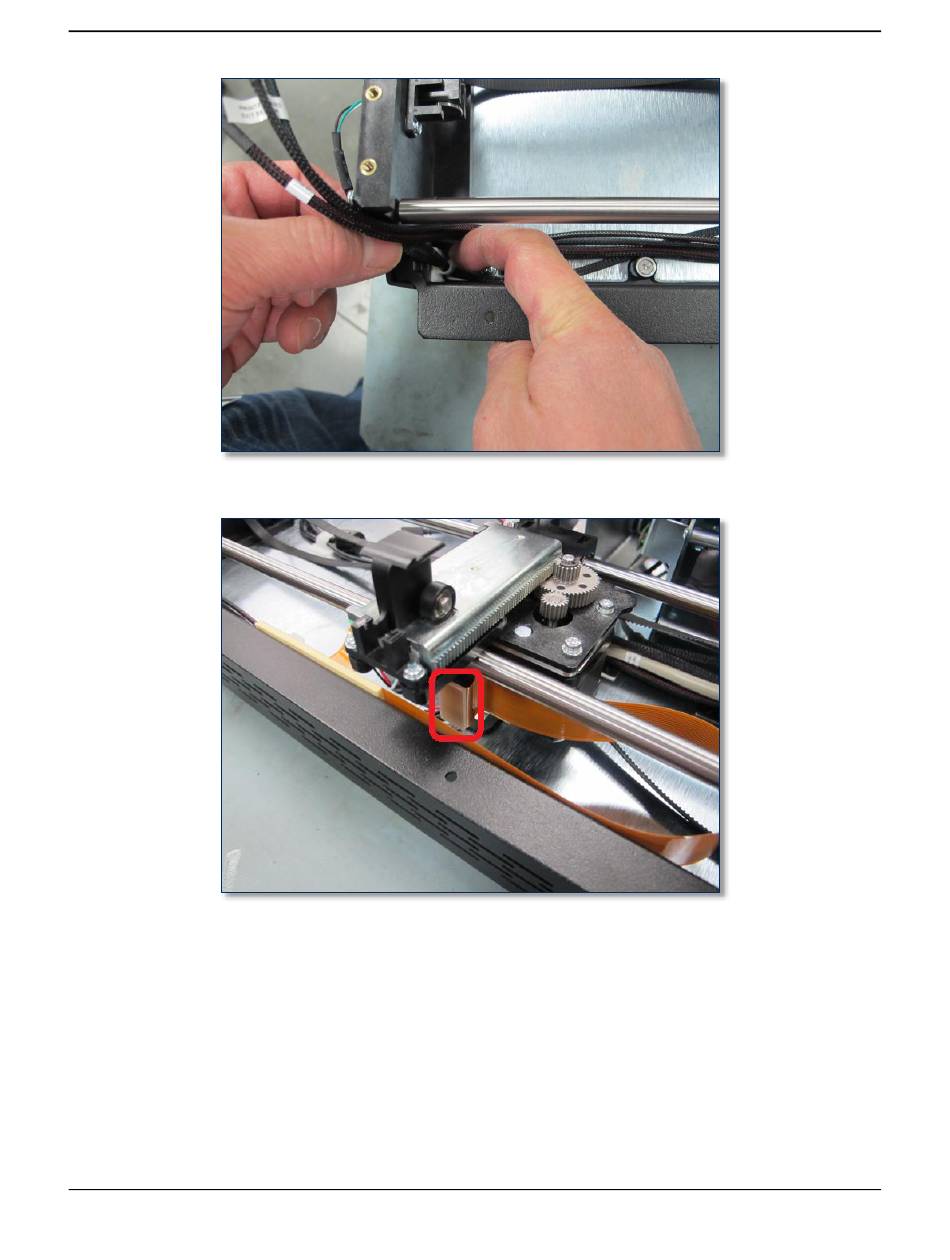

17) Trace the hopper module flex cable to its connector on the hopper shuttle.
18) Disconnect the flex cable from the hopper shuttle. It may require both hands to apply enough force,
because the hopper shuttle obstructs direct access.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 117 of 356 (D99875607-91)
