5 - Removal and Re-installation

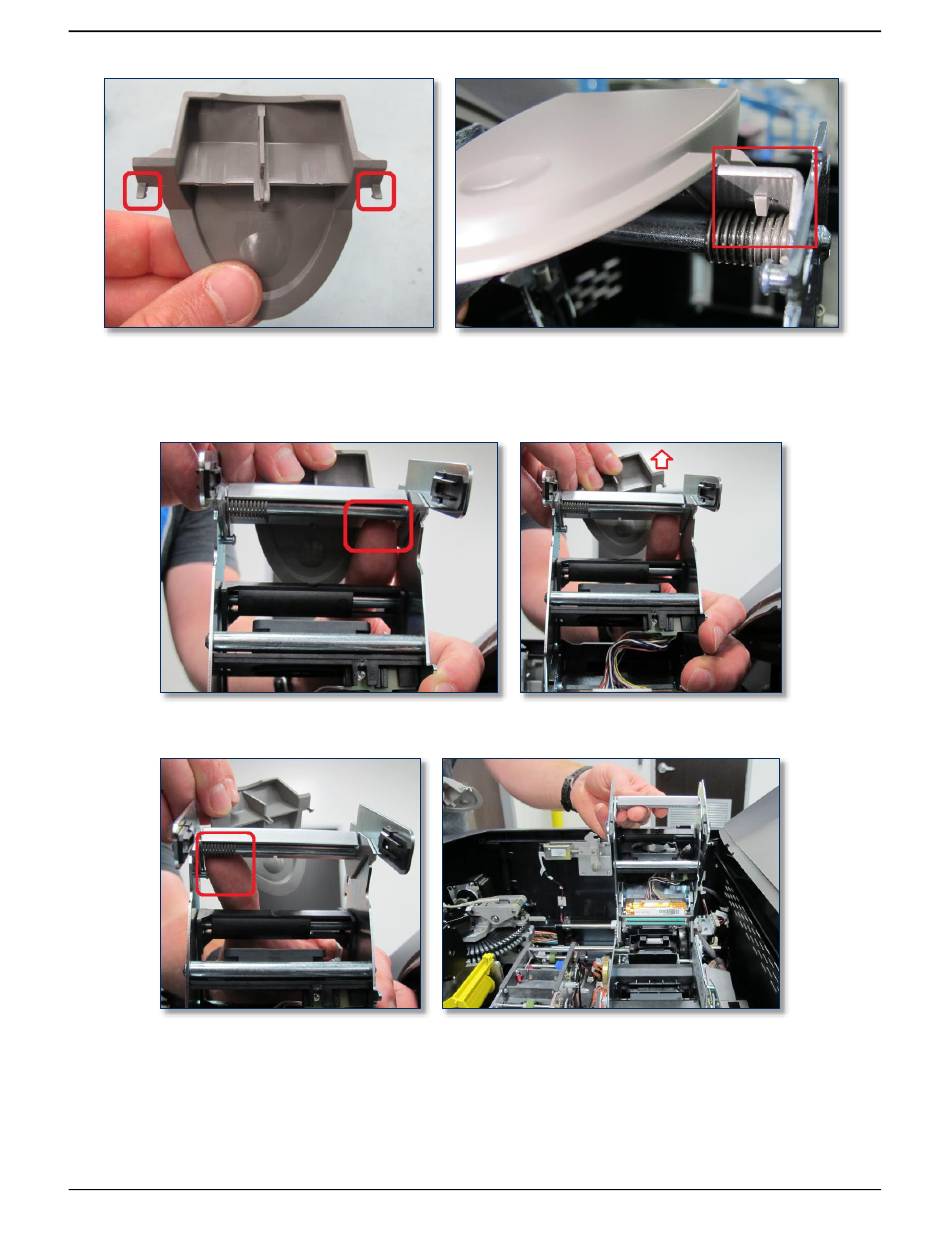

11) Go to the other side of the image printer and hold the lid open with one hand.
12) Use your thumb to push one of the button's hooks forward and release it from the sheet metal, and
very gently lift that side of the release button just until the hook is clear of the hole.
13) Repeat the same process for the other hook and remove the button. Gently lower the lid.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 169 of 356 (D99875607-91)
