5 - Removal and Re-installation

5.3.2 Remove

Follow these steps to remove the cover:
1) Prepare the device for replacing parts by following the steps in section 5.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected and the hopper shuttle parked near the front of the device.
2) Remove the top access door by following the steps in section 5.5 How to Remove / Re-install the
Top Access Door, including safely powering down and disconnecting external cables.
3) Remove the magnetic stripe reader by following the steps in section 5.35 How to Remove / Re-
install the Magnetic Stripe Reader (MSR) Module.
4) Make sure the hopper shuttle was properly parked during preparation. It must be out of the way of all
hoppers.
5) Remove all the card stock hoppers from the device and set them aside.
6) Disconnect the BEZEL LED signal cable from the inside of the manual feed slot.
7) Disconnect the Exception Card Entry sensor cable in the front right corner of the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual

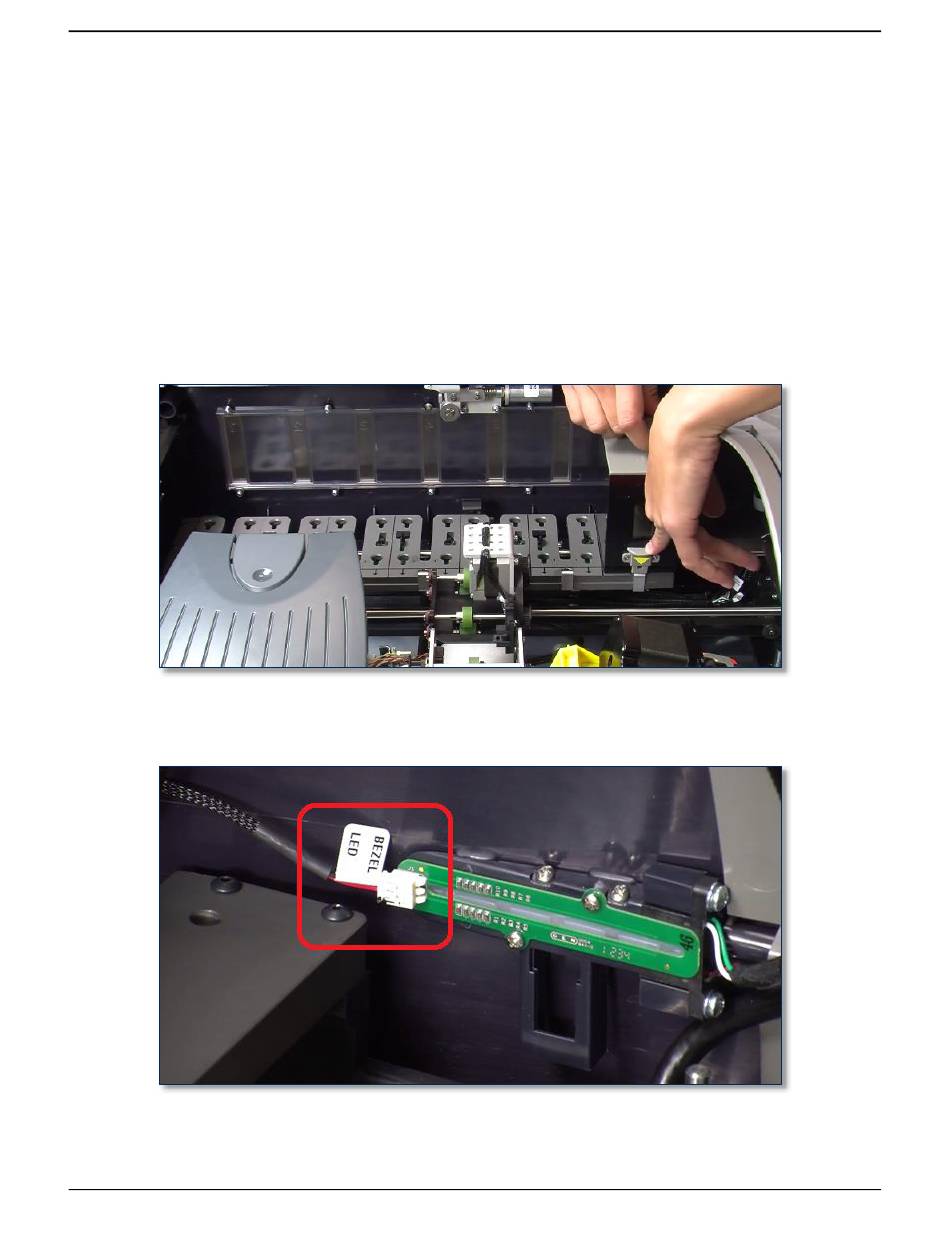

Figure 5-2 - Removing Card Stock Hoppers (LEFT VIEW)
Figure 5-3 - Bezel LED Signal Cable (REAR VIEW)
Page 79 of 356 (D99875607-91)
