5 - Removal and Re-installation

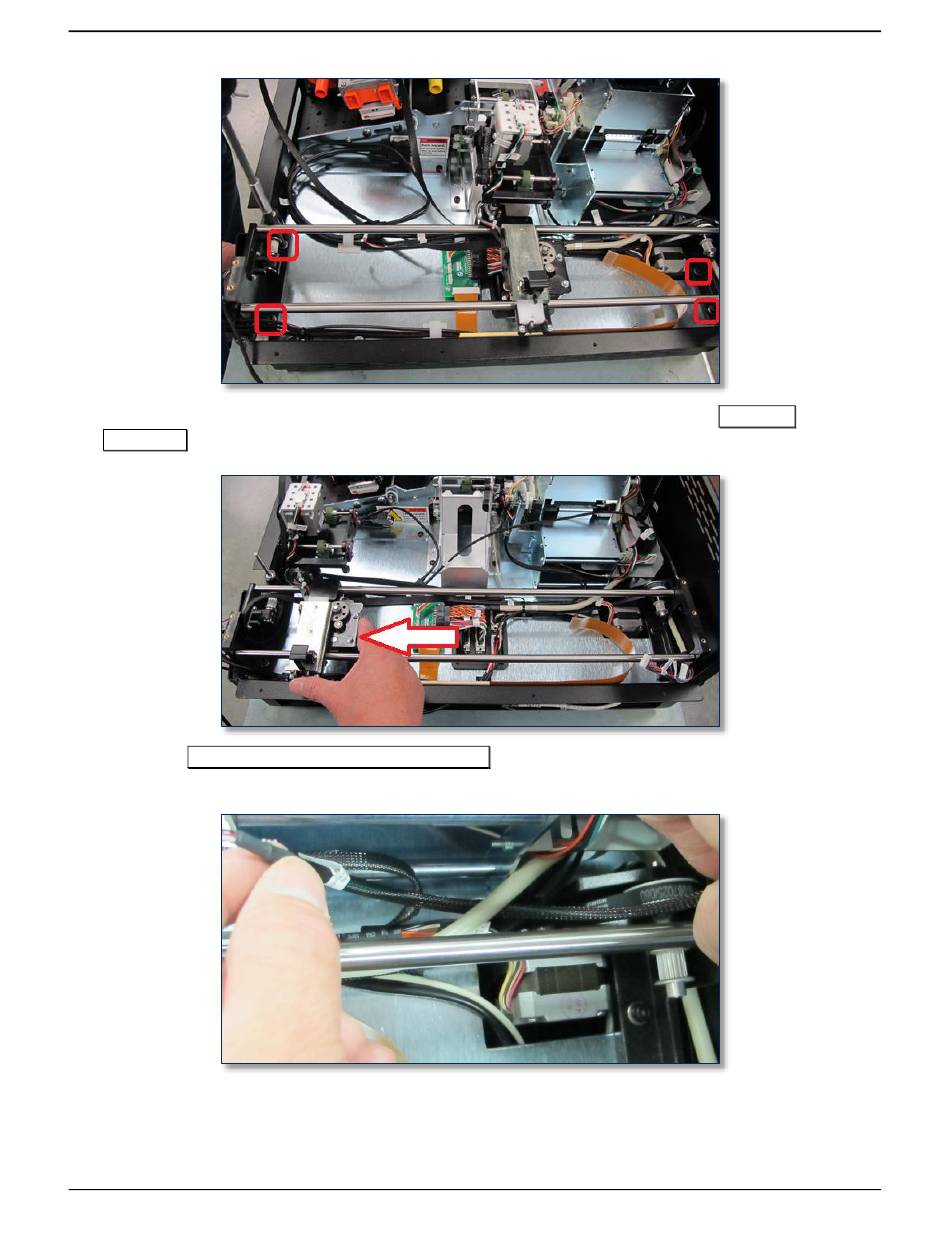

15) Move the hopper shuttle toward the front of the device to give easy access to the
circuit board and cables.
SHUTTLE
16) Locate the HOPPER SHUTTLE HOME SENSOR
module. Thread it under the thick, light-colored cable near the image printer.
17) Route the cable along the rear wall of the device and tuck it below the shielding around the image
printer, then route the free end toward the front of the device.
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
cable that comes from the rear of the hopper
Page 130 of 356 (D99875607-91)
HOPPER
