5 - Removal and Re-installation

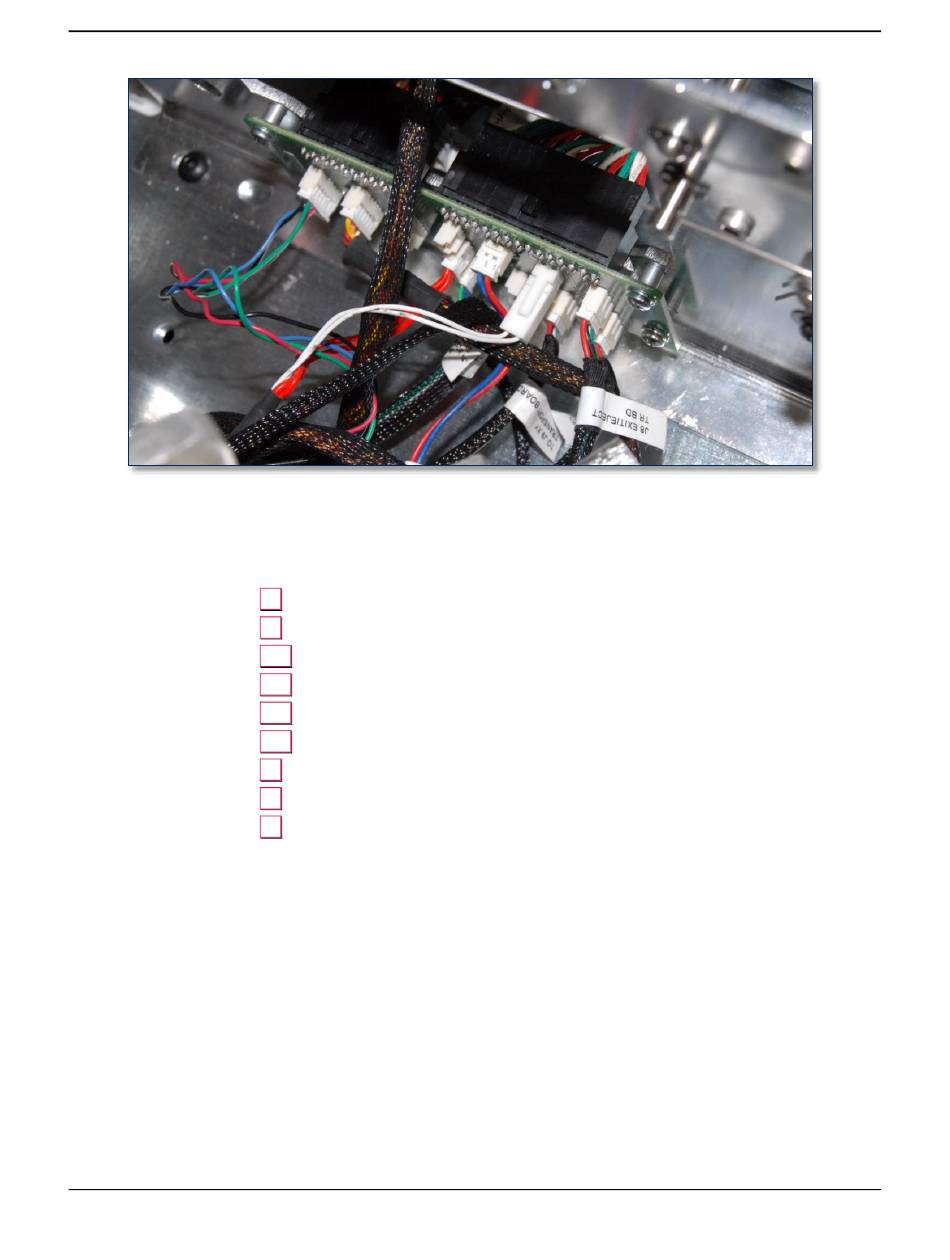

Figure 5-113 – Circuit Board Behind Tipper and Exit Ramp Module (TOP VIEW FROM FRONT)
15) Disconnect the following connectors from the circuit board behind the tipper, working from the left
side of the device to the right side. Use Figure 5-114 as a reference, and keep track of which cable
connected to which connector:
a) From connector
b) From connector
c) From connector
d) From connector
e) From connector
f) From connector
g) From connector
h) From connector
i) From connector
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
J4
on the board, disconnect the Tipper Foil Advance Motor cable.
on the board, disconnect the Tipper Cog Grip Motor cable.
J3
J15
on the board, disconnect the Tipper RTD cable.
on the board, disconnect the Tipper Heater cable.
J14
J17
on the board, disconnect the Tipper Foil Advance Hall Sensor cable.
on the board, disconnect the Exit Fan cable.
J12
J8
on the board, disconnect the Tipper Card Grip Sensor cable.
on the board, disconnect the Tipper Cam Home Sensor cable.
J7
on the board, disconnect the Tipper Card Exit Sensor cable.
J9
