5 - Removal and Re-installation
5.25 How to Remove / Re-install the Tipper Module
Prepare device for removing / reinstalling modules
Remove the top access door and cover
Remove the tipper module
Reverse to re-install the tipper module
Re-install cover and top access door
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 30 minutes plus any sub-procedures
ExpressCard 2000 / ExpressCard 3000| Instant Issuance Card Personalization System | Hardware Service Manual
High-level Steps

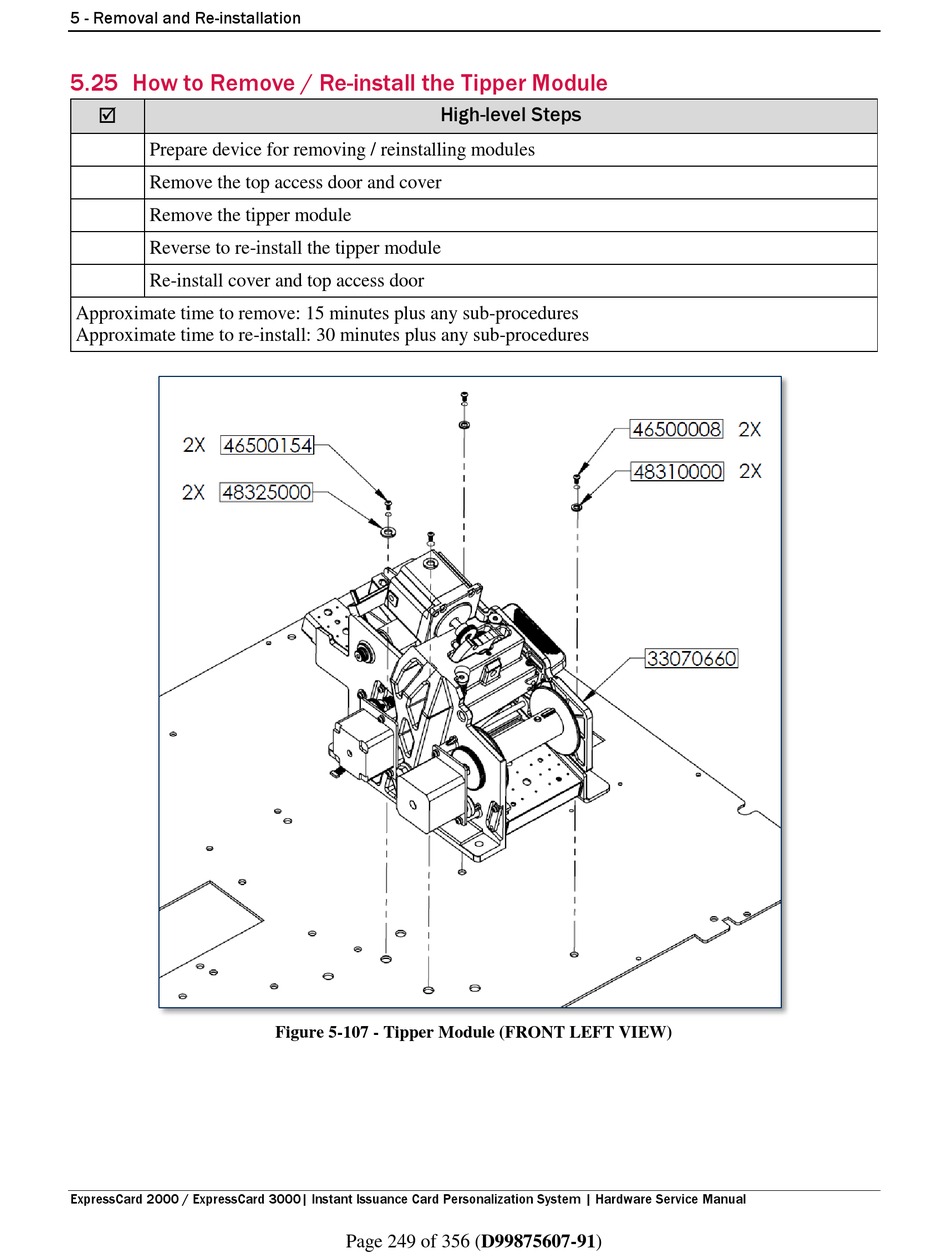

Figure 5-107 - Tipper Module (FRONT LEFT VIEW)
Page 249 of 356 (D99875607-91)
